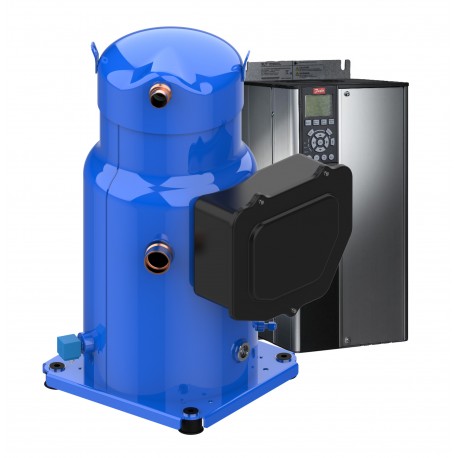

120G0003 DANFOSS REFRIGERATION Scroll compressor, Inverter, VSH170AGANA, Refrigerant: R410A, Segment usage: .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

120G0003 DANFOSS REFRIGERATION Scroll compressor, Inverter, VSH170AGANA, Refrigerant: R410A, Segment usage: ..

120G0003

DANFOSS REFRIGERATION

Scroll compressor, Inverter, VSH170AGANA, Refrigerant: R410A, Segment usage: Air conditioning, Compressor power supply [V/Ph/Hz]: 380-480/3/50-60

Scroll compressor, VSH170AGANA

More details


Home > DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

Total: $7,301.94
Unit price: $7,301.94
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Refrigerants: R410A, Segment usage: Air conditioning, Compressor power supply [V]: 380-480/3/50-60, Packing format: Single pack

Product details

Gross weight125.5 Kilogram
Net weight110.17 Kilogram
Volume189.52 Liter
EAN5702428664875
TypeVSH170
Product groupHermetic compressors
Product Name DescriptionScroll compressor VSH
Gross weight125.5 Kilogram
Net weight110.17 Kilogram
Volume189.52 Liter
EAN5702428664875
TypeVSH170
Product groupHermetic compressors
Product Name DescriptionScroll compressor VSH

ApprovalCE
UL
UKCA
Brand techniqueScroll compressor
Capacity controlInverter
CE evaluatedYes
China RoHS complianceYes with exemptions
China RoHS exemption clause7.1
7.3
8.1
8.3.1
ColourBlue
Compressor power supply [V]380-480/3/50-60
Configuration codeSingle
Connection typeBrazed
Contains batteriesNo
DescriptionVSH170-G
Diameter [mm]318 mm
Discharge connection height [mm]645 mm
Discharge connection pipe size [in]1 1/8 in
Discharge connection size [in]1 1/8 in
Drawing number8551174b
EconomizerNo
EU RoHS complianceYes with exemptions
EU RoHS exemption clause7(c)-I
6(a)
6(a)-I
6(c)
7(a)
FamilyVSH
Fitting standardODF
Frequency [Hz]30 - 90
Gauge port HPNone
Gauge port LPSchrader
Glass mountingThreaded
Glass torque [Nm]50 N-m
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume2.9 L
High value of nominal voltage at 50Hz [V]480 V
High value of nominal voltage at 60Hz [V]480 V
High value of voltage range at 50Hz [V]528 V
High value of voltage range at 60Hz [V]528 V
IDVNo
In scope of WEEENo
IP protection classIP54 (with cable gland)
Low Side TS Max51 °C
Low Side TS Min-35 °C
Low Side Volume28.7 L
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]380 V
Low value of voltage range at 50Hz [V]342 V
Low value of voltage range at 60Hz [V]342 V
LRA346 A
Max pressure (PS) - high side48.7 bar
Max pressure (PS) - low side30.2 bar
MMT71.6 A
Model numberVSH170AGANA
Motor protectionMotor protection by frequency converter
Mounting torque [Nm]21 N-m
Network power supply [V/Ph/Hz]380-415/3/50 460/3/60
Number of starts per hour [Max]12
Oil charge [L]6.7 L
Oil drain1/4'' flare
Oil drain torque [Nm]35 N-m
Oil equalization2-1/4'' Rotolock
Oil level switch portNo
Oil reference160SZ
Oil typePOE
Packing formatSingle pack
Packing quantity1
Phase3
Power connectionsScrew 4.8 mm
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]13.5 kg
RefrigerantsR410A
RLA57.3 A
Rotational speed at 50Hz [rpm]3000 rpm
Rotational speed at 60Hz [rpm]3600 rpm
Segment usageAir conditioning
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]329 mm
Suction connection material-
Suction connection pipe size [in]1 5/8 in
Suction connection size [in]1 5/8 in
Swept volume [cm3]170.2 cm³
TechnologyScroll
Test dif [bar] [Max]37 bar
Test HP [bar] [Max]45 bar
Test LP [bar] [Max]30.2 bar
Torque earth [Nm]2 N-m
Torque power [Nm]3 N-m
Total height [mm]687 mm
UL evaluatedYes
Viscosity [cP]32 cP
ApprovalCE
UL
UKCA
Brand techniqueScroll compressor
Capacity controlInverter
CE evaluatedYes
China RoHS complianceYes with exemptions
China RoHS exemption clause7.1
7.3
8.1
8.3.1
ColourBlue
Compressor power supply [V]380-480/3/50-60
Configuration codeSingle
Connection typeBrazed
Contains batteriesNo
DescriptionVSH170-G
Diameter [mm]318 mm
Discharge connection height [mm]645 mm
Discharge connection pipe size [in]1 1/8 in
Discharge connection size [in]1 1/8 in
Drawing number8551174b
EconomizerNo
EU RoHS complianceYes with exemptions
EU RoHS exemption clause7(c)-I
6(a)
6(a)-I
6(c)
7(a)
FamilyVSH
Fitting standardODF
Frequency [Hz]30 - 90
Gauge port HPNone
Gauge port LPSchrader
Glass mountingThreaded
Glass torque [Nm]50 N-m
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume2.9 L
High value of nominal voltage at 50Hz [V]480 V
High value of nominal voltage at 60Hz [V]480 V
High value of voltage range at 50Hz [V]528 V
High value of voltage range at 60Hz [V]528 V
IDVNo
In scope of WEEENo
IP protection classIP54 (with cable gland)
Low Side TS Max51 °C
Low Side TS Min-35 °C
Low Side Volume28.7 L
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]380 V
Low value of voltage range at 50Hz [V]342 V
Low value of voltage range at 60Hz [V]342 V
LRA346 A
Max pressure (PS) - high side48.7 bar
Max pressure (PS) - low side30.2 bar
MMT71.6 A
Model numberVSH170AGANA
Motor protectionMotor protection by frequency converter
Mounting torque [Nm]21 N-m
Network power supply [V/Ph/Hz]380-415/3/50 460/3/60
Number of starts per hour [Max]12
Oil charge [L]6.7 L
Oil drain1/4'' flare
Oil drain torque [Nm]35 N-m
Oil equalization2-1/4'' Rotolock
Oil level switch portNo
Oil reference160SZ
Oil typePOE
Packing formatSingle pack
Packing quantity1
Phase3
Power connectionsScrew 4.8 mm
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]13.5 kg
RefrigerantsR410A
RLA57.3 A
Rotational speed at 50Hz [rpm]3000 rpm
Rotational speed at 60Hz [rpm]3600 rpm
Segment usageAir conditioning
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]329 mm
Suction connection material-
Suction connection pipe size [in]1 5/8 in
Suction connection size [in]1 5/8 in
Swept volume [cm3]170.2 cm³
TechnologyScroll
Test dif [bar] [Max]37 bar
Test HP [bar] [Max]45 bar
Test LP [bar] [Max]30.2 bar
Torque earth [Nm]2 N-m
Torque power [Nm]3 N-m
Total height [mm]687 mm
UL evaluatedYes
Viscosity [cP]32 cP
