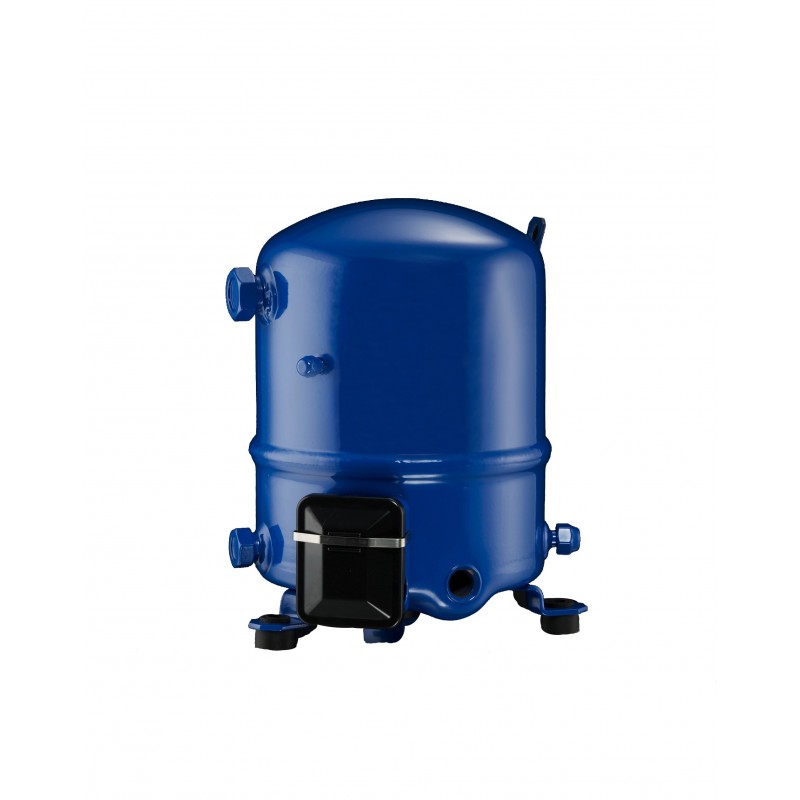

120F0075 DANFOSS REFRIGERATION Reciprocating compressor, NTZ108A1LR1A View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

120F0075 DANFOSS REFRIGERATION Reciprocating compressor, NTZ108A1LR1A

120F0075

DANFOSS REFRIGERATION

Reciprocating compressor, NTZ108A1LR1A

More details


Home > DANFOSS REFRIGERATION

* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Refrigerant: R404A; R507A, Segment usage: Refrigeration LT, Compressor power supply [V/Ph/Hz]: 208-230/1/60
Gross weight 37.5 Kg
Net weight 35 Kg
EAN 5702428934589
Approval standard CE
UL
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 1.84 Ohm
Brand technique Reciprocating compressor
Capacity control Fixed speed
Capacity of capacitor A 30 µF
Capacity of capacitor B 135 µF
Capacity of capacitor C 15 µF
Colour Blue
Compressor power supply [V/Ph/Hz] 208-230/1/60
Configuration code Single
Connection type Rotolock
Cylinder 2
Description NTZ108-1
Diameter [mm] 288 mm
Discharge connection height [mm] 74 mm
Discharge connection mounting torque [Nm] 90 N-m
Discharge connection pipe size [in] 0.75 in
Discharge connection rotolock size [in] 1.25 in
Discharge connection size [in] 1.25 in
Discharge connection sleeve pipe size [in] 0.75 in
Drawing number 8502012g
Economizer No
Factory HP [bar] 25 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 60
Gauge port HP None
Gauge port LP Schrader
Generation code A
Glass mounting Threaded
Glass torque [Nm] 50 N-m
GP LP torque [Nm] 15 N-m
High value of nominal voltage at 50Hz [V] 0 V
High value of nominal voltage at 60Hz [V] 230 V
High value of voltage range at 50Hz [V] 0 V
High value of voltage range at 60Hz [V] 253 V
IP protection class IP55 (with cable gland)
Low value of nominal voltage at 50Hz [V] 0 V
Low value of nominal voltage at 60Hz [V] 208 V
Low value of voltage range at 50Hz [V] 0 V
Low value of voltage range at 60Hz [V] 187 V
LRA 97 A
Main winding resistance for single-phase compressors [Ohm] 0.45 Ohm
MCC 33 A
Model number NTZ108A1LR1A
Motor protection Internal overload protector
Mounting torque [Nm] 15 N-m
Nominal cooling capacity at 60Hz 3.4 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.8 L
Oil equalization 3/8'' flare SAE
Oil equalization torque [Nm] 30 N-m
Oil reference 175PZ
Packaging height [mm] 450 mm
Packaging length [mm] 385 mm
Packaging width [mm] 375 mm
Packing format Single pack
Packing quantity 1
Phase 1
Power connections Spade
Product type NTZ
Refrigerant R404A
R507A
Refrigerant charge [kg] [Max] 5 kg
Relief valve 30 bar/8 bar
Rotational speed at 50Hz [rpm] 0 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Refrigeration LT
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 265 mm
Suction connection mounting torque [Nm] 110 N-m
Suction connection pipe size [in] 0.875 in
Suction connection rotolock size [in] 1.75 in
Suction connection size [in] 1.75 in
Suction connection sleeve pipe size [in] 0.875 in
Swept volume [cm3] 108 cm3
Technology Reciprocating
Test dif [bar] [Max] 30 bar
Test HP [bar] [Max] 30 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 3 N-m
Torque power [Nm] 3 N-m
Total height [mm] 413 mm
Type designation Compressor
Viscosity [cP] 32 cP
Voltage of capacitor A [V] 440 V
Voltage of capacitor B [V] 330 V
Voltage of capacitor C [V] 440 V
