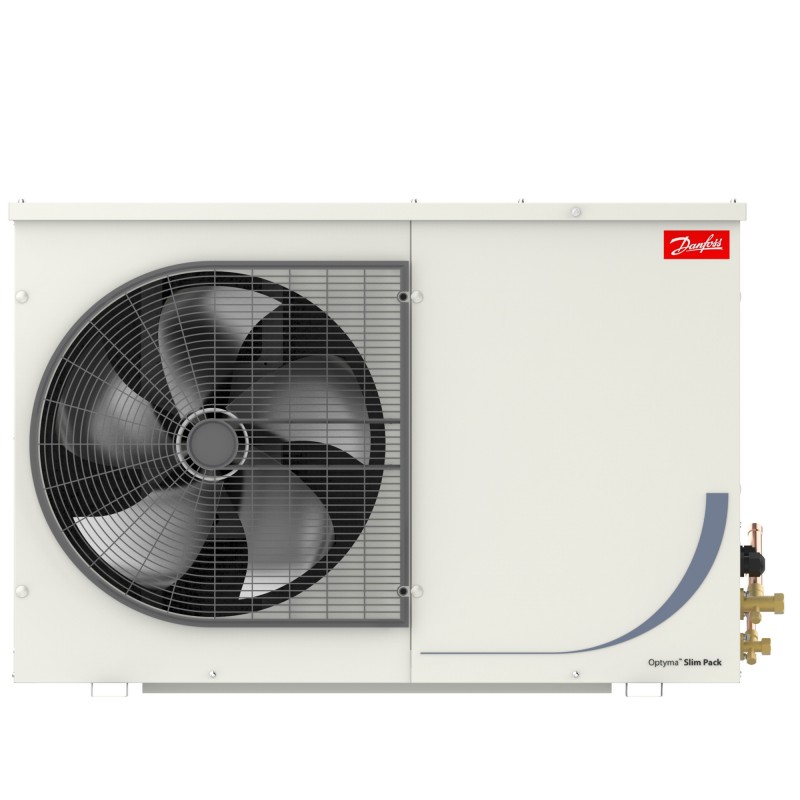

114X7195 DANFOSS REFRIGERATION Condensing unit Optyma Slim Pack, OP-MSXM034MLW09G
114X7195
DANFOSS REFRIGERATION
Condensing unit Optyma Slim Pack, OP-MSXM034MLW09G
Optyma™ Slim Pack, OP-MSXM034MLW09G
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Segment usage: Medium Back Pressure, Refrigerants: R404A; R507A; R452A; R407A; R134a; R407F; R513A; R448A; R449A, Compressor power supply [V]: 230/1/50
Product details
| Gross weight | 91 Kg |
| Net weight | 70 Kg |
| Volume | 529.788 Liter |
| EAN | 5702428561051 |
| Gross weight | 91 Kg |
| Net weight | 70 Kg |
| Volume | 529.788 Liter |
| EAN | 5702428561051 |
| Air flow @ 50Hz [m³/h] | 3300 m³/h |
| Applications | MBP |
| Compressor model | MLZ015T5 |
| Compressor power supply [V] | 230/1/50 |
| Condenser Coil Internal Volume | 0.58 mm³ |
| Condenser type | D7 |
| Connection type | Solder |
| Description | OP-MSXM034MLW09G |
| Electrical code | G |
| EU RoHS compliance | No - out of scope |
| Family | Optyma™ Slim Pack |
| Fan blade size [mm] | 450 mm |
| Fan cowl/grill type | B2 |
| Fan current @ 50Hz [A] | 0.47 A |
| Fan diameter [mm] | 600 mm |
| Fan power consumption @ 50Hz [W] | 110 W |
| Fan power output @ 50Hz [W] | 68 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 230 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 230 V |
| Frequency [Hz] | 50 Hz |
| High value of nominal voltage at 60Hz [V] | 240 V |
| In scope of WEEE and contain batteries | No |
| Length [mm] | 464 mm |
| Liquid line connection [in] | 1/2 in |
| Low value of voltage range at 60Hz [V] | 220 V |
| MCC | 19 A |
| Min fuse rating [A] | 20 A |
| Model number | OP-MSXM034MLW09G |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Phase | 1 |
| Product group | Condensing Units |
| Product Name Description | Package unit |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Receiver approval | CE |
| Receiver volume [L] | 3.4 L |
| Refrigerants | R134a R404A R407A R407F R448A R449A R452A R507A R513A |
| Segment usage | Medium Back Pressure |
| Sound power @ 50Hz [db(A)] | 71 dBA |
| Sound pressure level 50Hz (@1 m distance) [db(A)] | 60 dBA |
| Sound pressure level 50Hz (@10 m distance) [db(A)] | 40 dBA |
| Speed Platform | Fixed-speed |
| Suction connection size [in] | 3/4 in |
| Technology | Scroll |
| Total height [mm] | 690 mm |
| Type | Optyma™ Slim Pack W09 |
| Version | W09 |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Width [mm] | 1087 mm |
| Air flow @ 50Hz [m³/h] | 3300 m³/h |
| Applications | MBP |
| Compressor model | MLZ015T5 |
| Compressor power supply [V] | 230/1/50 |
| Condenser Coil Internal Volume | 0.58 mm³ |
| Condenser type | D7 |
| Connection type | Solder |
| Description | OP-MSXM034MLW09G |
| Electrical code | G |
| EU RoHS compliance | No - out of scope |
| Family | Optyma™ Slim Pack |
| Fan blade size [mm] | 450 mm |
| Fan cowl/grill type | B2 |
| Fan current @ 50Hz [A] | 0.47 A |
| Fan diameter [mm] | 600 mm |
| Fan power consumption @ 50Hz [W] | 110 W |
| Fan power output @ 50Hz [W] | 68 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 230 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 230 V |
| Frequency [Hz] | 50 Hz |
| High value of nominal voltage at 60Hz [V] | 240 V |
| In scope of WEEE and contain batteries | No |
| Length [mm] | 464 mm |
| Liquid line connection [in] | 1/2 in |
| Low value of voltage range at 60Hz [V] | 220 V |
| MCC | 19 A |
| Min fuse rating [A] | 20 A |
| Model number | OP-MSXM034MLW09G |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Phase | 1 |
| Product group | Condensing Units |
| Product Name Description | Package unit |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Receiver approval | CE |
| Receiver volume [L] | 3.4 L |
| Refrigerants | R134a R404A R407A R407F R448A R449A R452A R507A R513A |
| Segment usage | Medium Back Pressure |
| Sound power @ 50Hz [db(A)] | 71 dBA |
| Sound pressure level 50Hz (@1 m distance) [db(A)] | 60 dBA |
| Sound pressure level 50Hz (@10 m distance) [db(A)] | 40 dBA |
| Speed Platform | Fixed-speed |
| Suction connection size [in] | 3/4 in |
| Technology | Scroll |
| Total height [mm] | 690 mm |
| Type | Optyma™ Slim Pack W09 |
| Version | W09 |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Width [mm] | 1087 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 114X7195 114X7195 ES_114X7195.pdf | 145 Kbytes |
 |
