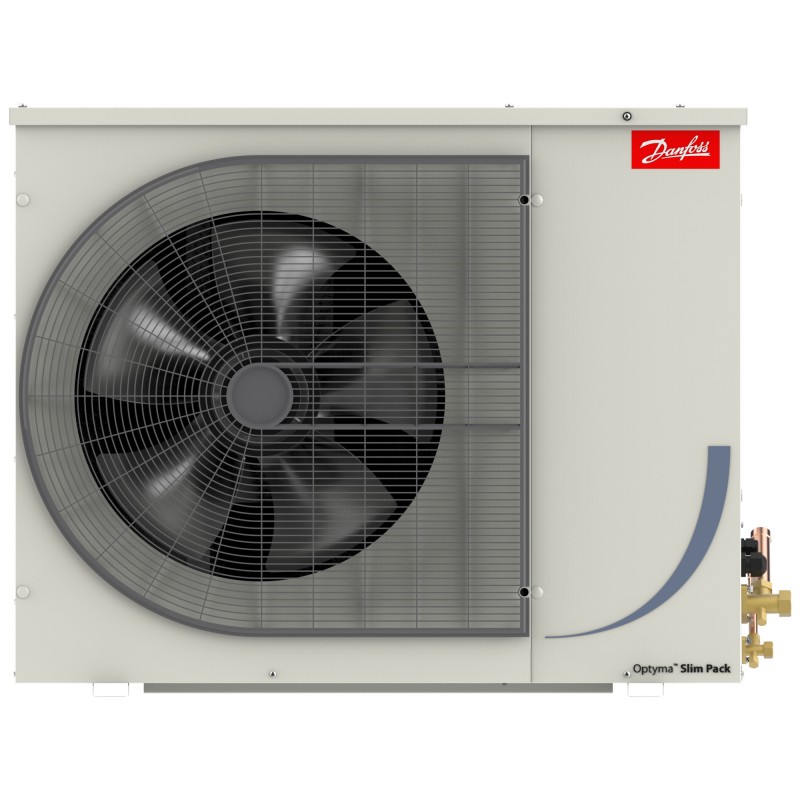

114X7187 DANFOSS REFRIGERATION Condensing unit Optyma Slim Pack, OP-LSQM067LLW09E
114X7187
DANFOSS REFRIGERATION
Condensing unit Optyma Slim Pack, OP-LSQM067LLW09E
OP-LSQM067LLW09E
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Type designation: Condensing Units, Type: Optyma™ Slim Pack, Model number: OP-LSQM067LLW09E, Refrigerant: R404A; R452A; R507, Segment usage: Low Back Pressure, No. of phases (compressor): 3
| Gross weight | 122 Kg |
| Net weight | 101 Kg |
| EAN | 5702428561136 |
| Air flow @ 50Hz [m³/h] | 5200 m3/h |
| Applications | LBP |
| Approval standard | CE EAC |
| Compressor model | LLZ013T4 |
| Compressor power supply [V/Ph/Hz] | 400/3/50 |
| Condenser type | G7 |
| Description | OP-LSQM067LLW09E |
| Electrical code | E |
| Fan blade size [mm] | 500 mm |
| Fan cowl/grill type | B3 |
| Fan current @ 50Hz [A] | 0.96 A |
| Fan diameter [mm] | 500 mm |
| Fan power consumption @ 50Hz [W] | 220 W |
| Fan power output @ 50Hz [W] | 130 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 230 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 230 V |
| Length [mm] | 464 mm |
| Liquid line connection [in] | 0.5 in |
| Liquid line connection type | Solder |
| MCC | 12 A |
| Model number | OP-LSQM067LLW09E |
| No. of phases (compressor) | 3 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Product type | Optyma™ Slim Pack |
| Receiver approval | CE |
| Refrigerant | R404A R452A R507 |
| Segment usage | Low Back Pressure |
| Sound power @ 50Hz [db(A)] | 71 dBA |
| Sound pressure level 50Hz (@10 m distance) [db(A)] | 40 dBA |
| Suction connection size [in] | 0.75 in |
| Suction connection type | Solder |
| Technology | Scroll |
| Total height [mm] | 825 mm |
| Type designation | Condensing Units |
| Version | W09 |
| Voltage 50Hz [V] | 380 V |
| Voltage 50Hz [V] [Max] | 415 V |
| Width [mm] | 1105 mm |
