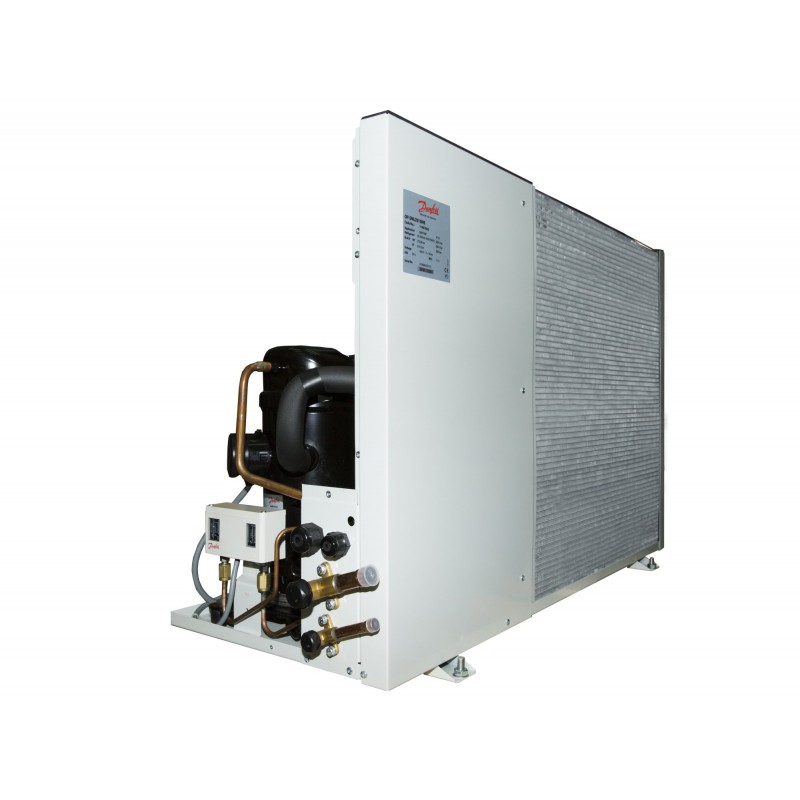

114X7136 DANFOSS REFRIGERATION Condensing unit Optyma Slim Pack, OP-MSBM018AJW09G
114X7136
DANFOSS REFRIGERATION
Condensing unit Optyma Slim Pack, OP-MSBM018AJW09G
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Type designation: Condensing Units, Type: Optyma™ Slim Pack, Model number: OP-MSBM018AJW09G, Refrigerant: R404A; R449A; R452A; R507, Segment usage: Medium Back Pressure, No. of phases (compressor): 1
| Gross weight | 81 Kg |
| Net weight | 62 Kg |
| EAN | 5702428561631 |
| Air flow @ 50Hz [m³/h] | 3300 m3/h |
| Applications | MBP |
| Approval standard | CE EAC |
| Capacity control | Fixed speed |
| Compressor model | CAJ9510Z |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Condenser type | D7 |
| Description | OP-MSBM018AJW09G |
| Electrical code | G |
| Fan blade size [mm] | 450 mm |
| Fan current @ 50Hz [A] | 0.47 A |
| Fan power consumption @ 50Hz [W] | 110 W |
| Fan power output @ 50Hz [W] | 68 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 230 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 230 V |
| Length [mm] | 464 mm |
| Model number | OP-MSBM018AJW09G |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Product type | Optyma™ Slim Pack |
| Refrigerant | R404A R449A R452A R507 |
| Segment usage | Medium Back Pressure |
| Sound pressure level 50Hz (@10 m distance) [db(A)] | 39 dBA |
| Technology | Reciprocating |
| Total height [mm] | 690 mm |
| Type designation | Condensing Units |
| Version | W09 |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Width [mm] | 1087 mm |
