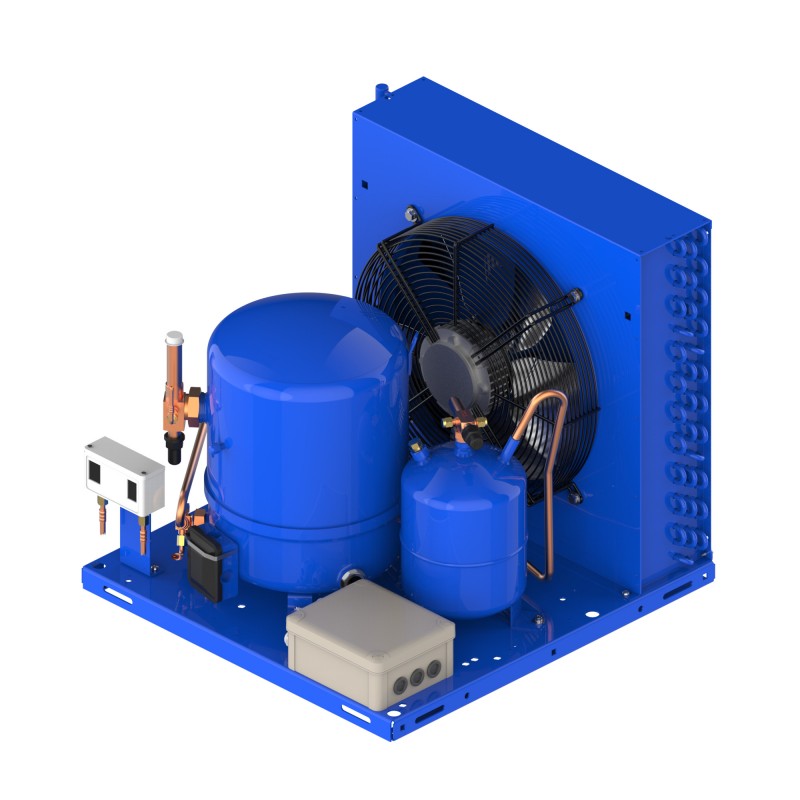

114X5146 DANFOSS REFRIGERATION OP-LCQD096NTA02D CONDENS. UNIT
114X5146
DANFOSS REFRIGERATION
OP-LCQD096NTA02D CONDENS. UNIT
Optyma™, OP-LCQD096NTA02D
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Segment usage: Low Back Pressure, Refrigerants: R404A; R507A; R452A, Compressor power supply [V]: 400/3/50
Product details
| Gross weight | 79.5 Kilogram |
| Net weight | 72 Kilogram |
| Volume | 379.431 Liter |
| EAN | 5702428564069 |
| Type | Optyma™ A02 (Fin and tube) |
| Product group | Condensing Units |
| Product Name Description | Bare unit |
| Gross weight | 79.5 Kilogram |
| Net weight | 72 Kilogram |
| Volume | 379.431 Liter |
| EAN | 5702428564069 |
| Type | Optyma™ A02 (Fin and tube) |
| Product group | Condensing Units |
| Product Name Description | Bare unit |
| Air flow @ 50Hz [m³/h] | 3150 m³/h |
| Applications | LBP |
| China RoHS compliance | Out of scope |
| Compressor model | NTZ096-4 |
| Compressor power supply [V] | 400/3/50 |
| Condenser type | E4 |
| Connection type | Solder |
| Contains batteries | No |
| Description | OP-LCQD096NTA02D |
| Electrical code | D |
| EU RoHS compliance | Out of scope |
| Family | Optyma™ |
| Fan blade size [mm] | 400 mm |
| Fan current @ 50Hz [A] | 0.44 A |
| Fan current @ 60Hz [A] | 0.5 A |
| Fan power consumption @ 50Hz [W] | 135 W |
| Fan power consumption @ 60Hz [W] | 235 W |
| Fan power supply [V/Ph/Hz] | 400/3/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 400 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 400 V |
| Frequency [Hz] | 50 Hz |
| High value of nominal voltage at 50Hz [V] | 400 V |
| Length [mm] | 650 mm |
| Liquid line connection [in] | 1/2 in |
| Low value of nominal voltage at 50Hz [V] | 400 V |
| MCC | 10.1 A |
| Model number | OP-LCQD096NTA02D |
| No. of phases (compressor) | 3 |
| No. of phases (fan) | 3 |
| Number of fans | 1 |
| Phase | 3 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) N,N-dimethylacetamide (CAS no. 127-19-5) |
| Receiver approval | CE |
| Refrigerants | R404A R452A R507A |
| RLA | 7.2 A |
| SCIP dossier no. | 1be0bd03-e3be-4828-90c5-78e2d4ca73c8 |
| SCIP dossier product name | OPTYMA A02 E4 |
| Segment usage | Low Back Pressure |
| Sound power @ 50Hz [db(A)] | 84 dBA |
| Suction connection size [in] | 7/8 in |
| Technology | Reciprocating |
| Total height [mm] | 605 mm |
| Version | A02 |
| Voltage 50Hz [V] | 400 V |
| Voltage 50Hz [V] [Max] | 400 V |
| Width [mm] | 630 mm |
| Air flow @ 50Hz [m³/h] | 3150 m³/h |
| Applications | LBP |
| China RoHS compliance | Out of scope |
| Compressor model | NTZ096-4 |
| Compressor power supply [V] | 400/3/50 |
| Condenser type | E4 |
| Connection type | Solder |
| Contains batteries | No |
| Description | OP-LCQD096NTA02D |
| Electrical code | D |
| EU RoHS compliance | Out of scope |
| Family | Optyma™ |
| Fan blade size [mm] | 400 mm |
| Fan current @ 50Hz [A] | 0.44 A |
| Fan current @ 60Hz [A] | 0.5 A |
| Fan power consumption @ 50Hz [W] | 135 W |
| Fan power consumption @ 60Hz [W] | 235 W |
| Fan power supply [V/Ph/Hz] | 400/3/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 400 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 400 V |
| Frequency [Hz] | 50 Hz |
| High value of nominal voltage at 50Hz [V] | 400 V |
| Length [mm] | 650 mm |
| Liquid line connection [in] | 1/2 in |
| Low value of nominal voltage at 50Hz [V] | 400 V |
| MCC | 10.1 A |
| Model number | OP-LCQD096NTA02D |
| No. of phases (compressor) | 3 |
| No. of phases (fan) | 3 |
| Number of fans | 1 |
| Phase | 3 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) N,N-dimethylacetamide (CAS no. 127-19-5) |
| Receiver approval | CE |
| Refrigerants | R404A R452A R507A |
| RLA | 7.2 A |
| SCIP dossier no. | 1be0bd03-e3be-4828-90c5-78e2d4ca73c8 |
| SCIP dossier product name | OPTYMA A02 E4 |
| Segment usage | Low Back Pressure |
| Sound power @ 50Hz [db(A)] | 84 dBA |
| Suction connection size [in] | 7/8 in |
| Technology | Reciprocating |
| Total height [mm] | 605 mm |
| Version | A02 |
| Voltage 50Hz [V] | 400 V |
| Voltage 50Hz [V] [Max] | 400 V |
| Width [mm] | 630 mm |
