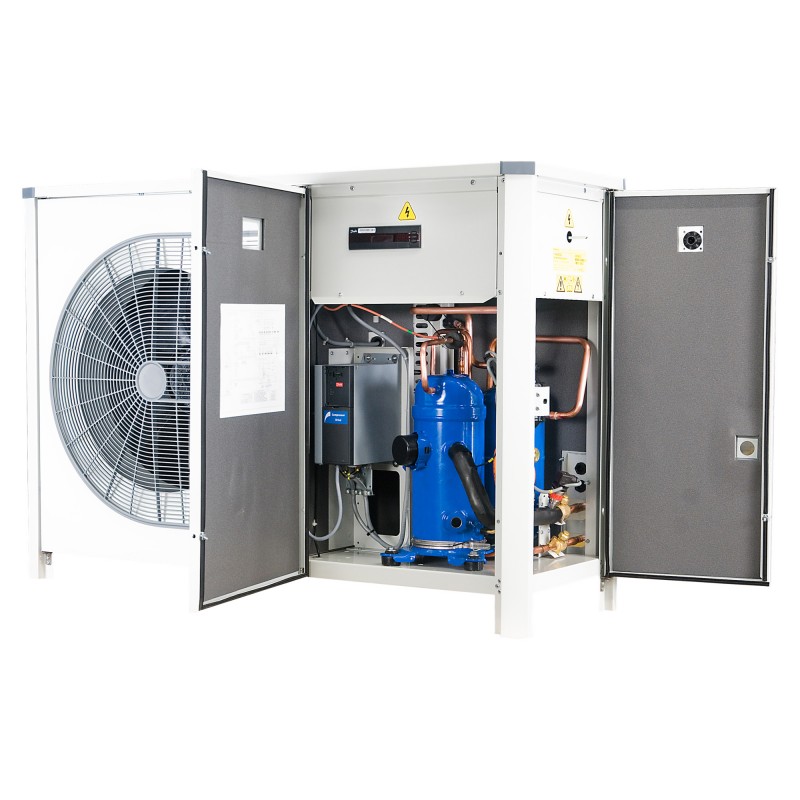

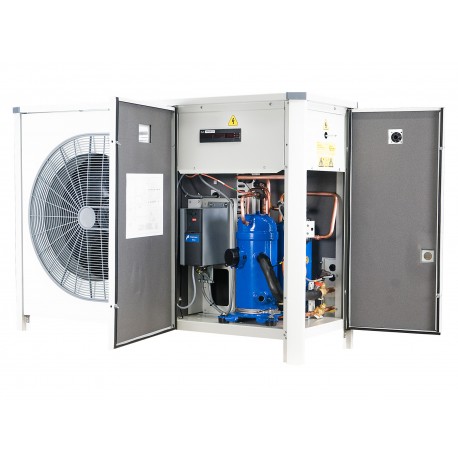

114X4315 DANFOSS REFRIGERATION Type designation: Condensing Units, Type: Optyma™ Plus INVERTER, Model number..
114X4315
DANFOSS REFRIGERATION
Type designation: Condensing Units, Type: Optyma™ Plus INVERTER, Model number: OP-MPLM035VVLP01E, Refrigerant: R404A; R407A; R407F; R507, Segment usage: Medium Back Pressure, No. of phases (compressor): 3
OP-MPLM035VVZP01
Optyma™ Plus INVERTER, OP-MPLM035VVLP01E
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Segment usage: Medium Back Pressure, Refrigerants: R404A; R507A; R452A, Compressor power supply [V]: 400/3/50
Product details
| Gross weight | 148.5 Kg |
| Net weight | 125 Kg |
| Volume | 1015.65 Liter |
| EAN | 5702428564557 |
| Gross weight | 148.5 Kg |
| Net weight | 125 Kg |
| Volume | 1015.65 Liter |
| EAN | 5702428564557 |
| Air flow @ 50Hz [m³/h] | 5200 m³/h |
| Applications | MBP |
| Capacity control | Inverter |
| Compressor model | VLZ035TGNE9 |
| Compressor power supply [V] | 400/3/50 |
| Condenser Coil Internal Volume | 1.62 mm³ |
| Condenser type | G7 |
| Connection type | Solder |
| Description | OP-MPLM035VVLP01E |
| Electrical code | E |
| EU RoHS compliance | No - out of scope |
| Family | Optyma™ Plus INVERTER |
| Fan blade size [mm] | 500 mm |
| Fan cowl/grill type | H3 |
| Fan current @ 50Hz [A] | 0.96 A |
| Fan diameter [mm] | 500 mm |
| Fan power consumption @ 50Hz [W] | 220 W |
| Fan power output @ 50Hz [W] | 130 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Min] | 230 V |
| Frequency [Hz] | 50 Hz |
| High value of nominal voltage at 50Hz [V] | 415 V |
| In scope of WEEE and contain batteries | No |
| Length [mm] | 481 mm |
| Liquid line connection [in] | 5/8 in |
| Low value of nominal voltage at 50Hz [V] | 360 V |
| MCC | 9.8 A |
| Min fuse rating [A] | 16 A |
| Model number | OP-MPLM035VVLP01E |
| No. of phases (compressor) | 3 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Phase | 3 |
| Product group | Condensing Units |
| Product Name Description | Package unit |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Receiver approval | CE |
| Receiver volume [L] | 6.2 L |
| Refrigerants | R404A R452A R507A |
| RLA | 8.5 A |
| Segment usage | Medium Back Pressure |
| Suction connection size [in] | 3/4 in |
| Technology | Scroll |
| Total height [mm] | 965 mm |
| Type | Optyma™ Plus INVERTER P01 |
| Variable speed approved frequency | 50 Hz |
| Version | P01 |
| Voltage 50Hz [V] | 360 V |
| Voltage 50Hz [V] [Max] | 415 V |
| Width [mm] | 1406 mm |
| Air flow @ 50Hz [m³/h] | 5200 m³/h |
| Applications | MBP |
| Capacity control | Inverter |
| Compressor model | VLZ035TGNE9 |
| Compressor power supply [V] | 400/3/50 |
| Condenser Coil Internal Volume | 1.62 mm³ |
| Condenser type | G7 |
| Connection type | Solder |
| Description | OP-MPLM035VVLP01E |
| Electrical code | E |
| EU RoHS compliance | No - out of scope |
| Family | Optyma™ Plus INVERTER |
| Fan blade size [mm] | 500 mm |
| Fan cowl/grill type | H3 |
| Fan current @ 50Hz [A] | 0.96 A |
| Fan diameter [mm] | 500 mm |
| Fan power consumption @ 50Hz [W] | 220 W |
| Fan power output @ 50Hz [W] | 130 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Min] | 230 V |
| Frequency [Hz] | 50 Hz |
| High value of nominal voltage at 50Hz [V] | 415 V |
| In scope of WEEE and contain batteries | No |
| Length [mm] | 481 mm |
| Liquid line connection [in] | 5/8 in |
| Low value of nominal voltage at 50Hz [V] | 360 V |
| MCC | 9.8 A |
| Min fuse rating [A] | 16 A |
| Model number | OP-MPLM035VVLP01E |
| No. of phases (compressor) | 3 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Phase | 3 |
| Product group | Condensing Units |
| Product Name Description | Package unit |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Receiver approval | CE |
| Receiver volume [L] | 6.2 L |
| Refrigerants | R404A R452A R507A |
| RLA | 8.5 A |
| Segment usage | Medium Back Pressure |
| Suction connection size [in] | 3/4 in |
| Technology | Scroll |
| Total height [mm] | 965 mm |
| Type | Optyma™ Plus INVERTER P01 |
| Variable speed approved frequency | 50 Hz |
| Version | P01 |
| Voltage 50Hz [V] | 360 V |
| Voltage 50Hz [V] [Max] | 415 V |
| Width [mm] | 1406 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 114X4315 114X4315 EN_114X7236.pdf | 2 Mbytes |
|
