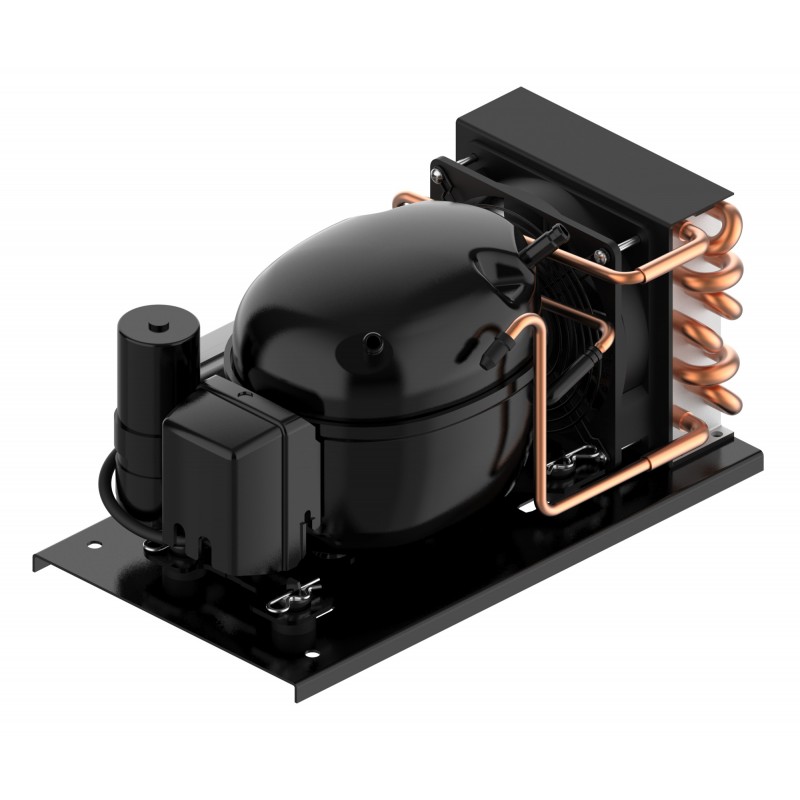

114G0503 DANFOSS REFRIGERATION Condensing unit Optyma, PL35GXN0
114G0503
DANFOSS REFRIGERATION
Condensing unit Optyma, PL35GXN0
PL35GXN0 CONDENS. UNIT
Optyma™, PL35GXN0
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Segment usage: Medium Back Pressure, Refrigerants: R134a, Compressor power supply [V]: 230/1/50
Product details
| Gross weight | 7.664 Kilogram |
| Net weight | 7.664 Kilogram |
| Volume | 18.48 Liter |
| EAN | 5702428570053 |
| Type | Optyma™ N0 |
| Product group | Condensing Units |
| Product Name Description | Bare unit |
| Gross weight | 7.664 Kilogram |
| Net weight | 7.664 Kilogram |
| Volume | 18.48 Liter |
| EAN | 5702428570053 |
| Type | Optyma™ N0 |
| Product group | Condensing Units |
| Product Name Description | Bare unit |
| Applications | HBP MBP |
| Capacity control | Fixed speed |
| China RoHS compliance | Out of scope |
| Compressor model | PL35G |
| Compressor power supply [V] | 230/1/50 |
| Condenser type | BG_0 |
| Contains batteries | No |
| Description | PL35GXN0 |
| Electrical code | G |
| EU RoHS compliance | Out of scope |
| Family | Optyma™ |
| Fan current @ 50Hz [A] | 0.08 A |
| Fan power consumption @ 50Hz [W] | 14 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Frequency [Hz] | 50 Hz |
| High value of nominal voltage at 60Hz [V] | 240 V |
| In scope of WEEE | Yes |
| Length [mm] | 300 mm |
| Low value of voltage range at 60Hz [V] | 220 V |
| Model number | PL35GXN0 |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Phase | 1 |
| REACH Candidate List substances | No |
| Refrigerants | R134a |
| Segment usage | Medium Back Pressure |
| Speed Platform | Fixed-speed |
| Technology | Reciprocating |
| Total height [mm] | 150 mm |
| Version | N0 |
| Width [mm] | 170 mm |
| Applications | HBP MBP |
| Capacity control | Fixed speed |
| China RoHS compliance | Out of scope |
| Compressor model | PL35G |
| Compressor power supply [V] | 230/1/50 |
| Condenser type | BG_0 |
| Contains batteries | No |
| Description | PL35GXN0 |
| Electrical code | G |
| EU RoHS compliance | Out of scope |
| Family | Optyma™ |
| Fan current @ 50Hz [A] | 0.08 A |
| Fan power consumption @ 50Hz [W] | 14 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Frequency [Hz] | 50 Hz |
| High value of nominal voltage at 60Hz [V] | 240 V |
| In scope of WEEE | Yes |
| Length [mm] | 300 mm |
| Low value of voltage range at 60Hz [V] | 220 V |
| Model number | PL35GXN0 |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Phase | 1 |
| REACH Candidate List substances | No |
| Refrigerants | R134a |
| Segment usage | Medium Back Pressure |
| Speed Platform | Fixed-speed |
| Technology | Reciprocating |
| Total height [mm] | 150 mm |
| Version | N0 |
| Width [mm] | 170 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
