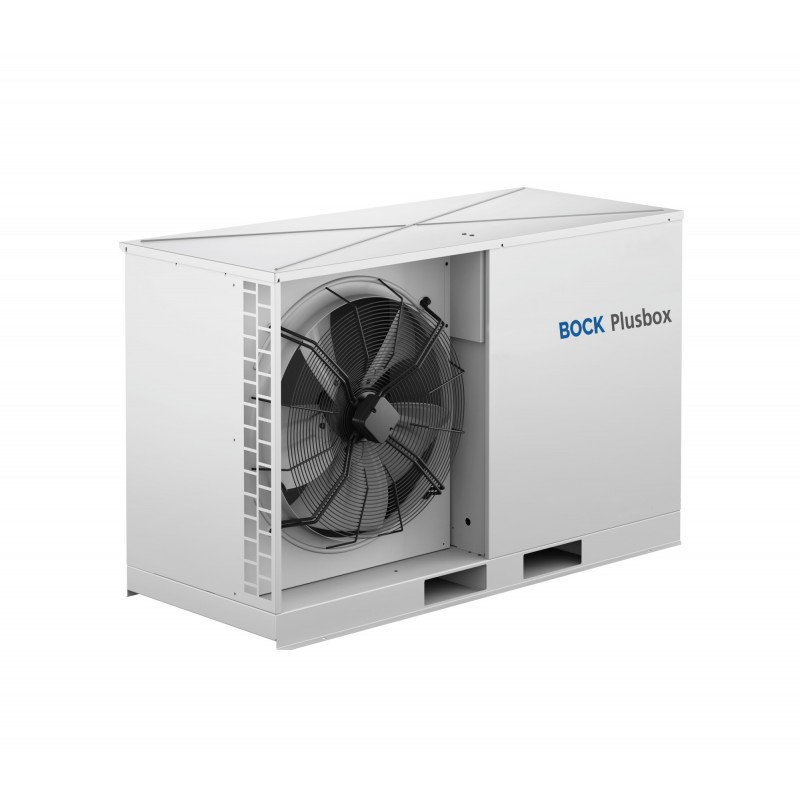

DANFOSS REFRIGERATION 114E16135 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

114E16135 DANFOSS REFRIGERATION COND. UNIT SHGX34e/255-4 SP & P E

Name: 114E16135 DANFOSS REFRIGERATION COND. UNIT SHGX34e/255-4 SP & P E
Brand: DANFOSS REFRIGERATION
SKU: DAO114E16135
Price: 14390.42 USD
Availability: OutOfStock

Code: 114E16135

Manufacturer: DANFOSS REFRIGERATION

Description:

COND. UNIT SHGX34e/255-4 SP&P;_E

Bock Semi-Hermetic Condensing Unit , SHGX34e/255-4 SP&P

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
Reviews

Guarantee, repair and return.

Unit Price: 12.146,28 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Refrigerants: R404A; R407C; R452A; R134a; R407F; R513A; R448A; R450A; R449A, Compressor power supply [V]: 220-240V D / 380-420V Y -3- 50Hz, Legacy BOCK ID: 16135

Product details

Gross weight	271.9 Kilogram
Net weight	243.9 Kilogram
Volume	1031.917 Liter

Type	SHGX34 P&P
Product group	Bock Semi-Hermetic Condensing Units
Product Name Description	Package Unit

Gross weight	271.9 Kilogram
Net weight	243.9 Kilogram
Volume	1031.917 Liter
Type	SHGX34 P&P
Product group	Bock Semi-Hermetic Condensing Units
Product Name Description	Package Unit

Air flow @ 50Hz [m³/h]	9100 m³/h
Anti-vibration pads	Yes
China RoHS compliance	Out of scope
Compressor power supply [V]	220-240V D / 380-420V Y -3- 50Hz
Contains batteries	No
Cylinder	4
Description	SHGX34e/255-4 SP&P
Discharge connection size [in]	5/8 in
Discharge connection size [mm]	16 mm
Discharge connection size type	Standard
Discharge connection type	Soldering
Dual HP/LP pressure switch	Yes
EU RoHS compliance	Out of scope
Family	Plusbox
Fan power consumption @ 50Hz [W]	600 W
Fan type	Standard
Frequency [Hz]	50 Hz
Hot gas temperature sensor	No
IP class	IP66
Legacy BOCK ID	16135
Length [mm]	679 mm
Max pressure (PS) - high side	28 bar

Max pressure (PS) - low side	19 bar
Maximum fan power @ 50 Hz [W]	600
Model number	SHGX34e/255-4 SP&P
Motor protection	INT69 G 115-230V AC, 50/60 Hz, IP00
Number of fans	1
Oil differential pressure sensor	No
Oil pressure safety switch	MP55 230V - 1 - 50/60 Hz, IP20
Oil separator	Yes
Oil sump heater	110-240 V - 1 – 50/60 Hz, 50 to 120 W, PTC self-regulating
Oil type	BOCKlub E55
Phase	3
Refrigerants	R134a R404A R407C R407F R448A R449A R450A R452A R513A
Safety valve for receiver	No
Speed controller	Yes
Step protection for CR/SU	No
Suction connection size [in]	1 1/8 in
Suction connection size [mm]	28 mm
Suction connection size type	Standard
Suction connection type	Soldering
Technology	Bock Semi-Hermetic Condensing Unit
Total height [mm]	968 mm
Width [mm]	1570 mm

Air flow @ 50Hz [m³/h]	9100 m³/h
Anti-vibration pads	Yes
China RoHS compliance	Out of scope
Compressor power supply [V]	220-240V D / 380-420V Y -3- 50Hz
Contains batteries	No
Cylinder	4
Description	SHGX34e/255-4 SP&P
Discharge connection size [in]	5/8 in
Discharge connection size [mm]	16 mm
Discharge connection size type	Standard
Discharge connection type	Soldering
Dual HP/LP pressure switch	Yes
EU RoHS compliance	Out of scope
Family	Plusbox
Fan power consumption @ 50Hz [W]	600 W
Fan type	Standard
Frequency [Hz]	50 Hz
Hot gas temperature sensor	No
IP class	IP66
Legacy BOCK ID	16135
Length [mm]	679 mm
Max pressure (PS) - high side	28 bar
Max pressure (PS) - low side	19 bar
Maximum fan power @ 50 Hz [W]	600
Model number	SHGX34e/255-4 SP&P
Motor protection	INT69 G 115-230V AC, 50/60 Hz, IP00
Number of fans	1
Oil differential pressure sensor	No
Oil pressure safety switch	MP55 230V - 1 - 50/60 Hz, IP20
Oil separator	Yes
Oil sump heater	110-240 V - 1 – 50/60 Hz, 50 to 120 W, PTC self-regulating
Oil type	BOCKlub E55
Phase	3
Refrigerants	R134a R404A R407C R407F R448A R449A R450A R452A R513A
Safety valve for receiver	No
Speed controller	Yes
Step protection for CR/SU	No
Suction connection size [in]	1 1/8 in
Suction connection size [mm]	28 mm
Suction connection size type	Standard
Suction connection type	Soldering
Technology	Bock Semi-Hermetic Condensing Unit
Total height [mm]	968 mm
Width [mm]	1570 mm

DATASHEET - PDF

Title

Size

Type

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
