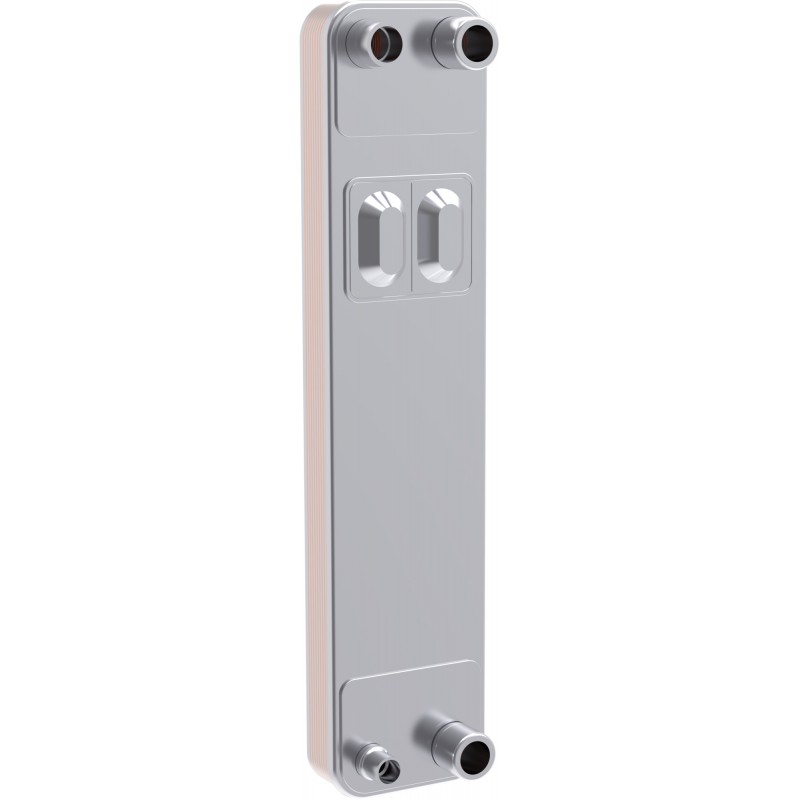

111B2024 DANFOSS REFRIGERATION Micro Plate heat exchanger H62L-EZU-28
111B2024
DANFOSS REFRIGERATION
Micro Plate heat exchanger H62L-EZU-28
Micro Plate heat exchanger, MPHE H62L-EZU
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Function: Evaporator, Max working pressure [psi]: 696, Number of plates: 28, Brazing material: Copper brazing
Product details
| Gross weight | 7.609 Kg |
| Net weight | 7.26 Kg |
| Volume | 11.551 Liter |
| EAN | 5702425147012 |
| Gross weight | 7.609 Kg |
| Net weight | 7.26 Kg |
| Volume | 11.551 Liter |
| EAN | 5702425147012 |
| Application | Heatpump |
| Approval | AS EAC KRAIA PED UA |
| Brazing material | Copper brazing |
| Design temperature range [°C] [max] | 200 °C |
| Design temperature range [°C] [min] | -196 °C |
| Design temperature range [°F] [max] | 320 °F |
| Design temperature range [°F] [min] | -390 °F |
| EU RoHS compliance | Yes |
| Function | Evaporator |
| Function note | With disteibutor |
| H3 conn. size | 1/2 in |
| H3 conn. type | Solder connection |
| H4 conn. size | 3/4 in |
| H4 conn. type | Solder connection |
| In scope of WEEE and contain batteries | No |
| Max working pressure [psi] | 696 psi |
| Max. Working Pressure [bar] | 48 bar |
| Model no. | 62 |
| Number of plates | 28 |
| Packing format | Single pack |
| Plate pattern | EZU |
| Product group | Heat exchangers |
| Product Name Description | Micro Plate heat exchanger |
| Q1 conn. size range | G1"1/4 |
| Q1 conn. type | G External thread connection |
| Q2 conn. size range | G1"1/4 |
| Q2 conn. type | G External thread connection |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1233ze can't be used R134a R22 R290A can't be used R32 R404A R407C R407F R410A R444B R452A R513A R600 R600a |
| Type | MPHE H62L-EZU |
| Type designation | H62L-EZU |
| Application | Heatpump |
| Approval | AS EAC KRAIA PED UA |
| Brazing material | Copper brazing |
| Design temperature range [°C] [max] | 200 °C |
| Design temperature range [°C] [min] | -196 °C |
| Design temperature range [°F] [max] | 320 °F |
| Design temperature range [°F] [min] | -390 °F |
| EU RoHS compliance | Yes |
| Function | Evaporator |
| Function note | With disteibutor |
| H3 conn. size | 1/2 in |
| H3 conn. type | Solder connection |
| H4 conn. size | 3/4 in |
| H4 conn. type | Solder connection |
| In scope of WEEE and contain batteries | No |
| Max working pressure [psi] | 696 psi |
| Max. Working Pressure [bar] | 48 bar |
| Model no. | 62 |
| Number of plates | 28 |
| Packing format | Single pack |
| Plate pattern | EZU |
| Product group | Heat exchangers |
| Product Name Description | Micro Plate heat exchanger |
| Q1 conn. size range | G1"1/4 |
| Q1 conn. type | G External thread connection |
| Q2 conn. size range | G1"1/4 |
| Q2 conn. type | G External thread connection |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1233ze can't be used R134a R22 R290A can't be used R32 R404A R407C R407F R410A R444B R452A R513A R600 R600a |
| Type | MPHE H62L-EZU |
| Type designation | H62L-EZU |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 111B2024 111B2024 ES_111B2024.pdf | 2 Mbytes |
 |
