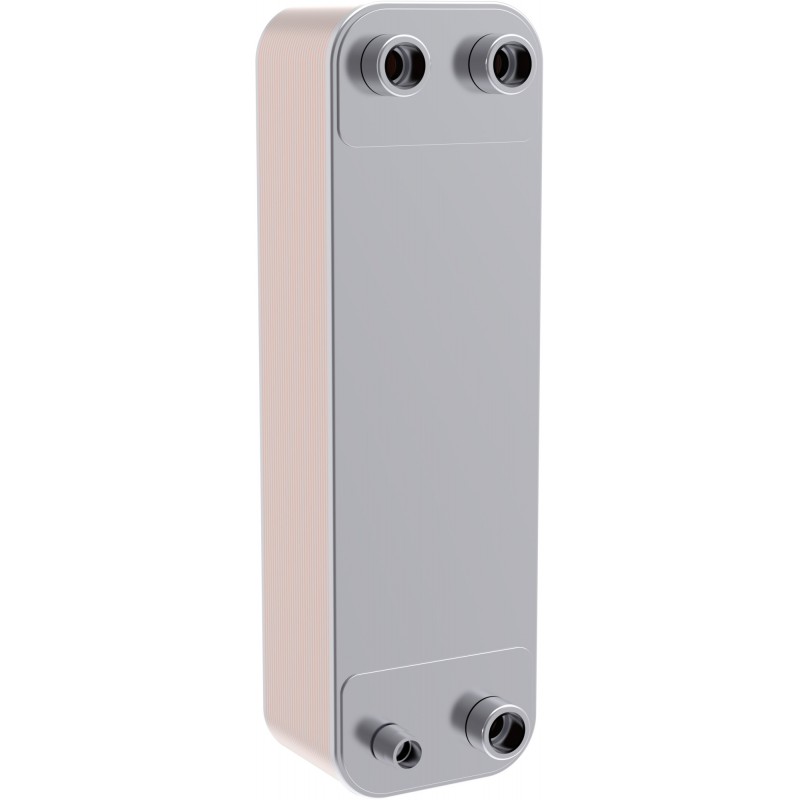

111B1802 DANFOSS REFRIGERATION Micro Plate heat exchanger C118-EZ-168
111B1802
DANFOSS REFRIGERATION
Micro Plate heat exchanger C118-EZ-168
Micro Plate heat exchanger, MPHE C118-EZ
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Function: Evaporator, Max working pressure [psi]: 435, Number of plates: 168, Brazing material: Copper brazing
Product details
| Gross weight | 67.5 Kg |
| Net weight | 51.3 Kg |
| Volume | 172.8 Liter |
| EAN | 5702425141003 |
| Gross weight | 67.5 Kg |
| Net weight | 51.3 Kg |
| Volume | 172.8 Liter |
| EAN | 5702425141003 |
| Application | Chiller |
| Approval | AS EAC KRAIA PED UA UL |
| Brazing material | Copper brazing |
| Design temperature range [°C] [max] | 200 °C |
| Design temperature range [°C] [min] | -196 °C |
| Design temperature range [°F] [max] | 320 °F |
| Design temperature range [°F] [min] | -390 °F |
| EU RoHS compliance | Yes |
| Function | Evaporator |
| Function note | With disteibutor |
| H1 conn. size | T76.1 |
| H1 conn. type | Victaulic connection |
| H2 conn. size | T76.1 |
| H2 conn. type | Victaulic connection |
| In scope of WEEE and contain batteries | No |
| Max working pressure [psi] | 435 psi |
| Max. Working Pressure [bar] | 30 bar |
| Model no. | 118 |
| Number of plates | 168 |
| Packing format | Single pack |
| Plate pattern | Z |
| Product group | Heat exchangers |
| Product Name Description | Micro Plate heat exchanger |
| Q1 conn. size range | G1/2 |
| Q1 conn. type | G Internal thread connection |
| Q2 conn. size range | G1/2 |
| Q2 conn. type | G Internal thread connection |
| Q3 conn. size range | 5/8 in |
| Q3 conn. type | Solder connection |
| Q4 conn. size range | 2 in |
| Q4 conn. type | Solder connection |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1233ze can't be used R134a R22 R290A can't be used R407C R513A R600a |
| Type | MPHE C118-EZ |
| Type designation | C118-EZ |
| Application | Chiller |
| Approval | AS EAC KRAIA PED UA UL |
| Brazing material | Copper brazing |
| Design temperature range [°C] [max] | 200 °C |
| Design temperature range [°C] [min] | -196 °C |
| Design temperature range [°F] [max] | 320 °F |
| Design temperature range [°F] [min] | -390 °F |
| EU RoHS compliance | Yes |
| Function | Evaporator |
| Function note | With disteibutor |
| H1 conn. size | T76.1 |
| H1 conn. type | Victaulic connection |
| H2 conn. size | T76.1 |
| H2 conn. type | Victaulic connection |
| In scope of WEEE and contain batteries | No |
| Max working pressure [psi] | 435 psi |
| Max. Working Pressure [bar] | 30 bar |
| Model no. | 118 |
| Number of plates | 168 |
| Packing format | Single pack |
| Plate pattern | Z |
| Product group | Heat exchangers |
| Product Name Description | Micro Plate heat exchanger |
| Q1 conn. size range | G1/2 |
| Q1 conn. type | G Internal thread connection |
| Q2 conn. size range | G1/2 |
| Q2 conn. type | G Internal thread connection |
| Q3 conn. size range | 5/8 in |
| Q3 conn. type | Solder connection |
| Q4 conn. size range | 2 in |
| Q4 conn. type | Solder connection |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1233ze can't be used R134a R22 R290A can't be used R407C R513A R600a |
| Type | MPHE C118-EZ |
| Type designation | C118-EZ |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 111B1802 111B1802 ES_111B1802.pdf | 273 Kbytes |
|
