DANFOSS REFRIGERATION107B0500 DANFOSS REFRIGERATION Reciprocating compressor, GS26CLX

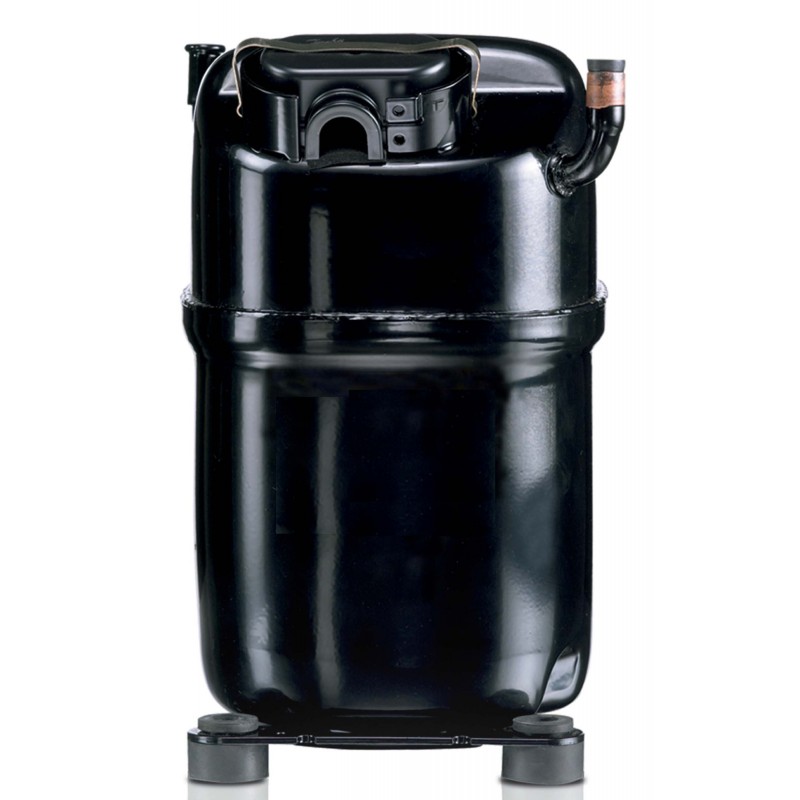

DANFOSS REFRIGERATION 107B0500 107B0500 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

107B0500 DANFOSS REFRIGERATION Reciprocating compressor, GS26CLX

1/5 - 1 Reviews

Reference: 107B0500

Manufacturer: DANFOSS REFRIGERATION

Description:

Reciprocating compressor, GS26CLX

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Refrigerants: R404A, Segment usage: Refrigeration LT, Compressor power supply [V]: 220-240/1/50

Product details

Gross weight20 Kg
Net weight20 Kg
Gross weight20 Kg
Net weight20 Kg

Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]500
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]5.2
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]220-240/1/50
Configuration codeSingle
Cut in current HST [A]27.7 A
Cut in current HST alt [A]26.2 A
DescriptionGS26CLX
Discharge connection angle [°]19 °
Discharge connection diameter [mm]8.2 mm
Discharge connection height [mm]234 mm
Discharge connection materialCopper
EconomizerNo
FamilyGS
Free gas volume [cm3]3220 cm³
Frequency [Hz]50
Height from baseplate [mm]247 mm
High value of nominal voltage at 50Hz [V]240 V
High value of voltage range at 50Hz [V]264 V
In scope of WEEE and contain batteriesNo
Length [mm]235 mm
Liquid injectionNo
Low value of nominal voltage at 50Hz [V]220 V
Low value of voltage range at 50Hz [V]198 V
LRA HST 60Hz [A]27.7 A
LRA HST [A]27.7 A
LRA HST alt [A]26.2 A
Main winding resistance for single-phase compressors [Ohm]3
Main winding resistance for single-phase compressors alt [Ohm]2.9
Model numberGS26CLX
Motor typeCSR
No. of phases (compressor)1
No. of phases (fan)1
Oil quantity [cm3]900 cm³
Oil typePOE
Packing formatIndustrial pack
Phase1
Process connection angle [°]90 °
Process connection diameter [mm]6.5 mm
Process connection height [mm]234 mm
Process connection materialCopper
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor GS
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]2 kg
RLA3.90 A
Rotational speed at 50Hz [rpm]2900 rpm
SCIP dossier no.cd1d92df-acc4-43d9-8eb6-bb380e61d93f
SCIP dossier product nameGL
Suction connection angle [°]90 °
Suction connection diameter [mm]12.9 mm
Suction connection height [mm]234 mm
Suction connection materialCopper
Swept volume [cm3]26.3 cm³
TechnologyReciprocating
Total height [mm]259 mm
TypeGS26
Voltage 50Hz [V]220 V
Voltage 50Hz [V] [Max]240 V
Width [mm]173 mm
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]500
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]5.2
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]220-240/1/50
Configuration codeSingle
Cut in current HST [A]27.7 A
Cut in current HST alt [A]26.2 A
DescriptionGS26CLX
Discharge connection angle [°]19 °
Discharge connection diameter [mm]8.2 mm
Discharge connection height [mm]234 mm
Discharge connection materialCopper
EconomizerNo
FamilyGS
Free gas volume [cm3]3220 cm³
Frequency [Hz]50
Height from baseplate [mm]247 mm
High value of nominal voltage at 50Hz [V]240 V
High value of voltage range at 50Hz [V]264 V
In scope of WEEE and contain batteriesNo
Length [mm]235 mm
Liquid injectionNo
Low value of nominal voltage at 50Hz [V]220 V
Low value of voltage range at 50Hz [V]198 V
LRA HST 60Hz [A]27.7 A
LRA HST [A]27.7 A
LRA HST alt [A]26.2 A
Main winding resistance for single-phase compressors [Ohm]3
Main winding resistance for single-phase compressors alt [Ohm]2.9
Model numberGS26CLX
Motor typeCSR
No. of phases (compressor)1
No. of phases (fan)1
Oil quantity [cm3]900 cm³
Oil typePOE
Packing formatIndustrial pack
Phase1
Process connection angle [°]90 °
Process connection diameter [mm]6.5 mm
Process connection height [mm]234 mm
Process connection materialCopper
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor GS
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]2 kg
RLA3.90 A
Rotational speed at 50Hz [rpm]2900 rpm
SCIP dossier no.cd1d92df-acc4-43d9-8eb6-bb380e61d93f
SCIP dossier product nameGL
Suction connection angle [°]90 °
Suction connection diameter [mm]12.9 mm
Suction connection height [mm]234 mm
Suction connection materialCopper
Swept volume [cm3]26.3 cm³
TechnologyReciprocating
Total height [mm]259 mm
TypeGS26
Voltage 50Hz [V]220 V
Voltage 50Hz [V] [Max]240 V
Width [mm]173 mm

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN
11 Mbytes

Reviews (1)

— Farley Redfield 9/11/21, 7:29 PM

GS26CLX

This compressor is made in a 60 cy motor on a freezer I’m working on. I can not find it or a recommended replacement for it
