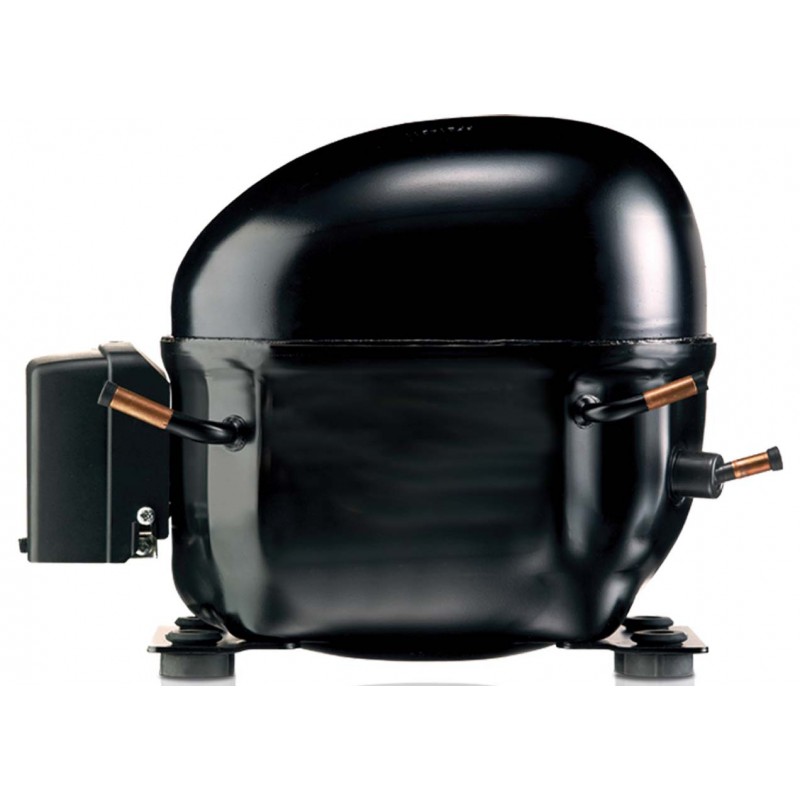

105H6953 DANFOSS REFRIGERATION Reciprocating compressor, NLE13KK.2
Reference: 105H6953
Manufacturer: DANFOSS REFRIGERATION
Description:
Reciprocating compressor, NLE13KK.2
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
MORE INFO
Refrigerants: R600a, Segment usage: Refrigeration LT, Compressor power supply [V]: 12-24/DC 110-220/1/60
Product details
| Gross weight | 10.45 Kg |
| Net weight | 10 Kg |
| Gross weight | 10.45 Kg |
| Net weight | 10 Kg |
| Approval | CE |
| Approval standard | EN 60335-2-34 with Annex AA |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 13 |
| Brand technique | Reciprocating compressor |
| Colour | Black |
| Compressor power supply [V] | 12-24/DC 110-220/1/60 |
| Cut in current LST [A] | 10.9 A |
| Description | NLE13KK.2 |
| Discharge connection angle [°] | 35 ° |
| Discharge connection comments | Al-cap |
| Discharge connection diameter [mm] | 5 mm |
| Discharge connection material | Cu-plated steel |
| Drawing number | 8248 |
| Family | NL |
| Free gas volume [cm3] | 2310 cm³ |
| Height from baseplate [mm] | 190 mm |
| In scope of WEEE and contain batteries | No |
| LRA LST [A] | 6.6 A |
| Main winding resistance for single-phase compressors [Ohm] | 10.7 |
| Model number | NLE13KK.2 |
| Motor type | RSCR RSIR |
| No. of phases (fan) | 1 |
| Oil quantity [cm3] | 320 cm³ |
| Oil type | Mineral |
| Packing format | Industrial pack |
| Process connection angle [°] | 25 ° |
| Process connection comments | Al-cap |
| Process connection diameter [mm] | 6.2 mm |
| Process connection material | Cu-plated steel |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor NL |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 0.15 kg |
| Run capacitor capacitance | 4 µF |
| Suction connection angle [°] | 15 ° |
| Suction connection diameter [mm] | 6.2 mm |
| Suction connection material | Cu-plated steel |
| Swept volume [cm3] | 13.25 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 197 mm |
| Type | NLE13 |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
| Approval | CE |
| Approval standard | EN 60335-2-34 with Annex AA |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 13 |
| Brand technique | Reciprocating compressor |
| Colour | Black |
| Compressor power supply [V] | 12-24/DC 110-220/1/60 |
| Cut in current LST [A] | 10.9 A |
| Description | NLE13KK.2 |
| Discharge connection angle [°] | 35 ° |
| Discharge connection comments | Al-cap |
| Discharge connection diameter [mm] | 5 mm |
| Discharge connection material | Cu-plated steel |
| Drawing number | 8248 |
| Family | NL |
| Free gas volume [cm3] | 2310 cm³ |
| Height from baseplate [mm] | 190 mm |
| In scope of WEEE and contain batteries | No |
| LRA LST [A] | 6.6 A |
| Main winding resistance for single-phase compressors [Ohm] | 10.7 |
| Model number | NLE13KK.2 |
| Motor type | RSCR RSIR |
| No. of phases (fan) | 1 |
| Oil quantity [cm3] | 320 cm³ |
| Oil type | Mineral |
| Packing format | Industrial pack |
| Process connection angle [°] | 25 ° |
| Process connection comments | Al-cap |
| Process connection diameter [mm] | 6.2 mm |
| Process connection material | Cu-plated steel |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor NL |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 0.15 kg |
| Run capacitor capacitance | 4 µF |
| Suction connection angle [°] | 15 ° |
| Suction connection diameter [mm] | 6.2 mm |
| Suction connection material | Cu-plated steel |
| Swept volume [cm3] | 13.25 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 197 mm |
| Type | NLE13 |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
