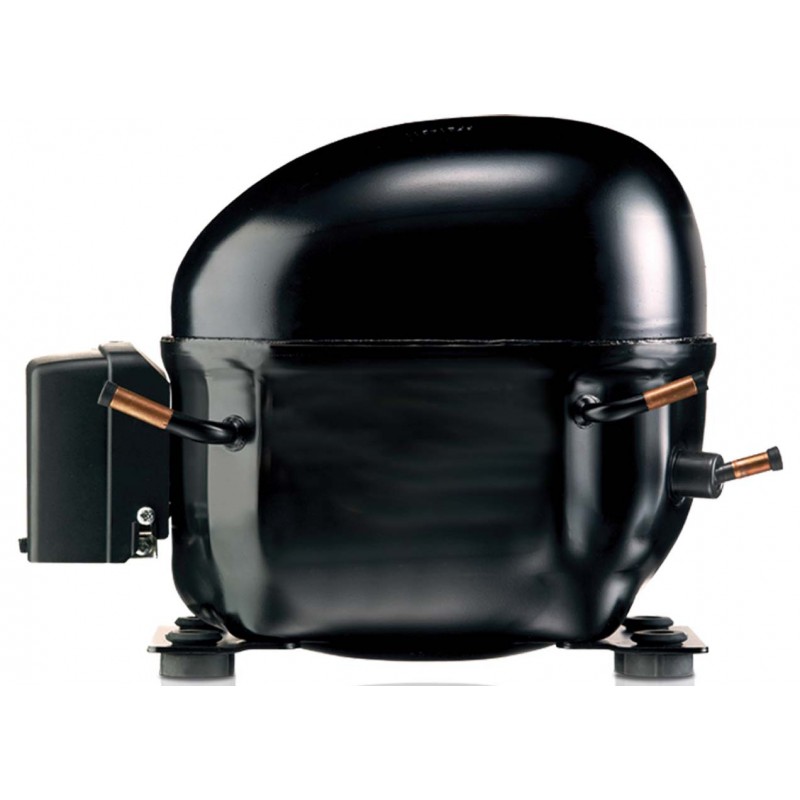

105H6756 DANFOSS REFRIGERATION Reciprocating compressor, NL7CN
105H6756
DANFOSS REFRIGERATION
80
Reciprocating compressor, NL7CN
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Refrigerants: R290, Segment usage: Refrigeration LT; Refrigeration MT, Compressor power supply [V]: 220-240/1/50
Product details
| Gross weight | 11.58 Kg |
| Net weight | 11.38 Kg |
| Gross weight | 11.58 Kg |
| Net weight | 11.38 Kg |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 14.7 |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 14.7 |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V] | 220-240/1/50 |
| Configuration code | Single |
| Cut in current HST [A] | 10.4 A |
| Cut in current LST [A] | 13.6 A |
| Description | NL7CN |
| Discharge connection angle [°] | 35 ° |
| Discharge connection comments | Rubber plug |
| Discharge connection diameter [mm] | 6.2 mm |
| Discharge connection material | Copper |
| Economizer | No |
| Family | NL |
| Free gas volume [cm3] | 2360 cm³ |
| Frequency [Hz] | 50 |
| Height from baseplate [mm] | 197 mm |
| High value of nominal voltage at 50Hz [V] | 240 V |
| High value of voltage range at 50Hz [V] | 264 V |
| In scope of WEEE and contain batteries | No |
| Length [mm] | 252 mm |
| Liquid injection | No |
| Low value of nominal voltage at 50Hz [V] | 220 V |
| Low value of voltage range at 50Hz [V] | 198 V |
| LRA HST 60Hz [A] | 10.4 A |
| LRA HST [A] | 10.4 A |
| LRA LST [A] | 9.2 A |
| Main winding resistance for single-phase compressors [Ohm] | 8.2 |
| Model number | NL7CN |
| Motor type | CSIR RSCR RSIR |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Oil quantity [cm3] | 270 cm³ |
| Oil type | POE |
| Packing format | Industrial pack |
| Phase | 1 |
| Process connection angle [°] | 25 ° |
| Process connection comments | Rubber plug |
| Process connection diameter [mm] | 6.2 mm |
| Process connection material | Copper |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor NL |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 0.15 kg |
| RLA | 1.80 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Run capacitor capacitance | 4 µF |
| Suction connection angle [°] | 15 ° |
| Suction connection diameter [mm] | 8.2 mm |
| Suction connection material | Copper |
| Swept volume [cm3] | 7.27 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 203 mm |
| Type | NL7 |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Width [mm] | 166 mm |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 14.7 |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 14.7 |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V] | 220-240/1/50 |
| Configuration code | Single |
| Cut in current HST [A] | 10.4 A |
| Cut in current LST [A] | 13.6 A |
| Description | NL7CN |
| Discharge connection angle [°] | 35 ° |
| Discharge connection comments | Rubber plug |
| Discharge connection diameter [mm] | 6.2 mm |
| Discharge connection material | Copper |
| Economizer | No |
| Family | NL |
| Free gas volume [cm3] | 2360 cm³ |
| Frequency [Hz] | 50 |
| Height from baseplate [mm] | 197 mm |
| High value of nominal voltage at 50Hz [V] | 240 V |
| High value of voltage range at 50Hz [V] | 264 V |
| In scope of WEEE and contain batteries | No |
| Length [mm] | 252 mm |
| Liquid injection | No |
| Low value of nominal voltage at 50Hz [V] | 220 V |
| Low value of voltage range at 50Hz [V] | 198 V |
| LRA HST 60Hz [A] | 10.4 A |
| LRA HST [A] | 10.4 A |
| LRA LST [A] | 9.2 A |
| Main winding resistance for single-phase compressors [Ohm] | 8.2 |
| Model number | NL7CN |
| Motor type | CSIR RSCR RSIR |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Oil quantity [cm3] | 270 cm³ |
| Oil type | POE |
| Packing format | Industrial pack |
| Phase | 1 |
| Process connection angle [°] | 25 ° |
| Process connection comments | Rubber plug |
| Process connection diameter [mm] | 6.2 mm |
| Process connection material | Copper |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor NL |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 0.15 kg |
| RLA | 1.80 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Run capacitor capacitance | 4 µF |
| Suction connection angle [°] | 15 ° |
| Suction connection diameter [mm] | 8.2 mm |
| Suction connection material | Copper |
| Swept volume [cm3] | 7.27 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 203 mm |
| Type | NL7 |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Width [mm] | 166 mm |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
