> DANFOSS REFRIGERATION>104L2869 DANFOSS REFRIGERATION Reciprocating compressor, SC15MLX
Previous Product Next Product

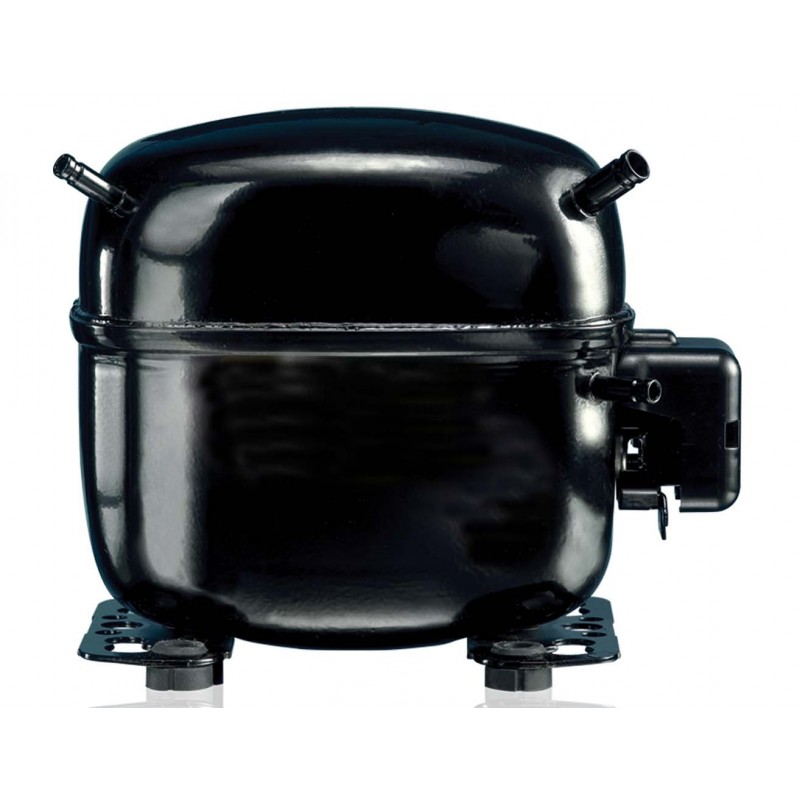

104L2869 DANFOSS REFRIGERATION Reciprocating compressor, SC15MLX View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

104L2869 DANFOSS REFRIGERATION Reciprocating compressor, SC15MLX

104L2869

DANFOSS REFRIGERATION

Reciprocating compressor, SC15MLX

More details


Home > DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Refrigerants: R404A, Segment usage: Refrigeration MT, Compressor power supply [V]: 220-240/1/50

Product details

Gross weight14.262 Kg
Net weight14.262 Kg
Volume12.54 Liter
Gross weight14.262 Kg
Net weight14.262 Kg
Volume12.54 Liter

Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]16
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]16
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]220-240/1/50
Configuration codeSingle
Cut in current HST [A]25.4 A
DescriptionSC15MLX
Discharge connection angle [°]37 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]6.2 mm
Discharge connection height [mm]100 mm
Discharge connection materialCopper
EconomizerNo
FamilySC
Free gas volume [cm3]1460 cm³
Frequency [Hz]50
Height from baseplate [mm]203 mm
High value of nominal voltage at 50Hz [V]240 V
High value of voltage range at 50Hz [V]264 V
In scope of WEEE and contain batteriesNo
Length [mm]255 mm
Liquid injectionNo
Low value of nominal voltage at 50Hz [V]220 V
Low value of voltage range at 50Hz [V]198 V
LRA HST 60Hz [A]25.4 A
LRA HST [A]25.4 A
Main winding resistance for single-phase compressors [Ohm]3.3
Model numberSC15MLX
Motor typeCSIR
No. of phases (compressor)1
No. of phases (fan)1
Oil quantity [cm3]600 cm³
Oil typePOE
Packing formatIndustrial pack
Phase1
Process connection angle [°]37 °
Process connection commentsRubber plug
Process connection diameter [mm]6.2 mm
Process connection height [mm]183 mm
Process connection materialCopper
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor SC
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]1.3 kg
RLA4.50 A
Rotational speed at 50Hz [rpm]2900 rpm
Start capacitor capacitance125 µF
Suction connection angle [°]37 °
Suction connection diameter [mm]10.2 mm
Suction connection height [mm]183 mm
Suction connection materialCopper
Swept volume [cm3]15.28 cm³
TechnologyReciprocating
Total height [mm]209 mm
TypeSC15
Voltage 50Hz [V]220 V
Voltage 50Hz [V] [Max]240 V
Width [mm]151 mm
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]125 °C
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]16
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]16
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]220-240/1/50
Configuration codeSingle
Cut in current HST [A]25.4 A
DescriptionSC15MLX
Discharge connection angle [°]37 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]6.2 mm
Discharge connection height [mm]100 mm
Discharge connection materialCopper
EconomizerNo
FamilySC
Free gas volume [cm3]1460 cm³
Frequency [Hz]50
Height from baseplate [mm]203 mm
High value of nominal voltage at 50Hz [V]240 V
High value of voltage range at 50Hz [V]264 V
In scope of WEEE and contain batteriesNo
Length [mm]255 mm
Liquid injectionNo
Low value of nominal voltage at 50Hz [V]220 V
Low value of voltage range at 50Hz [V]198 V
LRA HST 60Hz [A]25.4 A
LRA HST [A]25.4 A
Main winding resistance for single-phase compressors [Ohm]3.3
Model numberSC15MLX
Motor typeCSIR
No. of phases (compressor)1
No. of phases (fan)1
Oil quantity [cm3]600 cm³
Oil typePOE
Packing formatIndustrial pack
Phase1
Process connection angle [°]37 °
Process connection commentsRubber plug
Process connection diameter [mm]6.2 mm
Process connection height [mm]183 mm
Process connection materialCopper
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor SC
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]1.3 kg
RLA4.50 A
Rotational speed at 50Hz [rpm]2900 rpm
Start capacitor capacitance125 µF
Suction connection angle [°]37 °
Suction connection diameter [mm]10.2 mm
Suction connection height [mm]183 mm
Suction connection materialCopper
Swept volume [cm3]15.28 cm³
TechnologyReciprocating
Total height [mm]209 mm
TypeSC15
Voltage 50Hz [V]220 V
Voltage 50Hz [V] [Max]240 V
Width [mm]151 mm
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]125 °C
