> DANFOSS REFRIGERATION>104L2105 DANFOSS REFRIGERATION Reciprocating compressor, SC18MLX
Previous Product Next Product

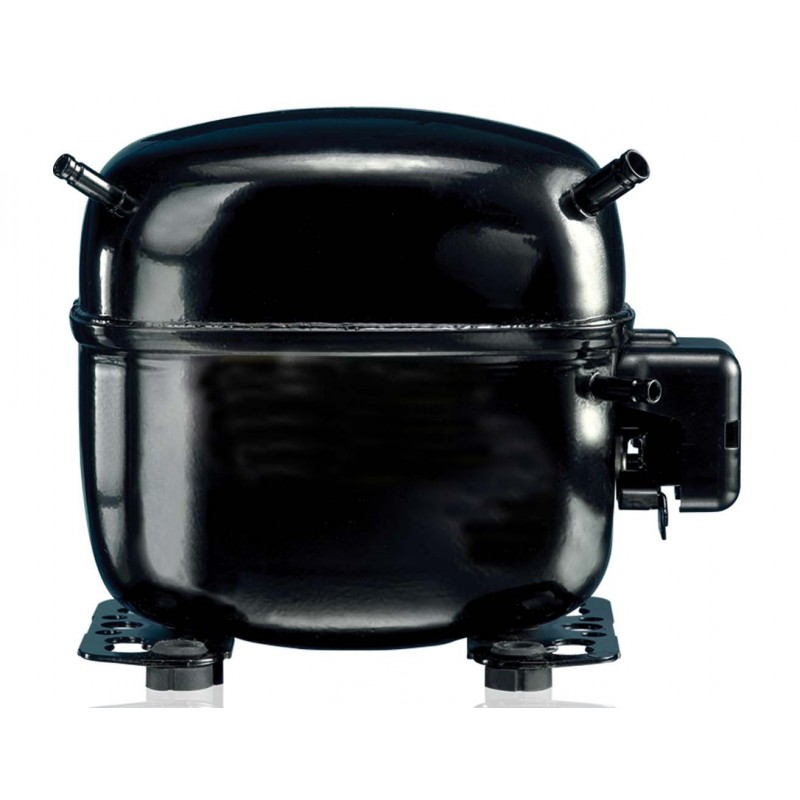

104L2105 DANFOSS REFRIGERATION Reciprocating compressor, SC18MLX View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

104L2105 DANFOSS REFRIGERATION Reciprocating compressor, SC18MLX

104L2105

DANFOSS REFRIGERATION

80

Reciprocating compressor, SC18MLX

More details


Home > DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Refrigerants: R404A; R452A, Segment usage: Refrigeration MT, Compressor power supply [V]: 115/1/60

Product details

Gross weight14.35 Kg
Net weight14.35 Kg
Volume12.76 Liter
EAN5702428586504
Gross weight14.35 Kg
Net weight14.35 Kg
Volume12.76 Liter
EAN5702428586504

ApplicationsMBP
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]2.6
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]2.6
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]115/1/60
Configuration codeSingle
Cut in current HST [A]68.4 A
DescriptionSC18MLX
Discharge connection angle [°]37 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]6.5 mm
Discharge connection height [mm]110 mm
Discharge connection materialCopper
EconomizerNo
FamilySC
Free gas volume [cm3]1460 cm³
Frequency [Hz]60
Height from baseplate [mm]213 mm
High value of nominal voltage at 60Hz [V]115 V
High value of voltage range at 60Hz [V]127 V
In scope of WEEE and contain batteriesNo
Length [mm]255 mm
Liquid injectionNo
Low value of nominal voltage at 60Hz [V]115 V
Low value of voltage range at 60Hz [V]103 V
LRA HST 60Hz [A]68.4 A
LRA HST [A]68.4 A
Main winding resistance for single-phase compressors [Ohm]0.6
Model numberSC18MLX
Motor typeCSR
No. of phases (compressor)1
No. of phases (fan)1
Oil quantity [cm3]600 cm³
Oil typePOE
Packing formatIndustrial pack
Packing quantity60
Phase1
Process connection angle [°]37 °
Process connection commentsRubber plug
Process connection diameter [mm]6.5 mm
Process connection height [mm]193 mm
Process connection materialCopper
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor SC
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]1.3 kg
RefrigerantsR404A
R452A
RLA13.50 A
Rotational speed at 60Hz [rpm]3500 rpm
Run capacitor capacitance23.5 µF
Segment usageRefrigeration MT
Start capacitor capacitance410 µF
Suction connection angle [°]37 °
Suction connection diameter [mm]9.63 mm
Suction connection height [mm]193 mm
Suction connection materialCopper
Swept volume [cm3]17.69 cm³
TechnologyReciprocating
Total height [mm]219 mm
TypeSC18
Voltage 60Hz [V]115 V
Voltage 60Hz [V] [Max]115 V
Width [mm]151 mm
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]125 °C
ApplicationsMBP
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]2.6
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]2.6
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]115/1/60
Configuration codeSingle
Cut in current HST [A]68.4 A
DescriptionSC18MLX
Discharge connection angle [°]37 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]6.5 mm
Discharge connection height [mm]110 mm
Discharge connection materialCopper
EconomizerNo
FamilySC
Free gas volume [cm3]1460 cm³
Frequency [Hz]60
Height from baseplate [mm]213 mm
High value of nominal voltage at 60Hz [V]115 V
High value of voltage range at 60Hz [V]127 V
In scope of WEEE and contain batteriesNo
Length [mm]255 mm
Liquid injectionNo
Low value of nominal voltage at 60Hz [V]115 V
Low value of voltage range at 60Hz [V]103 V
LRA HST 60Hz [A]68.4 A
LRA HST [A]68.4 A
Main winding resistance for single-phase compressors [Ohm]0.6
Model numberSC18MLX
Motor typeCSR
No. of phases (compressor)1
No. of phases (fan)1
Oil quantity [cm3]600 cm³
Oil typePOE
Packing formatIndustrial pack
Packing quantity60
Phase1
Process connection angle [°]37 °
Process connection commentsRubber plug
Process connection diameter [mm]6.5 mm
Process connection height [mm]193 mm
Process connection materialCopper
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor SC
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]1.3 kg
RefrigerantsR404A
R452A
RLA13.50 A
Rotational speed at 60Hz [rpm]3500 rpm
Run capacitor capacitance23.5 µF
Segment usageRefrigeration MT
Start capacitor capacitance410 µF
Suction connection angle [°]37 °
Suction connection diameter [mm]9.63 mm
Suction connection height [mm]193 mm
Suction connection materialCopper
Swept volume [cm3]17.69 cm³
TechnologyReciprocating
Total height [mm]219 mm
TypeSC18
Voltage 60Hz [V]115 V
Voltage 60Hz [V] [Max]115 V
Width [mm]151 mm
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]125 °C

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf 11 Mbytes
