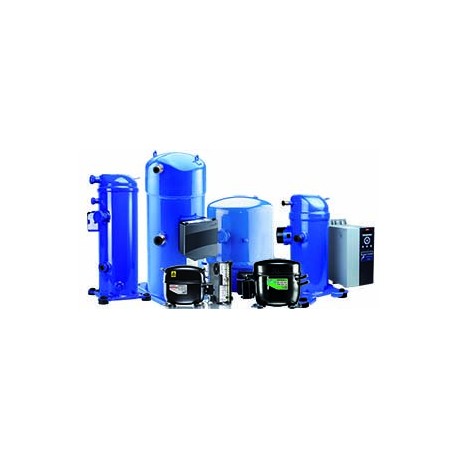

104H8866 DANFOSS REFRIGERATION Reciprocating compressor, SC18CNX.2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

104H8866 DANFOSS REFRIGERATION Reciprocating compressor, SC18CNX.2

104H8866

DANFOSS REFRIGERATION

Reciprocating compressor, SC18CNX.2

More details


Home > DANFOSS REFRIGERATION

* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Refrigerants: R290, Usage segment: Refrigeration LT
Gross weight 14 Kg
Net weight 14 Kg
Oil POE
Height total [mm] 219 mm
Amps locked rotor HST [A] 32.4 To
Applications LBP
Approval standard CE en 60335-2-34 with Annex AA
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 6.4 Ohm
Oil quantity [cm3] 600 cm3
Capacity of capacitor B 80 uF
Capacity control Fixed speed
Refrigerant charge [kg] [Max] 0.15 kg
Color Black
Comments on the suction connection Cover of The
Comments on the discharge connection Cover of The
Comments on the process connection Cover of The
Cut-in current HST [A] 32.4 To
Configuration code Individual
Description SC18CNX.2
Description SC
Designation Compressor
Discharge connection height [mm] 110 mm
Diameter of the suction connection [mm] 10.2 mm
Diameter discharge connection [mm] 6.2 mm
Economizer Not
Packaging format Industrial package
Frequency [Hz] Fifty
Height from baseplate [mm] 213 mm
Material of the discharge connection Steel-plated Cu
Material of the process connection Steel-plated Cu
N. º of phases (compressor) One
N. º of phases (fan) One
Energy level of the application Compressor LBP standard
Number of scheme Eight thousand two hundred fifty eight
Model number SC18CNX.2
Oil charge [L] 600 L
Phase One
Process connection diameter [mm] 6.2 mm
Refrigerants R290
Resistance of the primary winding for compressors in single-phase [Ohm] 2.2 Ohm
RLA 6.2 To
Start capacitor capacitance 80 µF
Suction connection height [mm] 193 mm
Swept volume [cm3] 17.69 cm3
Technology Alternative
Temperature of the winding, the short-term [°C] [Max] 135 °C
Winding temperature, stable [°C] [Max] 125 °C
Voltage, 50 Hz [V] 220 V
Voltage, 50 Hz [V] [max.] 240 V
Engine type CSIR
Type of motherboard Universal
Technique of the brand Compressor alternative
Units of packing Eighty
Use of segment Refrigeration LT
High value of nominal voltage at 50 Hz [V] 230 V
High value of the nominal voltage at 60 Hz [V] 0 V
High value of voltage range at 50hz [V] 254 V
High value of the voltage range at 60 Hz [V] 0 V
Low value of the rated voltage at 50 Hz [V] 220 V
Low value of the nominal voltage at 60 Hz [V] 0 V
Low value of voltage range at 50hz [V] 198 V
Low value of the voltage range at 60 Hz [V] 0 V
Rotation speed at 50 Hz [rpm] 2900 rpm
Rotation speed at 60 Hz [rpm] 0 rpm
Volume of free gas [cm3] 1410 cm3
Angle of the connection suction [°] 37 °
Angle of the discharge connection [°] 37 °
Angle of the connection process 37 °
