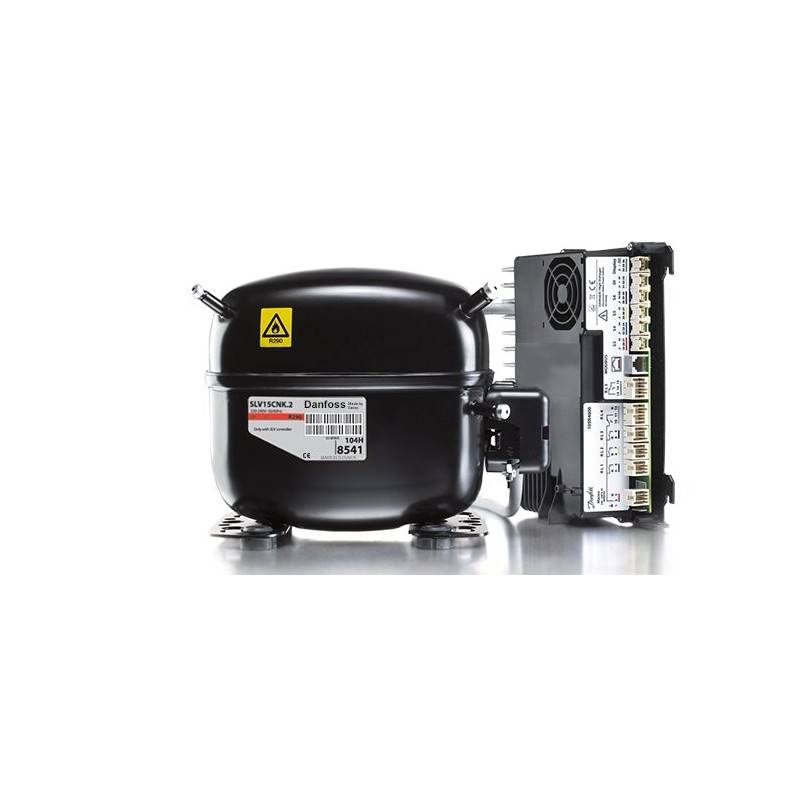

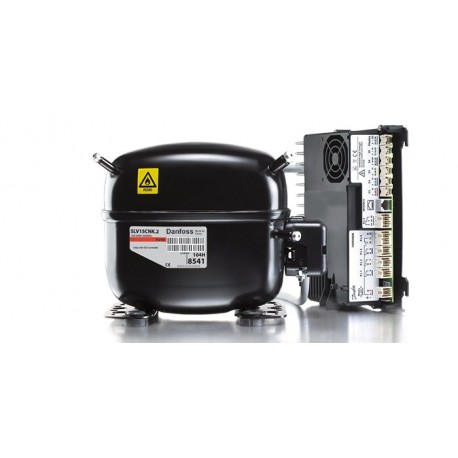

104H8541 DANFOSS REFRIGERATION Reciprocating compressor, SLV15CNK.2
104H8541
DANFOSS REFRIGERATION
80
Reciprocating compressor, SLV15CNK.2
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲| Gross weight | 12.33 Kg |
| Net weight | 12.33 Kg |
| Oil | POE |
| Height total [mm] | 199 mm |
| Applications | LBP |
| Amount of oil | 600 cm3 |
| Capacity control | Inverter |
| Refrigerant charge [kg] [Max] | 0.15 kg |
| Color | Black |
| Comments on the suction connection | Cover of The |
| Comments on the discharge connection | Cover of The |
| Comments on the process connection | Cover of The |
| Configuration code | Individual |
| Description | SLV15CNK.2 |
| Description | SC |
| Discharge connection height [mm] | 90 mm |
| Diameter of the suction connection [mm] | 10.2 mm |
| Diameter discharge connection [mm] | 6.2 mm |
| Economizer | Not |
| Packaging format | Industrial package |
| Frequency [Hz] | Fifty |
| Height from baseplate [mm] | 193 mm |
| Material of the discharge connection | Steel-plated Cu |
| Material of the process connection | Steel-plated Cu |
| Merged Approval standard and | CCC CE en 60335-2-34 with Annex AA |
| N. º of phases (compressor) | Zero |
| Energy level of the application | Compressor LBP variable speed |
| Number of scheme | Eight thousand two hundred fifty eight |
| Model number | SLV15CNK.2 |
| Oil charge [L] | 550 L |
| Phase | One |
| Process connection diameter [mm] | 6.2 mm |
| Refrigerants | R290 |
| Suction connection height [mm] | 173 mm |
| Swept volume [cm3] | 15.28 cm3 |
| Technology | Alternative |
| Temperature of the winding, the short-term [°C] [Max] | 135 °C |
| Winding temperature, stable [°C] [Max] | 125 °C |
| Voltage 60 Hz [V] [max.] | 230 V |
| Voltage, 50 Hz [V] | 220 V |
| Voltage, 50 Hz [V] [max.] | 240 V |
| Voltage, 60 Hz [V] | 208 V |
| Engine type | DC/PM |
| Type of motherboard | Universal |
| Type designation | Compressor |
| Technique of the brand | Reciprocating compressors, type |
| Units of packing | Eighty |
| Use of segment | Refrigeration LT |
| High value of nominal voltage at 50 Hz [V] | 230 V |
| High value of the nominal voltage at 60 Hz [V] | 0 V |
| High value of voltage range at 50hz [V] | 254 V |
| High value of the voltage range at 60 Hz [V] | 0 V |
| Low value of the rated voltage at 50 Hz [V] | 220 V |
| Low value of the nominal voltage at 60 Hz [V] | 0 V |
| Low value of voltage range at 50hz [V] | 198 V |
| Low value of the voltage range at 60 Hz [V] | 0 V |
| Rotation speed at 50 Hz [rpm] | 2900 rpm |
| Rotation speed at 60 Hz [rpm] | 0 rpm |
| Volume of free gas [cm3] | 1410 cm3 |
| Angle of the connection suction [°] | 37 ° |
| Angle of the discharge connection [°] | 37 ° |
| Angle of the connection process | 37 ° |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
