> DANFOSS REFRIGERATION>104G8861 DANFOSS REFRIGERATION Reciprocating compressor, SC18GH
Previous Product Next Product

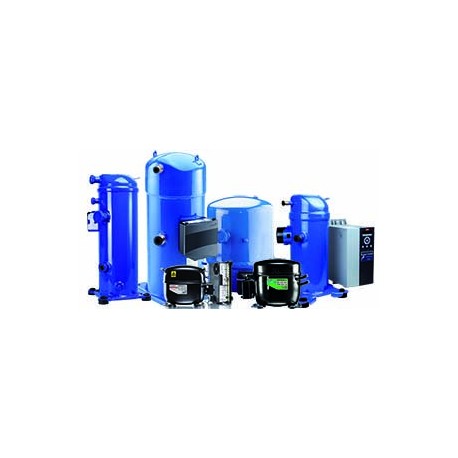

104G8861 DANFOSS REFRIGERATION Reciprocating compressor, SC18GH View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

104G8861 DANFOSS REFRIGERATION Reciprocating compressor, SC18GH

104G8861

DANFOSS REFRIGERATION

80

Reciprocating compressor, SC18GH

More details


Home > DANFOSS REFRIGERATION

* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Refrigerants: R134a
Gross weight 13.83 Kg
Net weight 13.83 Kg
Oil POE
Height total [mm] 219 mm
Applications BPH
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 12.9 Ohm
Amount of oil 500 cm3
Ability of the capacitor To 10 µF
Capacity of capacitor B 80 uF
Capacity control Fixed speed
Refrigerant charge [kg] [Max] 1.3 kg
Color Black
Comments on the suction connection Cover of The
Comments on the discharge connection Cover of The
Comments on the process connection Cover of The
Current connection HST [A] 22.1
Configuration code Individual
Description SC18GH
Description SC
Discharge connection height [mm] 110 mm
Diameter of the suction connection [mm] 10.2 mm
Diameter discharge connection [mm] 8.2 mm
Economizer Not
Packaging format Industrial package
Frequency [Hz] 50/60
Height from baseplate [mm] 213 mm
LRA HST [A] 22.1
Material of the discharge connection Steel-plated Cu
Material of the process connection Steel-plated Cu
Merged Approval standard and CCC
CE en 60335-2-34 with Annex AA
UL
N. º of phases (compressor) One
N. º of phases (fan) One
Energy level of the application Compressor BPH standard
Nominal cooling capacity of 60 kBTU/h 6.08 KBtu/h
Nominal cooling capacity at 60Hz 1.8 kW
Number of scheme Eight thousand two hundred fifty seven
Model number SC18GH
Oil charge [L] 500 L
Phase One
Process connection diameter [mm] 6.2 mm
Refrigerants R134a
Resistance of the primary winding for compressors in single-phase [Ohm] 3.5 Ohm
RLA 3.9 To
Run capacitor capacitance 10 µF
Start capacitor capacitance 80 µF
Suction connection height [mm] 193 mm
Swept volume [cm3] 17.69 cm3
Technology Alternative
Temperature of the winding, the short-term [°C] [Max] 135 °C
Winding temperature, stable [°C] [Max] 125 °C
Voltage 60 Hz [V] [max.] 240 V
Voltage, 50 Hz [V] 220 V
Voltage, 50 Hz [V] [max.] 240 V
Voltage, 60 Hz [V] 220 V
Engine type CSR
Type of motherboard Universal
Type designation Compressor
Technique of the brand Reciprocating compressors, type
Units of packing Eighty
Use of segment Refrigeration MT
High value of nominal voltage at 50 Hz [V] 230 V
High value of the nominal voltage at 60 Hz [V] 230 V
High value of voltage range at 50hz [V] 254 V
High value of the voltage range at 60 Hz [V] 254 V
Low value of the rated voltage at 50 Hz [V] 220 V
Low value of the nominal voltage at 60 Hz [V] 220 V
Low value of voltage range at 50hz [V] 198 V
Low value of the voltage range at 60 Hz [V] 198 V
Rotation speed at 50 Hz [rpm] 2900 rpm
Rotation speed at 60 Hz [rpm] 3500 rpm
Volume of free gas [cm3] 1460 cm3
Angle of the connection suction [°] 37 °
Angle of the discharge connection [°] 37 °
Angle of the connection process 37 °
