> DANFOSS REFRIGERATION>104G8580 DANFOSS REFRIGERATION Tandem reciprocating compressor, SC15/15G
Previous Product Next Product

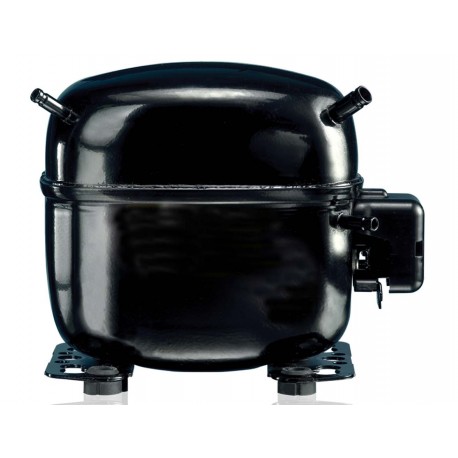

104G8580 DANFOSS REFRIGERATION Tandem reciprocating compressor, SC15/15G View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

104G8580 DANFOSS REFRIGERATION Tandem reciprocating compressor, SC15/15G

104G8580

DANFOSS REFRIGERATION

Tandem reciprocating compressor, SC15/15G

Reciprocating compressor, SC15/15G

More details


Home > DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Refrigerants: R134a, Segment usage: Refrigeration LT; Refrigeration HT; Refrigeration MT, Compressor power supply [V]: 220-240/1/50

Product details

Gross weight28.833 Kg
Net weight28.833 Kg
Volume5.111 Liter
Gross weight28.833 Kg
Net weight28.833 Kg
Volume5.111 Liter

Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]13.5
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]13.5
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]220-240/1/50
Configuration codeTandem
Cut in current HST [A]16.2 A
Cut in current LST [A]20.1 A
DescriptionSC15/15G
Discharge connection angle [°]37 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]6.2 mm
Discharge connection height [mm]110 mm
Discharge connection materialCopper
EconomizerNo
FamilySC
Free gas volume [cm3]2820 cm³
Frequency [Hz]50
Height from baseplate [mm]244 mm
High value of nominal voltage at 50Hz [V]240 V
High value of voltage range at 50Hz [V]264 V
In scope of WEEE and contain batteriesNo
Length [mm]320 mm
Liquid injectionNo
Low value of nominal voltage at 50Hz [V]220 V
Low value of voltage range at 50Hz [V]198 V
LRA HST 60Hz [A]16.2 A
LRA HST [A]32.4 A
LRA LST [A]15.8 A
Main winding resistance for single-phase compressors [Ohm]5.1
Model numberSC15/15G
Motor typeCSIR
No. of phases (compressor)1
No. of phases (fan)1
Oil quantity [cm3]1220 cm³
Oil typePOE
Packing formatIndustrial pack
Phase1
Process connection angle [°]37 °
Process connection commentsRubber plug
Process connection diameter [mm]6.2 mm
Process connection height [mm]183 mm
Process connection materialCopper
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor SC
REACH Candidate List substancesNo
Refrigerant charge [kg] [Max]2.2 kg
RLA3.10 A
Rotational speed at 50Hz [rpm]2900 rpm
Suction connection angle [°]37 °
Suction connection diameter [mm]12 mm
Suction connection height [mm]183 mm
Suction connection materialCopper
Swept volume [cm3]30.56 cm³
TechnologyReciprocating
Total height [mm]249 mm
TypeSC15/15
Voltage 50Hz [V]220 V
Voltage 50Hz [V] [Max]240 V
Width [mm]326 mm
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]125 °C
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]13.5
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]13.5
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]220-240/1/50
Configuration codeTandem
Cut in current HST [A]16.2 A
Cut in current LST [A]20.1 A
DescriptionSC15/15G
Discharge connection angle [°]37 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]6.2 mm
Discharge connection height [mm]110 mm
Discharge connection materialCopper
EconomizerNo
FamilySC
Free gas volume [cm3]2820 cm³
Frequency [Hz]50
Height from baseplate [mm]244 mm
High value of nominal voltage at 50Hz [V]240 V
High value of voltage range at 50Hz [V]264 V
In scope of WEEE and contain batteriesNo
Length [mm]320 mm
Liquid injectionNo
Low value of nominal voltage at 50Hz [V]220 V
Low value of voltage range at 50Hz [V]198 V
LRA HST 60Hz [A]16.2 A
LRA HST [A]32.4 A
LRA LST [A]15.8 A
Main winding resistance for single-phase compressors [Ohm]5.1
Model numberSC15/15G
Motor typeCSIR
No. of phases (compressor)1
No. of phases (fan)1
Oil quantity [cm3]1220 cm³
Oil typePOE
Packing formatIndustrial pack
Phase1
Process connection angle [°]37 °
Process connection commentsRubber plug
Process connection diameter [mm]6.2 mm
Process connection height [mm]183 mm
Process connection materialCopper
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor SC
REACH Candidate List substancesNo
Refrigerant charge [kg] [Max]2.2 kg
RLA3.10 A
Rotational speed at 50Hz [rpm]2900 rpm
Suction connection angle [°]37 °
Suction connection diameter [mm]12 mm
Suction connection height [mm]183 mm
Suction connection materialCopper
Swept volume [cm3]30.56 cm³
TechnologyReciprocating
Total height [mm]249 mm
TypeSC15/15
Voltage 50Hz [V]220 V
Voltage 50Hz [V] [Max]240 V
Width [mm]326 mm
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]125 °C
