103U2670
DANFOSS REFRIGERATION
80

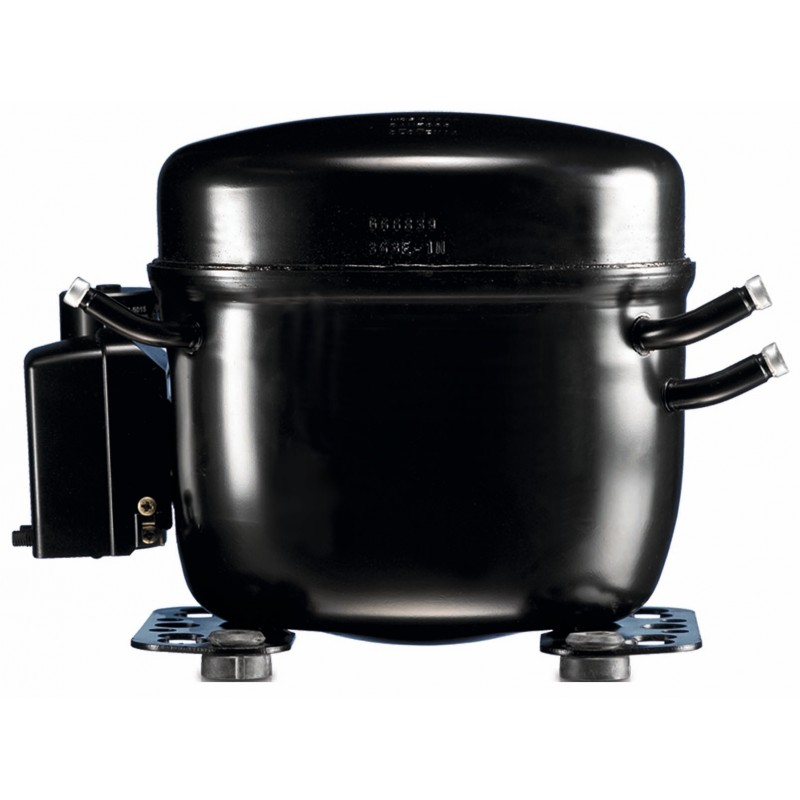

Reciprocating compressor, FR6CL
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Refrigerants: R404A, Segment usage: Refrigeration LT, Compressor power supply [V]: 220-240/1/50
Gross weight | 10.7 Kg |
Net weight | 10.502 Kg |
Gross weight | 10.7 Kg |
Net weight | 10.502 Kg |
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 12 |
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 12 |
Brand technique | Reciprocating compressor |
Capacity control | Fixed speed |
Colour | Black |
Compressor power supply [V] | 220-240/1/50 |
Configuration code | Single |
Cut in current HST [A] | 9 A |
Cut in current LST [A] | 12.8 A |
Description | FR6CL |
Discharge connection angle [°] | 25 ° |
Discharge connection comments | Al-cap |
Discharge connection diameter [mm] | 6.2 mm |
Discharge connection material | Cu-plated steel |
Economizer | No |
Family | FR |
Free gas volume [cm3] | 1350 cm³ |
Frequency [Hz] | 50 |
Height from baseplate [mm] | 191 mm |
High value of nominal voltage at 50Hz [V] | 240 V |
High value of voltage range at 50Hz [V] | 264 V |
In scope of WEEE and contain batteries | No |
Length [mm] | 243 mm |
Liquid injection | No |
Low value of nominal voltage at 50Hz [V] | 220 V |
Low value of voltage range at 50Hz [V] | 198 V |
LRA HST 60Hz [A] | 9 A |
LRA HST [A] | 9 A |
LRA LST [A] | 8.4 A |
Main winding resistance for single-phase compressors [Ohm] | 8.9 |
Model number | FR6CL |
Motor type | CSIR |
No. of phases (compressor) | 1 |
No. of phases (fan) | 1 |
Oil quantity [cm3] | 450 cm³ |
Oil type | POE |
Packing format | Industrial pack |
Phase | 1 |
Process connection angle [°] | 30 ° |
Process connection comments | Al-cap |
Process connection diameter [mm] | 6.2 mm |
Process connection material | Cu-plated steel |
Product group | Hermetic compressors |
Product Name Description | Reciprocating compressor FR |
REACH Candidate List substances | No |
Refrigerant charge [kg] [Max] | 0.85 kg |
RLA | 1.60 A |
Rotational speed at 50Hz [rpm] | 2900 rpm |
Suction connection angle [°] | 30 ° |
Suction connection diameter [mm] | 8.2 mm |
Suction connection material | Cu-plated steel |
Swept volume [cm3] | 6.23 cm³ |
Technology | Reciprocating |
Total height [mm] | 196 mm |
Type | FR6 |
Voltage 50Hz [V] | 220 V |
Voltage 50Hz [V] [Max] | 240 V |
Width [mm] | 156 mm |
Winding temperature short term [°C] [Max] | 135 °C |
Winding temperature stat [°C] [Max] | 125 °C |
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 12 |
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 12 |
Brand technique | Reciprocating compressor |
Capacity control | Fixed speed |
Colour | Black |
Compressor power supply [V] | 220-240/1/50 |
Configuration code | Single |
Cut in current HST [A] | 9 A |
Cut in current LST [A] | 12.8 A |
Description | FR6CL |
Discharge connection angle [°] | 25 ° |
Discharge connection comments | Al-cap |
Discharge connection diameter [mm] | 6.2 mm |
Discharge connection material | Cu-plated steel |
Economizer | No |
Family | FR |
Free gas volume [cm3] | 1350 cm³ |
Frequency [Hz] | 50 |
Height from baseplate [mm] | 191 mm |
High value of nominal voltage at 50Hz [V] | 240 V |
High value of voltage range at 50Hz [V] | 264 V |
In scope of WEEE and contain batteries | No |
Length [mm] | 243 mm |
Liquid injection | No |
Low value of nominal voltage at 50Hz [V] | 220 V |
Low value of voltage range at 50Hz [V] | 198 V |
LRA HST 60Hz [A] | 9 A |
LRA HST [A] | 9 A |
LRA LST [A] | 8.4 A |
Main winding resistance for single-phase compressors [Ohm] | 8.9 |
Model number | FR6CL |
Motor type | CSIR |
No. of phases (compressor) | 1 |
No. of phases (fan) | 1 |
Oil quantity [cm3] | 450 cm³ |
Oil type | POE |
Packing format | Industrial pack |
Phase | 1 |
Process connection angle [°] | 30 ° |
Process connection comments | Al-cap |
Process connection diameter [mm] | 6.2 mm |
Process connection material | Cu-plated steel |
Product group | Hermetic compressors |
Product Name Description | Reciprocating compressor FR |
REACH Candidate List substances | No |
Refrigerant charge [kg] [Max] | 0.85 kg |
RLA | 1.60 A |
Rotational speed at 50Hz [rpm] | 2900 rpm |
Suction connection angle [°] | 30 ° |
Suction connection diameter [mm] | 8.2 mm |
Suction connection material | Cu-plated steel |
Swept volume [cm3] | 6.23 cm³ |
Technology | Reciprocating |
Total height [mm] | 196 mm |
Type | FR6 |
Voltage 50Hz [V] | 220 V |
Voltage 50Hz [V] [Max] | 240 V |
Width [mm] | 156 mm |
Winding temperature short term [°C] [Max] | 135 °C |
Winding temperature stat [°C] [Max] | 125 °C |
