> DANFOSS REFRIGERATION>103G6890 DANFOSS REFRIGERATION Reciprocating compressor, FR10G
Previous Product Next Product

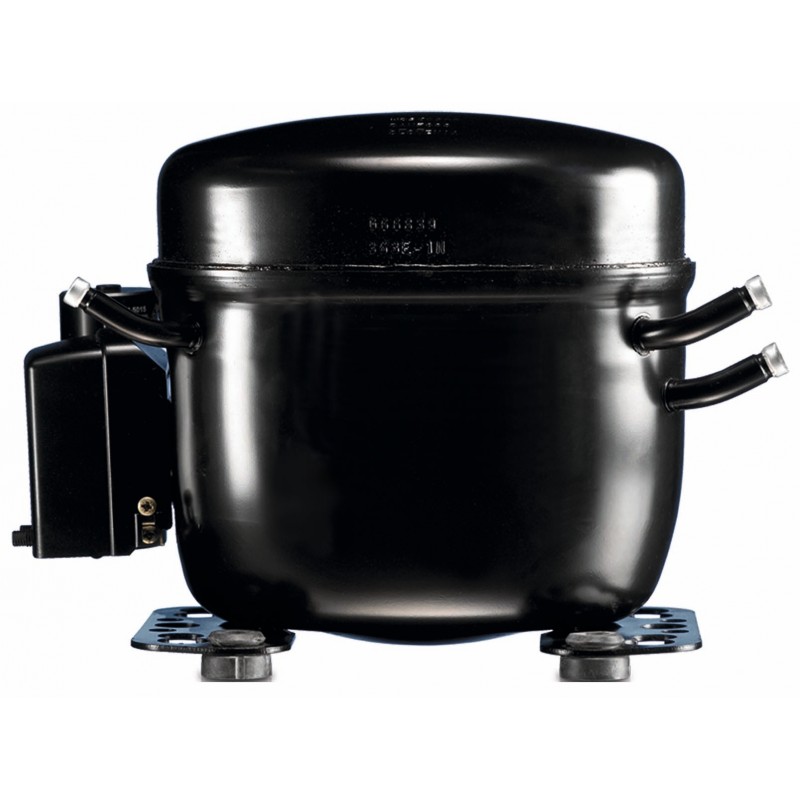

103G6890 DANFOSS REFRIGERATION Reciprocating compressor, FR10G View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

103G6890 DANFOSS REFRIGERATION Reciprocating compressor, FR10G

103G6890

DANFOSS REFRIGERATION

80

Reciprocating compressor, FR10G

More details


Home > DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Refrigerants: R134a, Compressor power supply [V]: 220/1/50 220/1/60

Product details

Gross weight10.6 Kg
Net weight10.6 Kg
Gross weight10.6 Kg
Net weight10.6 Kg

Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]11.9
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]11.9
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]220/1/50 220/1/60
Configuration codeSingle
Cut in current HST [A]10.9 A
Cut in current LST [A]15.1 A
DescriptionFR10G
Discharge connection angle [°]25 °
Discharge connection commentsAl-cap
Discharge connection diameter [mm]6.2 mm
Discharge connection materialCu-plated steel
EconomizerNo
FamilyFR
Free gas volume [cm3]1350 cm³
Frequency [Hz]50/60
Height from baseplate [mm]191 mm
High value of nominal voltage at 50Hz [V]230 V
High value of nominal voltage at 60Hz [V]230 V
High value of voltage range at 50Hz [V]254 V
High value of voltage range at 60Hz [V]254 V
In scope of WEEE and contain batteriesNo
Length [mm]243 mm
Liquid injectionNo
Low value of nominal voltage at 50Hz [V]220 V
Low value of nominal voltage at 60Hz [V]220 V
Low value of voltage range at 50Hz [V]198 V
Low value of voltage range at 60Hz [V]198 V
LRA HST 60Hz [A]10.9 A
LRA HST [A]10.9 A
LRA LST [A]10.5 A
Main winding resistance for single-phase compressors [Ohm]7.1
Model numberFR10G
Motor typeCSIR
RSIR
No. of phases (compressor)1
No. of phases (fan)1
Oil cooler connection commentsRubber cap
Oil cooler connection diameter [mm]6.2 mm
Oil cooler connection materialCopper
Oil quantity [cm3]450 cm³
Oil typePOE
Packing formatIndustrial pack
Phase1
Process connection angle [°]30 °
Process connection commentsAl-cap
Process connection diameter [mm]6.2 mm
Process connection materialCu-plated steel
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor FR
Refrigerant charge [kg] [Max]0.9 kg
RLA2.20 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
Suction connection angle [°]30 °
Suction connection diameter [mm]8.2 mm
Suction connection materialCu-plated steel
Swept volume [cm3]9.05 cm³
TechnologyReciprocating
Total height [mm]196 mm
TypeFR10
Voltage 50Hz [V]220 V
Voltage 50Hz [V] [Max]240 V
Voltage 60Hz [V]220 V
Voltage 60Hz [V] [Max]240 V
Width [mm]156 mm
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]125 °C
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]11.9
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]11.9
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]220/1/50 220/1/60
Configuration codeSingle
Cut in current HST [A]10.9 A
Cut in current LST [A]15.1 A
DescriptionFR10G
Discharge connection angle [°]25 °
Discharge connection commentsAl-cap
Discharge connection diameter [mm]6.2 mm
Discharge connection materialCu-plated steel
EconomizerNo
FamilyFR
Free gas volume [cm3]1350 cm³
Frequency [Hz]50/60
Height from baseplate [mm]191 mm
High value of nominal voltage at 50Hz [V]230 V
High value of nominal voltage at 60Hz [V]230 V
High value of voltage range at 50Hz [V]254 V
High value of voltage range at 60Hz [V]254 V
In scope of WEEE and contain batteriesNo
Length [mm]243 mm
Liquid injectionNo
Low value of nominal voltage at 50Hz [V]220 V
Low value of nominal voltage at 60Hz [V]220 V
Low value of voltage range at 50Hz [V]198 V
Low value of voltage range at 60Hz [V]198 V
LRA HST 60Hz [A]10.9 A
LRA HST [A]10.9 A
LRA LST [A]10.5 A
Main winding resistance for single-phase compressors [Ohm]7.1
Model numberFR10G
Motor typeCSIR
RSIR
No. of phases (compressor)1
No. of phases (fan)1
Oil cooler connection commentsRubber cap
Oil cooler connection diameter [mm]6.2 mm
Oil cooler connection materialCopper
Oil quantity [cm3]450 cm³
Oil typePOE
Packing formatIndustrial pack
Phase1
Process connection angle [°]30 °
Process connection commentsAl-cap
Process connection diameter [mm]6.2 mm
Process connection materialCu-plated steel
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor FR
Refrigerant charge [kg] [Max]0.9 kg
RLA2.20 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
Suction connection angle [°]30 °
Suction connection diameter [mm]8.2 mm
Suction connection materialCu-plated steel
Swept volume [cm3]9.05 cm³
TechnologyReciprocating
Total height [mm]196 mm
TypeFR10
Voltage 50Hz [V]220 V
Voltage 50Hz [V] [Max]240 V
Voltage 60Hz [V]220 V
Voltage 60Hz [V] [Max]240 V
Width [mm]156 mm
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]125 °C

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf 11 Mbytes
