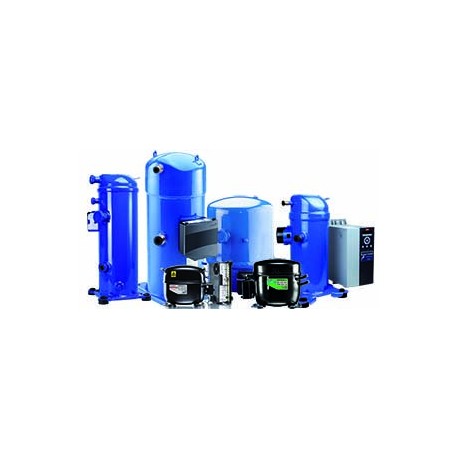

102U2102 DANFOSS REFRIGERATION Reciprocating compressor, TF4CLX
102U2102
DANFOSS REFRIGERATION
125
Reciprocating compressor, TF4CLX
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲| Gross weight | 8.6 Kg |
| Net weight | 8.1 Kg |
| Oil | POE |
| Height total [mm] | 173 mm |
| Applications | LBP MBP |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 3.8 Ohm |
| Amount of oil | 280 cm3 |
| Capacity of capacitor B | 280 uF |
| Capacity control | Fixed speed |
| Refrigerant charge [kg] [Max] | 0.6 kg |
| Color | Black |
| Comments on the suction connection | Rubber stopper |
| Comments on the discharge connection | Rubber stopper |
| Comments on the process connection | Rubber stopper |
| Current connection HST [A] | 20 To |
| Configuration code | Individual |
| Description | TF4CLX |
| Description | TF |
| Diameter of the suction connection [mm] | 6.5 mm |
| Diameter discharge connection [mm] | 5 mm |
| Economizer | Not |
| Packaging format | Industrial package |
| Frequency [Hz] | Sixty |
| Height from baseplate [mm] | 169 mm |
| LRA HST [A] | 20 To |
| Material of the discharge connection | Steel-plated Cu |
| Material of the process connection | Steel-plated Cu |
| Merged Approval standard and | UL |
| N. º of phases (compressor) | One |
| N. º of phases (fan) | One |
| Energy level of the application | Compressor LBP/MBP universal |
| Number of scheme | Eight thousand three hundred seventy |
| Model number | TF4CLX |
| Oil charge [L] | 280 L |
| Phase | One |
| Process connection diameter [mm] | 6.5 mm |
| Refrigerants | R404A R507 |
| Resistance of the primary winding for compressors in single-phase [Ohm] | 2.6 Ohm |
| RLA | 3.2 |
| Start capacitor capacitance | 280 µF |
| Swept volume [cm3] | 3.86 cm3 |
| Technology | Alternative |
| Temperature of the winding, the short-term [°C] [Max] | 135 °C |
| Winding temperature, stable [°C] [Max] | 125 °C |
| Voltage 60 Hz [V] [max.] | 127 V |
| Voltage, 60 Hz [V] | 115 V |
| Engine type | CSIR |
| Type of motherboard | EE. UU., small |
| Type designation | Compressor |
| Technique of the brand | Reciprocating compressors, type |
| Units of packing | One hundred twenty five |
| Use of segment | Refrigeration LT Refrigeration MT |
| High value of nominal voltage at 50 Hz [V] | 0 V |
| High value of the nominal voltage at 60 Hz [V] | 120 V |
| High value of voltage range at 50hz [V] | 0 V |
| High value of the voltage range at 60 Hz [V] | 135 V |
| Low value of the rated voltage at 50 Hz [V] | 0 V |
| Low value of the nominal voltage at 60 Hz [V] | 115 V |
| Low value of voltage range at 50hz [V] | 0 V |
| Low value of the voltage range at 60 Hz [V] | 103 V |
| Rotation speed at 50 Hz [rpm] | 0 rpm |
| Rotation speed at 60 Hz [rpm] | 3500 rpm |
| Volume of free gas [cm3] | 1690 cm3 |
| Angle of the connection suction [°] | 30 ° |
| Angle of the discharge connection [°] | 28 ° |
| Angle of the connection process | 32 ° |
