102U2071
DANFOSS REFRIGERATION
125

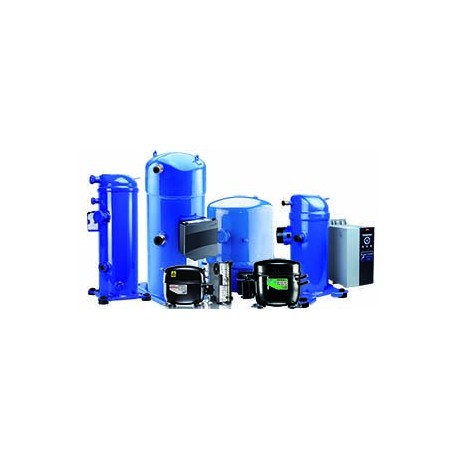

Reciprocating compressor, TL4CL
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Gross weight | 7.7 Kg |
Net weight | 7.57 Kg |
Oil | POE |
Height total [mm] | 173 mm |
Applications | LBP |
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 14.8 Ohm |
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 14.8 Ohm |
Amount of oil | 280 cm3 |
Capacity of capacitor B | 60 uF |
Capacity control | Fixed speed |
Refrigerant charge [kg] [Max] | 0.6 kg |
Color | Black |
Comments on the suction connection | Cover of The |
Comments on the discharge connection | Cover of The |
Comments on the process connection | Cover of The |
Current connection HST [A] | 5.7 To |
Current connection HST, alternative [A] | 5.7 To |
Current connection LST [A] | 9.7 |
Current connection LST, alternative [A] | 9.7 |
Configuration code | Individual |
Description | TL4CL |
Description | TL |
Diameter of the suction connection [mm] | 6.2 mm |
Diameter discharge connection [mm] | 5 mm |
Economizer | Not |
Packaging format | Industrial package |
Frequency [Hz] | Fifty |
Height from baseplate [mm] | 169 mm |
LRA HST [A] | 5.7 To |
LRA HST, alternative [A] | 5.7 To |
LRA LST [A] | 5.4 To |
LRA LST, alternative [A] | 5.4 To |
Material of the discharge connection | Steel-plated Cu |
Material of the process connection | Steel-plated Cu |
Merged Approval standard and | EC |
N. º of phases (compressor) | One |
N. º of phases (fan) | One |
Energy level of the application | Compressor LBP standard |
Number of scheme | Eight thousand two hundred sixty three |
Model number | TL4CL |
Oil charge [L] | 280 L |
Phase | One |
Process connection diameter [mm] | 6.2 mm |
Refrigerants | R404A R507 |
Resistance of the primary winding for compressors in single-phase [Ohm] | 14.5 Ohm |
Resistance of the primary winding for compressors in single-phase, alternative [ohm] | 14.5 Ohm |
RLA | 1.1 |
Start capacitor capacitance | 60 µF |
Swept volume [cm3] | 3.86 cm3 |
Technology | Alternative |
Temperature of the winding, the short-term [°C] [Max] | 135 °C |
Winding temperature, stable [°C] [Max] | 125 °C |
Voltage, 50 Hz [V] | 220 V |
Voltage, 50 Hz [V] [max.] | 240 V |
Engine type | CSIR |
Type of motherboard | EU, small |
Type designation | Compressor |
Technique of the brand | Reciprocating compressors, type |
Units of packing | One hundred twenty five |
Use of segment | Refrigeration LT |
High value of nominal voltage at 50 Hz [V] | 230 V |
High value of the nominal voltage at 60 Hz [V] | 0 V |
High value of voltage range at 50hz [V] | 254 V |
High value of the voltage range at 60 Hz [V] | 0 V |
Low value of the rated voltage at 50 Hz [V] | 220 V |
Low value of the nominal voltage at 60 Hz [V] | 0 V |
Low value of voltage range at 50hz [V] | 198 V |
Low value of the voltage range at 60 Hz [V] | 0 V |
Rotation speed at 50 Hz [rpm] | 2900 rpm |
Rotation speed at 60 Hz [rpm] | 0 rpm |
Volume of free gas [cm3] | 1690 cm3 |
Angle of the connection suction [°] | 30 ° |
Angle of the discharge connection [°] | 28 ° |
Angle of the connection process | 32 ° |
