DANFOSS REFRIGERATION102H4853 DANFOSS REFRIGERATION Reciprocating compressor, DLE7.5CN

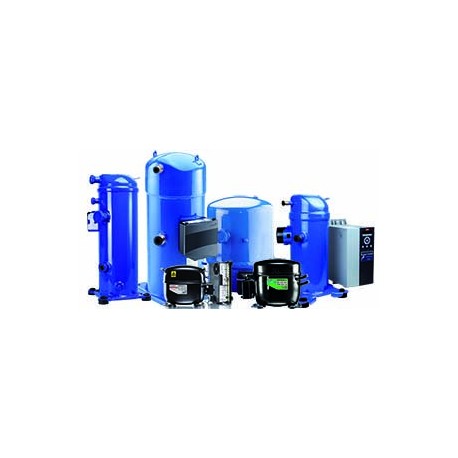

DANFOSS REFRIGERATION 102H4853 102H4853 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

102H4853 DANFOSS REFRIGERATION Reciprocating compressor, DLE7.5CN

Reference: 102H4853

Manufacturer: DANFOSS REFRIGERATION

Description:

Reciprocating compressor, DLE7.5CN

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Refrigerants: R290
Gross weight 8.2 Kg
Net weight 8 Kg
Oil POE
Applications LBP
MBP
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 8.34 Ohm
Amount of oil 230 cm3
Ability of the capacitor To 5 µF
Capacity of capacitor B 80 uF
Capacity control Fixed speed
Refrigerant charge [kg] [Max] 0.15 kg
Color Black
Current connection HST [A] 9.8 To
Current connection LST [A] 15.2
Configuration code Individual
Description DLE7.5CN
Description DLE
Economizer Not
Packaging format Industrial package
Frequency [Hz] Fifty
LRA HST [A] 9.8 To
LRA HST, alternative [A] 9.8 To
LRA LST [A] 9.6 To
Material of the discharge connection Copper
Material of the process connection Copper
Merged Approval standard and CCC
CE en 60335-2-34 with Annex AA
N. º of phases (compressor) One
N. º of phases (fan) One
Energy level of the application Compressor energy-optimized
Model number DLE7.5CN
Oil charge [L] 0.23 L
Phase One
Refrigerants R290
Resistance of the primary winding for compressors in single-phase [Ohm] 10.9 Ohm
RLA 2.0
Run capacitor capacitance 5 µF
Start capacitor capacitance 80 µF
Swept volume [cm3] 7.48 cm3
Technology Alternative
Temperature of the winding, the short-term [°C] [Max] 135 °C
Winding temperature, stable [°C] [Max] 125 °C
Voltage, 50 Hz [V] 220 V
Voltage, 50 Hz [V] [max.] 240 V
Engine type CSIR
RSCR
RSIR
Type of motherboard EU, small
Type designation Compressor
Technique of the brand Reciprocating compressors, type
Units of packing One hundred
Use of segment Refrigeration LT
Refrigeration MT
High value of nominal voltage at 50 Hz [V] 230 V
High value of the nominal voltage at 60 Hz [V] 0 V
High value of voltage range at 50hz [V] 254 V
High value of the voltage range at 60 Hz [V] 0 V
Low value of the rated voltage at 50 Hz [V] 220 V
Low value of the nominal voltage at 60 Hz [V] 0 V
Low value of voltage range at 50hz [V] 198 V
Low value of the voltage range at 60 Hz [V] 0 V
Rotation speed at 50 Hz [rpm] 2900 rpm
Rotation speed at 60 Hz [rpm] 0 rpm
Volume of free gas [cm3] 1 cm3
