DANFOSS REFRIGERATION102H4535 DANFOSS REFRIGERATION Reciprocating compressor, TLES5KK2

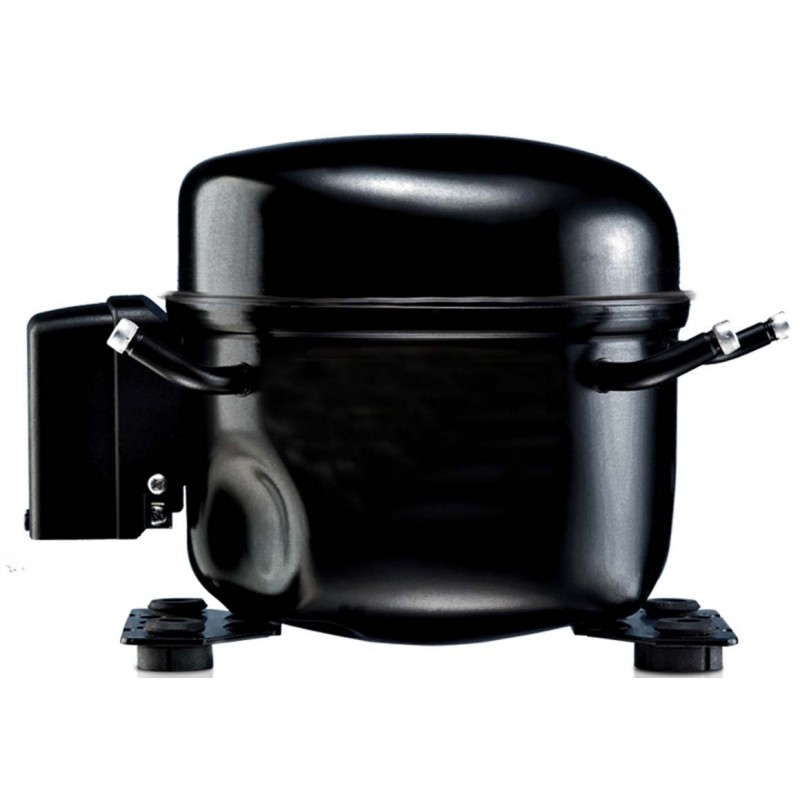

DANFOSS REFRIGERATION 102H4535 102H4535 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

102H4535 DANFOSS REFRIGERATION Reciprocating compressor, TLES5KK2

Reference: 102H4535

Manufacturer: DANFOSS REFRIGERATION

Description:

Reciprocating compressor, TLES5KK2

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Refrigerants: R600a, Segment usage: Refrigeration LT; Refrigeration MT

Product details

Gross weight7.5 Kg
Net weight7.5 Kg
Gross weight7.5 Kg
Net weight7.5 Kg

ApprovalCE
Approval standardEN 60335-2-34 with Annex AA
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]15.7
Brand techniqueReciprocating compressor
ColourBlack
Cut in current LST [A]7.6 A
DescriptionTLES5KK.2
Discharge connection angle [°]28 °
Discharge connection commentsAl-cap
Discharge connection diameter [mm]5 mm
Discharge connection materialCu-plated steel
Drawing number8244
FamilyTL
Free gas volume [cm3]1790 cm³
Height from baseplate [mm]169 mm
In scope of WEEE and contain batteriesNo
LRA LST [A]2.9 A
Main winding resistance for single-phase compressors [Ohm]25.7
Model numberTLES5KK2
Motor typeRSCR
RSIR
No. of phases (fan)1
Oil quantity [cm3]180 cm³
Oil typeMineral
Packing formatIndustrial pack
Process connection angle [°]32 °
Process connection commentsAl-cap
Process connection diameter [mm]6.2 mm
Process connection materialCu-plated steel
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor TL
Refrigerant charge [kg] [Max]0.15 kg
Run capacitor capacitance4 µF
Suction connection angle [°]30 °
Suction connection diameter [mm]6.2 mm
Suction connection materialCu-plated steel
Swept volume [cm3]5.08 cm³
TechnologyReciprocating
Total height [mm]173 mm
TypeTLES5
Voltage 50Hz [V]220 V
Voltage 50Hz [V] [Max]240 V
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]125 °C
ApprovalCE
Approval standardEN 60335-2-34 with Annex AA
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]15.7
Brand techniqueReciprocating compressor
ColourBlack
Cut in current LST [A]7.6 A
DescriptionTLES5KK.2
Discharge connection angle [°]28 °
Discharge connection commentsAl-cap
Discharge connection diameter [mm]5 mm
Discharge connection materialCu-plated steel
Drawing number8244
FamilyTL
Free gas volume [cm3]1790 cm³
Height from baseplate [mm]169 mm
In scope of WEEE and contain batteriesNo
LRA LST [A]2.9 A
Main winding resistance for single-phase compressors [Ohm]25.7
Model numberTLES5KK2
Motor typeRSCR
RSIR
No. of phases (fan)1
Oil quantity [cm3]180 cm³
Oil typeMineral
Packing formatIndustrial pack
Process connection angle [°]32 °
Process connection commentsAl-cap
Process connection diameter [mm]6.2 mm
Process connection materialCu-plated steel
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor TL
Refrigerant charge [kg] [Max]0.15 kg
Run capacitor capacitance4 µF
Suction connection angle [°]30 °
Suction connection diameter [mm]6.2 mm
Suction connection materialCu-plated steel
Swept volume [cm3]5.08 cm³
TechnologyReciprocating
Total height [mm]173 mm
TypeTLES5
Voltage 50Hz [V]220 V
Voltage 50Hz [V] [Max]240 V
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]125 °C

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN
11 Mbytes
