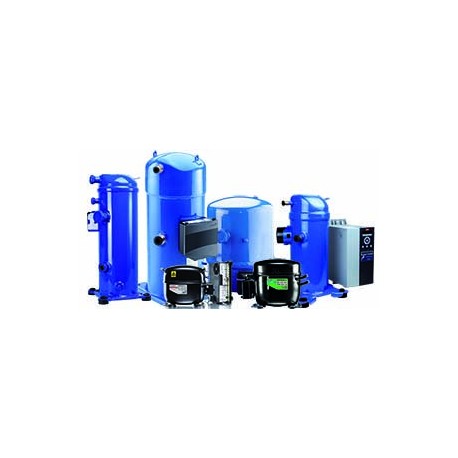

102G4720 DANFOSS REFRIGERATION Reciprocating compressor, TLS7F
102G4720
DANFOSS REFRIGERATION
Reciprocating compressor, TLS7F
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Refrigerants: R134a, Use of segment: Refrigeration LT
| Gross weight | 7.66 Kg |
| Net weight | 7.53 Kg |
| Oil | POE |
| Height total [mm] | 173 mm |
| Amps locked rotor HST [A] | 5.7 To |
| Amps locked rotor LST [A] | 5.4 To |
| Applications | LBP |
| Approval standard | EC |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 14.8 Ohm |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 14.8 Ohm |
| Oil quantity [cm3] | 180 cm3 |
| Ability of the capacitor To | 4 µF |
| Capacity of capacitor B | 60 uF |
| Capacity control | Fixed speed |
| Refrigerant charge [kg] [Max] | 0.4 kg |
| Color | Black |
| Comments on the suction connection | Cover of The |
| Comments on the discharge connection | Cover of The |
| Comments on the process connection | Cover of The |
| Current connection HST, alternative [A] | 5.7 To |
| Current connection LST, alternative [A] | 9.7 |
| Cut-in current HST [A] | 5.7 To |
| Cut-in current LST [A] | 9.7 |
| Configuration code | Individual |
| Description | TLS7F |
| Description | TL |
| Designation | Compressor |
| Diameter of the suction connection [mm] | 6.2 mm |
| Diameter discharge connection [mm] | 5 mm |
| Economizer | Not |
| Packaging format | Industrial package |
| Frequency [Hz] | Fifty |
| Height from baseplate [mm] | 169 mm |
| LRA HST, alternative [A] | 5.7 To |
| LRA LST, alternative [A] | 5.4 To |
| Material of the discharge connection | Steel-plated Cu |
| Material of the process connection | Steel-plated Cu |
| N. º of phases (compressor) | One |
| N. º of phases (fan) | One |
| Energy level of the application | Standard compressor |
| Number of scheme | Eight thousand two hundred sixty three |
| Model number | TLS7F |
| Oil charge [L] | 180 L |
| Phase | One |
| Process connection diameter [mm] | 6.2 mm |
| Refrigerants | R134a |
| Resistance of the primary winding for compressors in single-phase [Ohm] | 14.5 Ohm |
| Resistance of the primary winding for compressors in single-phase, alternative [ohm] | 14.5 Ohm |
| RLA | 1.1 |
| Run capacitor capacitance | 4 µF |
| Start capacitor capacitance | 60 µF |
| Swept volume [cm3] | 6.49 cm3 |
| Technology | Alternative |
| Temperature of the winding, the short-term [°C] [Max] | 135 °C |
| Winding temperature, stable [°C] [Max] | 125 °C |
| Voltage, 50 Hz [V] | 220 V |
| Voltage, 50 Hz [V] [max.] | 240 V |
| Engine type | CSIR RSCR RSIR |
| Type of motherboard | EU, small |
| Technique of the brand | Compressor alternative |
| Units of packing | One hundred twenty five |
| Use of segment | Refrigeration LT |
| High value of nominal voltage at 50 Hz [V] | 230 V |
| High value of the nominal voltage at 60 Hz [V] | 0 V |
| High value of voltage range at 50hz [V] | 254 V |
| High value of the voltage range at 60 Hz [V] | 0 V |
| Low value of the rated voltage at 50 Hz [V] | 220 V |
| Low value of the nominal voltage at 60 Hz [V] | 0 V |
| Low value of voltage range at 50hz [V] | 198 V |
| Low value of the voltage range at 60 Hz [V] | 0 V |
| Rotation speed at 50 Hz [rpm] | 2900 rpm |
| Rotation speed at 60 Hz [rpm] | 0 rpm |
| Volume of free gas [cm3] | 1790 cm3 |
| Angle of the connection suction [°] | 30 ° |
| Angle of the discharge connection [°] | 28 ° |
| Angle of the connection process | 32 ° |
