102G4501
DANFOSS REFRIGERATION
1

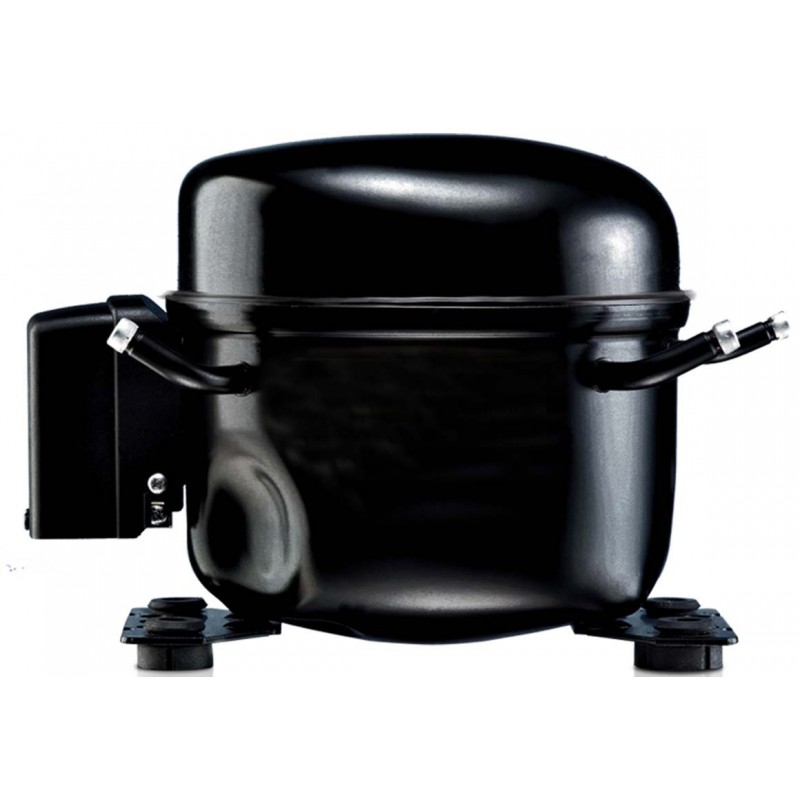

Reciprocating compressor, TL5F
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Refrigerants: R134a, Segment usage: Refrigeration LT, Compressor power supply [V]: 220-240/1/50
Gross weight | 7.593 Kg |
Net weight | 7.463 Kg |
Gross weight | 7.593 Kg |
Net weight | 7.463 Kg |
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 1510 |
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 15.1 |
Brand technique | Reciprocating compressor |
Capacity control | Fixed speed |
Colour | Black |
Compressor power supply [V] | 220-240/1/50 |
Configuration code | Single |
Cut in current HST [A] | 5.1 A |
Cut in current HST alt [A] | 5.1 A |
Cut in current LST [A] | 8.6 A |
Cut in current LST alt [A] | 8.6 A |
Description | TL5F |
Discharge connection angle [°] | 28 ° |
Discharge connection comments | Rubber plug |
Discharge connection diameter [mm] | 5 mm |
Discharge connection material | Copper |
Economizer | No |
Family | TL |
Free gas volume [cm3] | 1790 cm³ |
Frequency [Hz] | 50 |
Height from baseplate [mm] | 159 mm |
High value of nominal voltage at 50Hz [V] | 240 V |
High value of voltage range at 50Hz [V] | 264 V |
In scope of WEEE and contain batteries | No |
Length [mm] | 222 mm |
Liquid injection | No |
Low value of nominal voltage at 50Hz [V] | 220 V |
Low value of voltage range at 50Hz [V] | 198 V |
LRA HST 60Hz [A] | 5.1 A |
LRA HST [A] | 5.1 A |
LRA HST alt [A] | 5.1 A |
LRA LST [A] | 4.3 A |
LRA LST alt [A] | 4.3 A |
Main winding resistance for single-phase compressors [Ohm] | 18.2 |
Main winding resistance for single-phase compressors alt [Ohm] | 18.2 |
Model number | TL5F |
Motor type | CSIR RSIR |
No. of phases (compressor) | 1 |
No. of phases (fan) | 1 |
Oil quantity [cm3] | 180 cm³ |
Oil type | POE |
Packing format | Industrial pack |
Phase | 1 |
Process connection angle [°] | 32 ° |
Process connection comments | Rubber plug |
Process connection diameter [mm] | 6.2 mm |
Process connection material | Copper |
Product group | Hermetic compressors |
Product Name Description | Reciprocating compressor TL |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
Refrigerant charge [kg] [Max] | 0.4 kg |
RLA | 0.90 A |
Rotational speed at 50Hz [rpm] | 2900 rpm |
Start capacitor capacitance | 60 µF |
Suction connection angle [°] | 30 ° |
Suction connection diameter [mm] | 6.2 mm |
Suction connection material | Copper |
Swept volume [cm3] | 5.08 cm³ |
Technology | Reciprocating |
Total height [mm] | 163 mm |
Type | TL5 |
Voltage 50Hz [V] | 220 V |
Voltage 50Hz [V] [Max] | 240 V |
Width [mm] | 157 mm |
Winding temperature short term [°C] [Max] | 135 °C |
Winding temperature stat [°C] [Max] | 125 °C |
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 1510 |
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 15.1 |
Brand technique | Reciprocating compressor |
Capacity control | Fixed speed |
Colour | Black |
Compressor power supply [V] | 220-240/1/50 |
Configuration code | Single |
Cut in current HST [A] | 5.1 A |
Cut in current HST alt [A] | 5.1 A |
Cut in current LST [A] | 8.6 A |
Cut in current LST alt [A] | 8.6 A |
Description | TL5F |
Discharge connection angle [°] | 28 ° |
Discharge connection comments | Rubber plug |
Discharge connection diameter [mm] | 5 mm |
Discharge connection material | Copper |
Economizer | No |
Family | TL |
Free gas volume [cm3] | 1790 cm³ |
Frequency [Hz] | 50 |
Height from baseplate [mm] | 159 mm |
High value of nominal voltage at 50Hz [V] | 240 V |
High value of voltage range at 50Hz [V] | 264 V |
In scope of WEEE and contain batteries | No |
Length [mm] | 222 mm |
Liquid injection | No |
Low value of nominal voltage at 50Hz [V] | 220 V |
Low value of voltage range at 50Hz [V] | 198 V |
LRA HST 60Hz [A] | 5.1 A |
LRA HST [A] | 5.1 A |
LRA HST alt [A] | 5.1 A |
LRA LST [A] | 4.3 A |
LRA LST alt [A] | 4.3 A |
Main winding resistance for single-phase compressors [Ohm] | 18.2 |
Main winding resistance for single-phase compressors alt [Ohm] | 18.2 |
Model number | TL5F |
Motor type | CSIR RSIR |
No. of phases (compressor) | 1 |
No. of phases (fan) | 1 |
Oil quantity [cm3] | 180 cm³ |
Oil type | POE |
Packing format | Industrial pack |
Phase | 1 |
Process connection angle [°] | 32 ° |
Process connection comments | Rubber plug |
Process connection diameter [mm] | 6.2 mm |
Process connection material | Copper |
Product group | Hermetic compressors |
Product Name Description | Reciprocating compressor TL |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
Refrigerant charge [kg] [Max] | 0.4 kg |
RLA | 0.90 A |
Rotational speed at 50Hz [rpm] | 2900 rpm |
Start capacitor capacitance | 60 µF |
Suction connection angle [°] | 30 ° |
Suction connection diameter [mm] | 6.2 mm |
Suction connection material | Copper |
Swept volume [cm3] | 5.08 cm³ |
Technology | Reciprocating |
Total height [mm] | 163 mm |
Type | TL5 |
Voltage 50Hz [V] | 220 V |
Voltage 50Hz [V] [Max] | 240 V |
Width [mm] | 157 mm |
Winding temperature short term [°C] [Max] | 135 °C |
Winding temperature stat [°C] [Max] | 125 °C |
