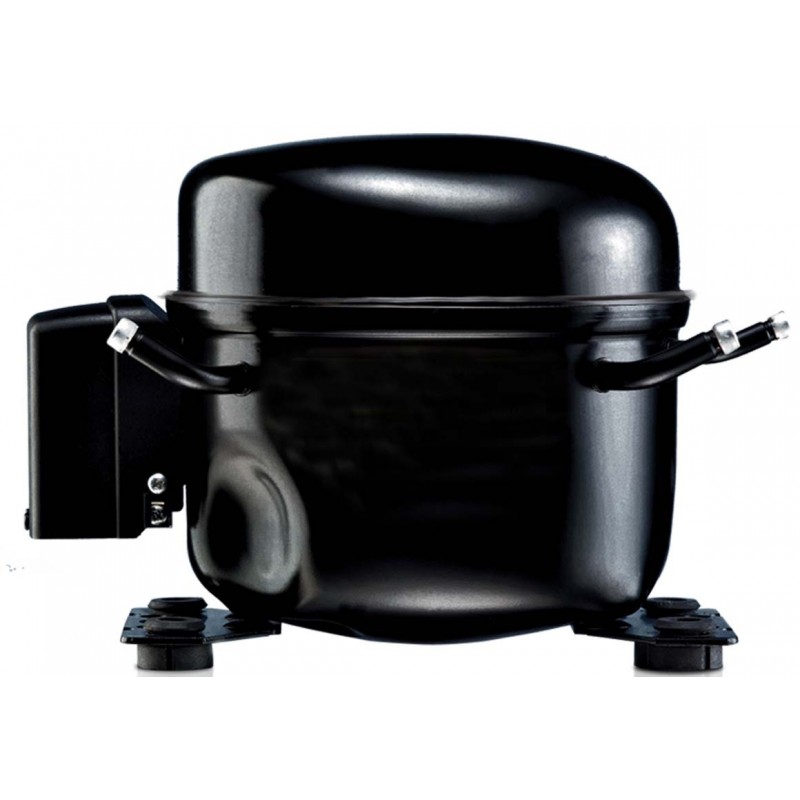

DANFOSS REFRIGERATION 102G4350 102G4350 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

102G4350 DANFOSS REFRIGERATION Reciprocating compressor, TL3G

Reference: 102G4350

Manufacturer: DANFOSS REFRIGERATION

Description:

Reciprocating compressor, TL3G

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Refrigerants: R134a, Segment usage: Refrigeration LT; Refrigeration HT; Refrigeration MT, Compressor power supply [V]: 220/1/50 220/1/60

Product details

Gross weight6.82 Kg
Net weight6.69 Kg
Gross weight6.82 Kg
Net weight6.69 Kg

Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]15.8
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]15.8
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]220/1/50 220/1/60
Configuration codeSingle
Cut in current HST [A]4.9 A
Cut in current HST alt [A]4.9 A
Cut in current LST [A]8.3 A
Cut in current LST alt [A]8 A
DescriptionTL3G
Discharge connection angle [°]28 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]5 mm
Discharge connection materialCopper
EconomizerNo
FamilyTL
Free gas volume [cm3]1500 cm³
Frequency [Hz]50/60
Height from baseplate [mm]159 mm
High value of nominal voltage at 50Hz [V]230 V
High value of nominal voltage at 60Hz [V]230 V
High value of voltage range at 50Hz [V]254 V
High value of voltage range at 60Hz [V]254 V
In scope of WEEE and contain batteriesNo
Length [mm]222 mm
Liquid injectionNo
Low value of nominal voltage at 50Hz [V]208 V
Low value of nominal voltage at 60Hz [V]220 V
Low value of voltage range at 50Hz [V]187 V
Low value of voltage range at 60Hz [V]198 V
LRA HST 60Hz [A]4.8 A
LRA HST [A]4.8 A
LRA HST alt [A]4.9 A
LRA LST [A]3.4 A
LRA LST alt [A]3.5 A
Main winding resistance for single-phase compressors [Ohm]24.6
Main winding resistance for single-phase compressors alt [Ohm]24.3
Model numberTL3G
Motor typeCSIR
RSIR
No. of phases (compressor)1
No. of phases (fan)1
Oil quantity [cm3]280 cm³
Oil typePOE
Packing formatIndustrial pack
Phase1
Process connection angle [°]32 °
Process connection commentsRubber plug
Process connection diameter [mm]6.2 mm
Process connection materialCopper
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor TL
Refrigerant charge [kg] [Max]0.4 kg
RLA0.80 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
Start capacitor capacitance60 µF
Suction connection angle [°]30 °
Suction connection diameter [mm]6.2 mm
Suction connection materialCopper
Swept volume [cm3]3.13 cm³
TechnologyReciprocating
Total height [mm]163 mm
TypeTL3
Voltage 50Hz [V]220 V
Voltage 50Hz [V] [Max]240 V
Voltage 60Hz [V]220 V
Voltage 60Hz [V] [Max]240 V
Width [mm]157 mm
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]125 °C
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]15.8
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]15.8
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]220/1/50 220/1/60
Configuration codeSingle
Cut in current HST [A]4.9 A
Cut in current HST alt [A]4.9 A
Cut in current LST [A]8.3 A
Cut in current LST alt [A]8 A
DescriptionTL3G
Discharge connection angle [°]28 °
Discharge connection commentsRubber plug
Discharge connection diameter [mm]5 mm
Discharge connection materialCopper
EconomizerNo
FamilyTL
Free gas volume [cm3]1500 cm³
Frequency [Hz]50/60
Height from baseplate [mm]159 mm
High value of nominal voltage at 50Hz [V]230 V
High value of nominal voltage at 60Hz [V]230 V
High value of voltage range at 50Hz [V]254 V
High value of voltage range at 60Hz [V]254 V
In scope of WEEE and contain batteriesNo
Length [mm]222 mm
Liquid injectionNo
Low value of nominal voltage at 50Hz [V]208 V
Low value of nominal voltage at 60Hz [V]220 V
Low value of voltage range at 50Hz [V]187 V
Low value of voltage range at 60Hz [V]198 V
LRA HST 60Hz [A]4.8 A
LRA HST [A]4.8 A
LRA HST alt [A]4.9 A
LRA LST [A]3.4 A
LRA LST alt [A]3.5 A
Main winding resistance for single-phase compressors [Ohm]24.6
Main winding resistance for single-phase compressors alt [Ohm]24.3
Model numberTL3G
Motor typeCSIR
RSIR
No. of phases (compressor)1
No. of phases (fan)1
Oil quantity [cm3]280 cm³
Oil typePOE
Packing formatIndustrial pack
Phase1
Process connection angle [°]32 °
Process connection commentsRubber plug
Process connection diameter [mm]6.2 mm
Process connection materialCopper
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor TL
Refrigerant charge [kg] [Max]0.4 kg
RLA0.80 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
Start capacitor capacitance60 µF
Suction connection angle [°]30 °
Suction connection diameter [mm]6.2 mm
Suction connection materialCopper
Swept volume [cm3]3.13 cm³
TechnologyReciprocating
Total height [mm]163 mm
TypeTL3
Voltage 50Hz [V]220 V
Voltage 50Hz [V] [Max]240 V
Voltage 60Hz [V]220 V
Voltage 60Hz [V] [Max]240 V
Width [mm]157 mm
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]125 °C
