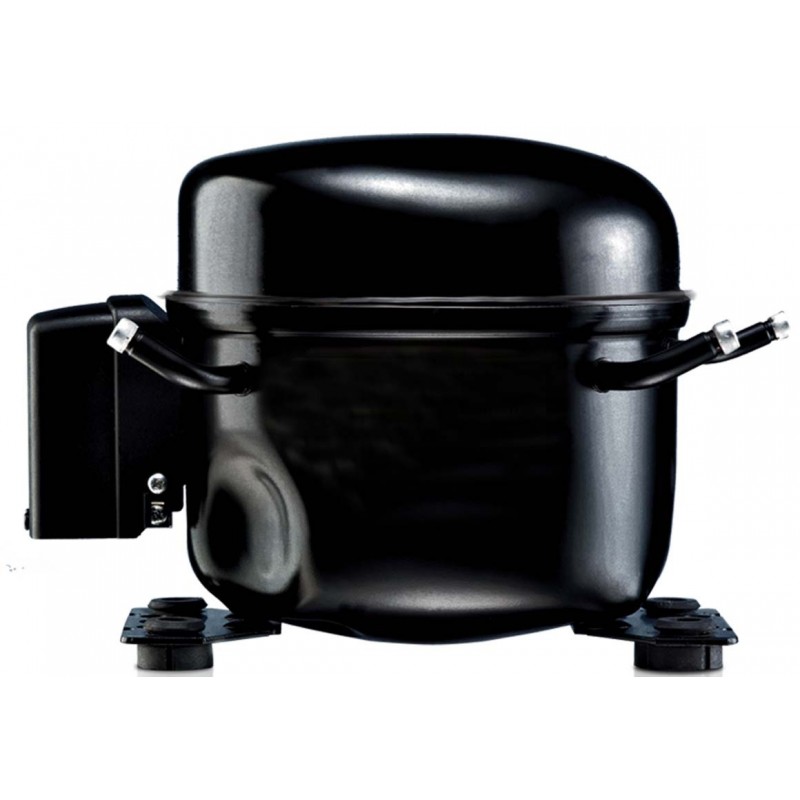

102G4200 DANFOSS REFRIGERATION Reciprocating compressor, TL2.5F
102G4200
DANFOSS REFRIGERATION
Reciprocating compressor, TL2.5F
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Refrigerants: R134a, Segment usage: Refrigeration LT; Refrigeration MT, Compressor power supply [V]: 220-240/1/50
Product details
| Gross weight | 6.7 Kg |
| Net weight | 6.57 Kg |
| EAN | 5702424681081 |
| Gross weight | 6.7 Kg |
| Net weight | 6.57 Kg |
| EAN | 5702424681081 |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 15.5 |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 15.5 |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V] | 220-240/1/50 |
| Configuration code | Single |
| Cut in current LST [A] | 6.8 A |
| Description | TL2.5F |
| Discharge connection angle [°] | 28 ° |
| Discharge connection comments | Al-cap |
| Discharge connection diameter [mm] | 5 mm |
| Discharge connection material | Cu-plated steel |
| Economizer | No |
| Family | TL |
| Free gas volume [cm3] | 1600 cm³ |
| Frequency [Hz] | 50 |
| Height from baseplate [mm] | 159 mm |
| High value of nominal voltage at 50Hz [V] | 240 V |
| High value of voltage range at 50Hz [V] | 264 V |
| In scope of WEEE and contain batteries | No |
| Length [mm] | 222 mm |
| Liquid injection | No |
| Low value of nominal voltage at 50Hz [V] | 220 V |
| Low value of voltage range at 50Hz [V] | 198 V |
| LRA LST [A] | 2.2 A |
| Main winding resistance for single-phase compressors [Ohm] | 41.2 |
| Model number | TL2.5F |
| Motor type | RSIR |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Oil quantity [cm3] | 180 cm³ |
| Oil type | POE |
| Packing format | Industrial pack |
| Phase | 1 |
| Process connection angle [°] | 32 ° |
| Process connection comments | Al-cap |
| Process connection diameter [mm] | 6.2 mm |
| Process connection material | Cu-plated steel |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor TL |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 0.4 kg |
| RLA | 0.50 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Suction connection angle [°] | 30 ° |
| Suction connection diameter [mm] | 6.2 mm |
| Suction connection material | Cu-plated steel |
| Swept volume [cm3] | 2.61 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 163 mm |
| Type | TL2.5 |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Width [mm] | 157 mm |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 15.5 |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 15.5 |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V] | 220-240/1/50 |
| Configuration code | Single |
| Cut in current LST [A] | 6.8 A |
| Description | TL2.5F |
| Discharge connection angle [°] | 28 ° |
| Discharge connection comments | Al-cap |
| Discharge connection diameter [mm] | 5 mm |
| Discharge connection material | Cu-plated steel |
| Economizer | No |
| Family | TL |
| Free gas volume [cm3] | 1600 cm³ |
| Frequency [Hz] | 50 |
| Height from baseplate [mm] | 159 mm |
| High value of nominal voltage at 50Hz [V] | 240 V |
| High value of voltage range at 50Hz [V] | 264 V |
| In scope of WEEE and contain batteries | No |
| Length [mm] | 222 mm |
| Liquid injection | No |
| Low value of nominal voltage at 50Hz [V] | 220 V |
| Low value of voltage range at 50Hz [V] | 198 V |
| LRA LST [A] | 2.2 A |
| Main winding resistance for single-phase compressors [Ohm] | 41.2 |
| Model number | TL2.5F |
| Motor type | RSIR |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Oil quantity [cm3] | 180 cm³ |
| Oil type | POE |
| Packing format | Industrial pack |
| Phase | 1 |
| Process connection angle [°] | 32 ° |
| Process connection comments | Al-cap |
| Process connection diameter [mm] | 6.2 mm |
| Process connection material | Cu-plated steel |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor TL |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 0.4 kg |
| RLA | 0.50 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Suction connection angle [°] | 30 ° |
| Suction connection diameter [mm] | 6.2 mm |
| Suction connection material | Cu-plated steel |
| Swept volume [cm3] | 2.61 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 163 mm |
| Type | TL2.5 |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Width [mm] | 157 mm |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
