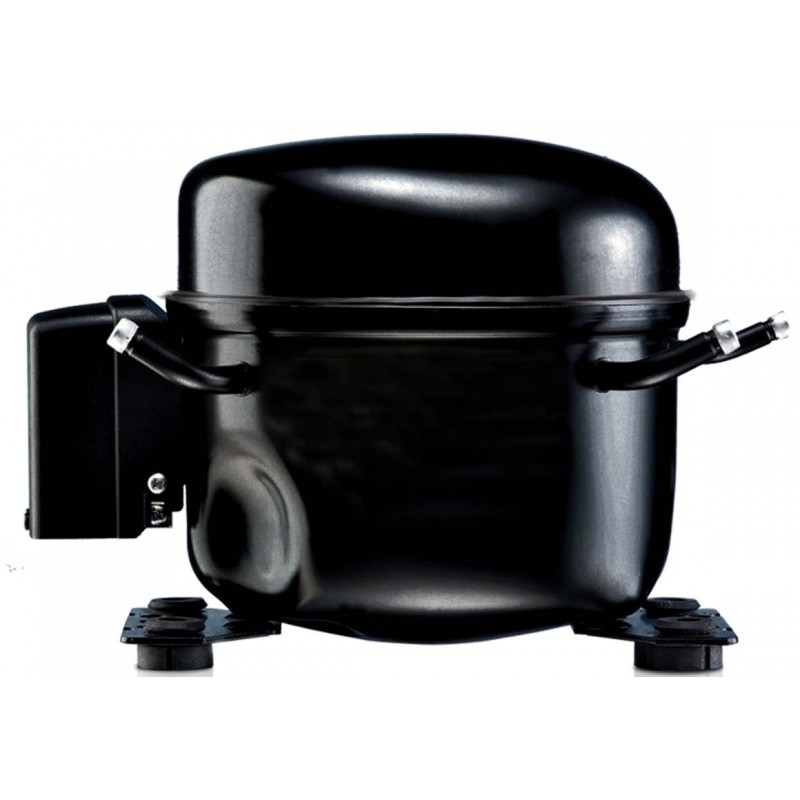

102G3431 DANFOSS REFRIGERATION Reciprocating compressor, TFS4F
102G3431
DANFOSS REFRIGERATION
Reciprocating compressor, TFS4F
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Refrigerants: R134a, Segment usage: Refrigeration LT, Compressor power supply [V]: 115/1/60
Product details
| Gross weight | 8 Kg |
| Net weight | 7.5 Kg |
| Gross weight | 8 Kg |
| Net weight | 7.5 Kg |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 7.8 |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 7.8 |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V] | 115/1/60 |
| Configuration code | Single |
| Cut in current LST [A] | 18.9 A |
| Description | TFS4F |
| Discharge connection angle [°] | 28 ° |
| Discharge connection comments | Rubber plug |
| Discharge connection diameter [mm] | 5 mm |
| Discharge connection material | Cu-plated steel |
| Economizer | No |
| Family | TF |
| Free gas volume [cm3] | 1790 cm³ |
| Frequency [Hz] | 60 |
| Height from baseplate [mm] | 169 mm |
| High value of nominal voltage at 60Hz [V] | 127 V |
| High value of voltage range at 60Hz [V] | 135 V |
| In scope of WEEE and contain batteries | No |
| Length [mm] | 226 mm |
| Liquid injection | No |
| Low value of nominal voltage at 60Hz [V] | 115 V |
| Low value of voltage range at 60Hz [V] | 95 V |
| LRA LST [A] | 18.9 A |
| Main winding resistance for single-phase compressors [Ohm] | 3.8 |
| Model number | TFS4F |
| Motor type | RSIR |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Oil quantity [cm3] | 180 cm³ |
| Oil type | POE |
| Packing format | Industrial pack |
| Process connection angle [°] | 32 ° |
| Process connection comments | Rubber plug |
| Process connection diameter [mm] | 6.5 mm |
| Process connection material | Cu-plated steel |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor TF |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 0.4 kg |
| RLA | 2.10 A |
| Rotational speed at 60Hz [rpm] | 3600 rpm |
| Speed Platform | Fixed-speed |
| Suction connection angle [°] | 30 ° |
| Suction connection diameter [mm] | 6.5 mm |
| Suction connection material | Cu-plated steel |
| Swept volume [cm3] | 3.86 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 173 mm |
| Type | TFS4 |
| Voltage 60Hz [V] | 115 V |
| Voltage 60Hz [V] [Max] | 127 V |
| Width [mm] | 157 mm |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 7.8 |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 7.8 |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V] | 115/1/60 |
| Configuration code | Single |
| Cut in current LST [A] | 18.9 A |
| Description | TFS4F |
| Discharge connection angle [°] | 28 ° |
| Discharge connection comments | Rubber plug |
| Discharge connection diameter [mm] | 5 mm |
| Discharge connection material | Cu-plated steel |
| Economizer | No |
| Family | TF |
| Free gas volume [cm3] | 1790 cm³ |
| Frequency [Hz] | 60 |
| Height from baseplate [mm] | 169 mm |
| High value of nominal voltage at 60Hz [V] | 127 V |
| High value of voltage range at 60Hz [V] | 135 V |
| In scope of WEEE and contain batteries | No |
| Length [mm] | 226 mm |
| Liquid injection | No |
| Low value of nominal voltage at 60Hz [V] | 115 V |
| Low value of voltage range at 60Hz [V] | 95 V |
| LRA LST [A] | 18.9 A |
| Main winding resistance for single-phase compressors [Ohm] | 3.8 |
| Model number | TFS4F |
| Motor type | RSIR |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Oil quantity [cm3] | 180 cm³ |
| Oil type | POE |
| Packing format | Industrial pack |
| Process connection angle [°] | 32 ° |
| Process connection comments | Rubber plug |
| Process connection diameter [mm] | 6.5 mm |
| Process connection material | Cu-plated steel |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor TF |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerant charge [kg] [Max] | 0.4 kg |
| RLA | 2.10 A |
| Rotational speed at 60Hz [rpm] | 3600 rpm |
| Speed Platform | Fixed-speed |
| Suction connection angle [°] | 30 ° |
| Suction connection diameter [mm] | 6.5 mm |
| Suction connection material | Cu-plated steel |
| Swept volume [cm3] | 3.86 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 173 mm |
| Type | TFS4 |
| Voltage 60Hz [V] | 115 V |
| Voltage 60Hz [V] [Max] | 127 V |
| Width [mm] | 157 mm |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
