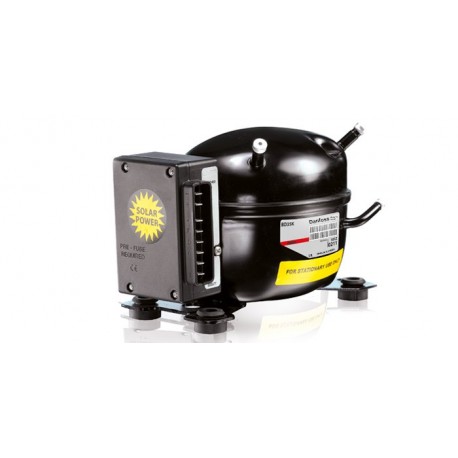

101Z0211 DANFOSS REFRIGERATION Reciprocating compressor, Direct current (solar) compressor, BD35K
101Z0211
DANFOSS REFRIGERATION
30
Reciprocating compressor, Direct current (solar) compressor, BD35K
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Refrigerants: R600a, Voltage, c. c. [V] [Min]: 10, Voltage, c. c. [V] [Max]: 45
| Gross weight | 8.69 Kg |
| Net weight | 4.3 Kg |
| Oil | POE |
| Height total [mm] | 137 mm |
| Applications | BPH LBP MBP |
| Amount of oil | 150 cm3 |
| Capacity control | Fixed speed |
| Refrigerant charge [kg] [Max] | 0.12 kg |
| Color | Black |
| Comments on the suction connection | Cover of The |
| Comments on the discharge connection | Cover of The |
| Comments on the process connection | Cover of The |
| Configuration code | Individual |
| Description | BD35K |
| Description | BD |
| Discharge connection height [mm] | 73 mm |
| Diameter of the suction connection [mm] | 6.2 mm |
| Diameter discharge connection [mm] | 5 mm |
| Economizer | Not |
| Packaging format | Industrial package |
| Frequency [Hz] | DC-12/24V |
| Height from baseplate [mm] | 135 mm |
| Material of the discharge connection | Steel-plated Cu |
| Material of the process connection | Steel-plated Cu |
| N. º of phases (compressor) | Zero |
| Energy level of the application | Compressor (solar) dc |
| Number of scheme | Eight thousand two hundred sixty nine |
| Model number | BD35K |
| Oil charge [L] | 150 L |
| Process connection diameter [mm] | 6.2 mm |
| Refrigerants | R600a |
| Resistance of the primary winding for compressors in single-phase [Ohm] | 1.8 Ohm |
| Suction connection height [mm] | 128 mm |
| Swept volume [cm3] | 3 cm3 |
| Technology | Alternative |
| Temperature of the winding, the short-term [°C] [Max] | 135 °C |
| Winding temperature, stable [°C] [Max] | 125 °C |
| Voltage, c. c. [V] [Max] | 45 V |
| Voltage, c. c. [V] [Min] | 10 V |
| Engine type | DC/PM |
| Type of motherboard | EU, small |
| Type designation | Compressor |
| Technique of the brand | Reciprocating compressors, type |
| Units of packing | One hundred fifty |
| Use of segment | Refrigeration LT Refrigeration MT |
| High value of nominal voltage at 50 Hz [V] | 0 V |
| High value of the nominal voltage at 60 Hz [V] | 0 V |
| High value of voltage range at 50hz [V] | 0 V |
| High value of the voltage range at 60 Hz [V] | 0 V |
| High value of the voltage range c. c [V] | 45 V |
| Low value of the rated voltage at 50 Hz [V] | 0 V |
| Low value of the nominal voltage at 60 Hz [V] | 0 V |
| Low value of voltage range at 50hz [V] | 0 V |
| Low value of the voltage range at 60 Hz [V] | 0 V |
| Low value of the voltage range c. c [V] | 10 V |
| Rotation speed at 50 Hz [rpm] | 0 rpm |
| Rotation speed at 60 Hz [rpm] | 0 rpm |
| Volume of free gas [cm3] | 870 cm3 |
| Angle of the connection suction [°] | 40 ° |
| Angle of the discharge connection [°] | 21 ° |
| Angle of the connection process | 45 ° |
