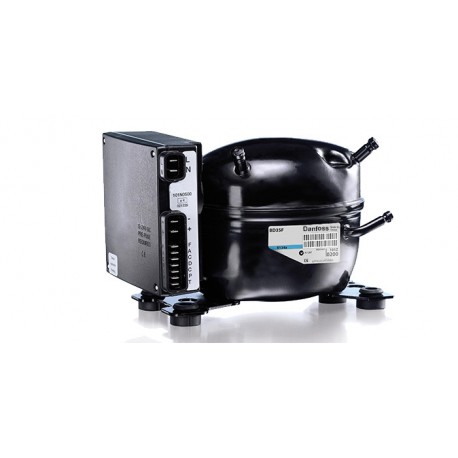

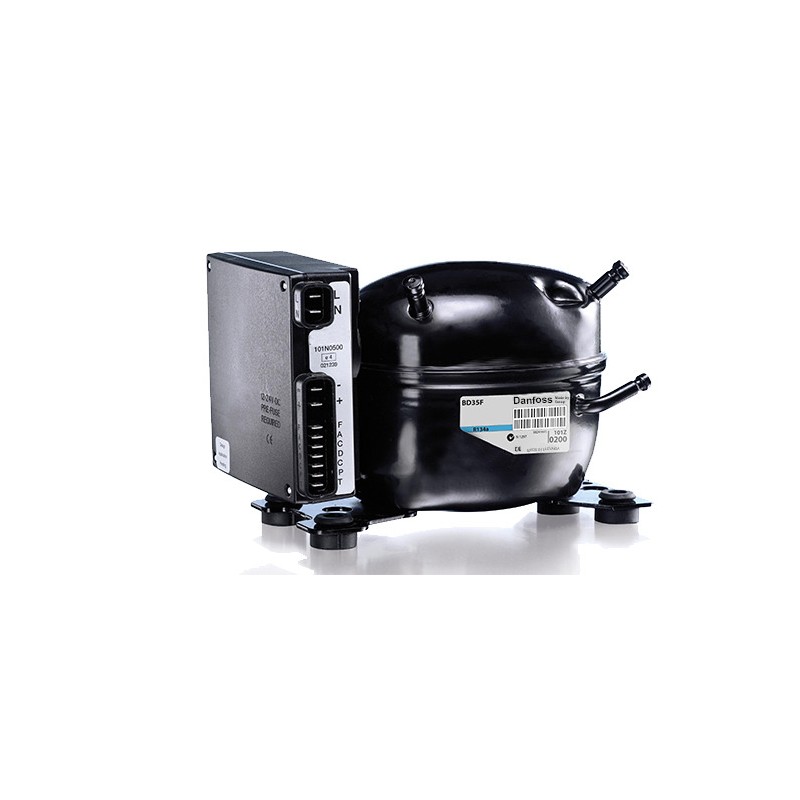

101Z0200 DANFOSS REFRIGERATION Reciprocating compressor, Direct current compressor, BD35F
101Z0200
DANFOSS REFRIGERATION
30
Reciprocating compressor, Direct current compressor, BD35F
Reciprocating compressor, BD35F
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Refrigerants: R134a, Segment usage: Refrigeration LT; Refrigeration HT; Refrigeration MT, Compressor power supply [V]: 12-24/DC 110-220/1/60
Product details
| Gross weight | 4.257 Kg |
| Net weight | 4.257 Kg |
| Volume | 5.186 Liter |
| EAN | 5702428840118 |
| Gross weight | 4.257 Kg |
| Net weight | 4.257 Kg |
| Volume | 5.186 Liter |
| EAN | 5702428840118 |
| Applications | HBP LBP MBP |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V] | 12-24/DC 110-220/1/60 |
| Configuration code | Single |
| Description | BD35F |
| Discharge connection angle [°] | 21 ° |
| Discharge connection comments | Al-cap |
| Discharge connection diameter [mm] | 5 mm |
| Discharge connection height [mm] | 38 mm |
| Discharge connection material | Cu-plated steel |
| Economizer | No |
| Family | BD |
| Free gas volume [cm3] | 870 cm³ |
| Frequency [Hz] | DC-12V |
| Height from baseplate [mm] | 91 mm |
| High value of voltage range at DC [V] | 31 V |
| In scope of WEEE and contain batteries | No |
| Length [mm] | 178 mm |
| Liquid injection | No |
| Low value of voltage range DC [V] | 9 V |
| Main winding resistance for single-phase compressors [Ohm] | 2.2 |
| Model number | BD35F |
| Motor type | DC/PM |
| No. of phases (compressor) | 0 |
| Oil quantity [cm3] | 150 cm³ |
| Oil type | POE |
| Packing format | Industrial pack |
| Packing quantity | 150 |
| Process connection angle [°] | 45 ° |
| Process connection comments | Al-cap |
| Process connection diameter [mm] | 6.2 mm |
| Process connection height [mm] | 81 mm |
| Process connection material | Cu-plated steel |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor BD |
| REACH Candidate List substances | No |
| Refrigerant charge [kg] [Max] | 0.3 kg |
| Refrigerants | R134a |
| Segment usage | Refrigeration HT Refrigeration LT Refrigeration MT |
| Suction connection angle [°] | 40 ° |
| Suction connection diameter [mm] | 6.2 mm |
| Suction connection height [mm] | 81 mm |
| Suction connection material | Cu-plated steel |
| Swept volume [cm3] | 2 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 96 mm |
| Type | BD35 |
| Voltage DC [V] [Max] | 24 V |
| Voltage DC [V] [Min] | 12 V |
| Width [mm] | 100 mm |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
| Applications | HBP LBP MBP |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V] | 12-24/DC 110-220/1/60 |
| Configuration code | Single |
| Description | BD35F |
| Discharge connection angle [°] | 21 ° |
| Discharge connection comments | Al-cap |
| Discharge connection diameter [mm] | 5 mm |
| Discharge connection height [mm] | 38 mm |
| Discharge connection material | Cu-plated steel |
| Economizer | No |
| Family | BD |
| Free gas volume [cm3] | 870 cm³ |
| Frequency [Hz] | DC-12V |
| Height from baseplate [mm] | 91 mm |
| High value of voltage range at DC [V] | 31 V |
| In scope of WEEE and contain batteries | No |
| Length [mm] | 178 mm |
| Liquid injection | No |
| Low value of voltage range DC [V] | 9 V |
| Main winding resistance for single-phase compressors [Ohm] | 2.2 |
| Model number | BD35F |
| Motor type | DC/PM |
| No. of phases (compressor) | 0 |
| Oil quantity [cm3] | 150 cm³ |
| Oil type | POE |
| Packing format | Industrial pack |
| Packing quantity | 150 |
| Process connection angle [°] | 45 ° |
| Process connection comments | Al-cap |
| Process connection diameter [mm] | 6.2 mm |
| Process connection height [mm] | 81 mm |
| Process connection material | Cu-plated steel |
| Product group | Hermetic compressors |
| Product Name Description | Reciprocating compressor BD |
| REACH Candidate List substances | No |
| Refrigerant charge [kg] [Max] | 0.3 kg |
| Refrigerants | R134a |
| Segment usage | Refrigeration HT Refrigeration LT Refrigeration MT |
| Suction connection angle [°] | 40 ° |
| Suction connection diameter [mm] | 6.2 mm |
| Suction connection height [mm] | 81 mm |
| Suction connection material | Cu-plated steel |
| Swept volume [cm3] | 2 cm³ |
| Technology | Reciprocating |
| Total height [mm] | 96 mm |
| Type | BD35 |
| Voltage DC [V] [Max] | 24 V |
| Voltage DC [V] [Min] | 12 V |
| Width [mm] | 100 mm |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
