DANFOSS REFRIGERATION101G0250 DANFOSS REFRIGERATION Reciprocating compressor, PL35G

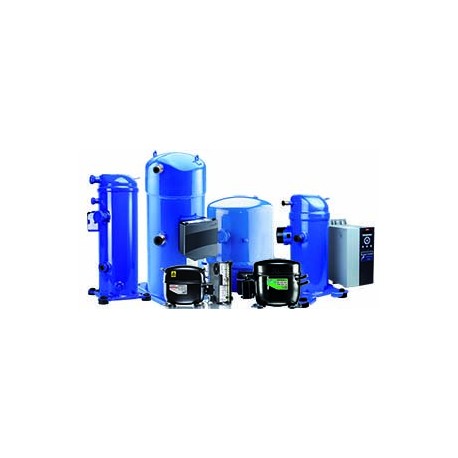

DANFOSS REFRIGERATION 101G0250 101G0250 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

101G0250 DANFOSS REFRIGERATION Reciprocating compressor, PL35G

Reference: 101G0250

Manufacturer: DANFOSS REFRIGERATION

Description:

Reciprocating compressor, PL35G

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Refrigerants: R134a
Gross weight 4.93 Kg
Net weight 4.93 Kg
Oil POE
Height total [mm] 137 mm
Applications BPH
MBP
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 14 Ohm
Amount of oil 150 cm3
Capacity of capacitor B 60 uF
Capacity control Fixed speed
Refrigerant charge [kg] [Max] 0.3 kg
Color Black
Comments on the suction connection Cover of The
Comments on the discharge connection Cover of The
Comments on the process connection Cover of The
Current connection HST [A] 4.2 To
Current connection LST [A] 6.9 To
Configuration code Individual
Description PL35G
Description PL
Discharge connection height [mm] 73 mm
Diameter of the suction connection [mm] 6.2 mm
Diameter discharge connection [mm] 5 mm
Economizer Not
Packaging format Industrial package
Frequency [Hz] 50/60
Height from baseplate [mm] 135 mm
LRA HST [A] 4.2 To
LRA LST [A] 2.2 To
Material of the discharge connection Steel-plated Cu
Material of the process connection Steel-plated Cu
Merged Approval standard and EC
N. º of phases (compressor) One
N. º of phases (fan) One
Energy level of the application Compressor MBP/HBP universal
Number of scheme Eight thousand two hundred forty one
Model number PL35G
Oil charge [L] 150 L
Phase One
Process connection diameter [mm] 6.2 mm
Refrigerants R134a
Resistance of the primary winding for compressors in single-phase [Ohm] 38 Ohm
RLA 0.5 To
Start capacitor capacitance 60 µF
Suction connection height [mm] 128 mm
Swept volume [cm3] 2 cm3
Technology Alternative
Temperature of the winding, the short-term [°C] [Max] 135 °C
Winding temperature, stable [°C] [Max] 125 °C
Voltage 60 Hz [V] [max.] 240 V
Voltage, 50 Hz [V] 220 V
Voltage, 50 Hz [V] [max.] 240 V
Voltage, 60 Hz [V] 220 V
Engine type CSIR
RSIR
Type of motherboard EU, small
Type designation Compressor
Technique of the brand Reciprocating compressors, type
Units of packing One hundred fifty
Use of segment Refrigeration MT
High value of nominal voltage at 50 Hz [V] 230 V
High value of the nominal voltage at 60 Hz [V] 230 V
High value of voltage range at 50hz [V] 254 V
High value of the voltage range at 60 Hz [V] 254 V
Low value of the rated voltage at 50 Hz [V] 220 V
Low value of the nominal voltage at 60 Hz [V] 220 V
Low value of voltage range at 50hz [V] 198 V
Low value of the voltage range at 60 Hz [V] 198 V
Rotation speed at 50 Hz [rpm] 2900 rpm
Rotation speed at 60 Hz [rpm] 3500 rpm
Volume of free gas [cm3] 850 cm3
Angle of the connection suction [°] 40 °
Angle of the discharge connection [°] 21 °
Angle of the connection process 45 °
