DANFOSS REFRIGERATION101G0202 DANFOSS REFRIGERATION Reciprocating compressor, PL35F

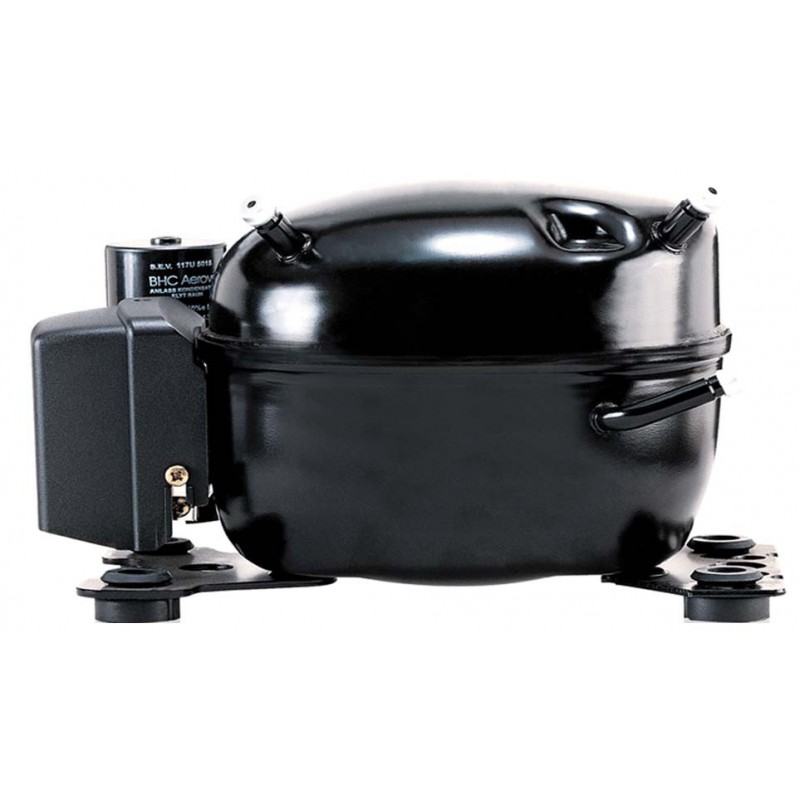

DANFOSS REFRIGERATION 101G0202 101G0202 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

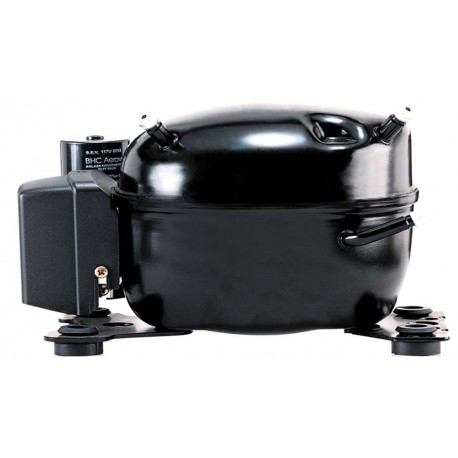

101G0202 DANFOSS REFRIGERATION Reciprocating compressor, PL35F

Reference: 101G0202

Manufacturer: DANFOSS REFRIGERATION

Description:

Reciprocating compressor, PL35F

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Refrigerants: R134a, Segment usage: Refrigeration MT, Compressor power supply [V]: 220-240/1/50

Product details

Gross weight4.666 Kg
Net weight4.666 Kg
Volume6.198 Liter
Gross weight4.666 Kg
Net weight4.666 Kg
Volume6.198 Liter

Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]19
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]19
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]220-240/1/50
Configuration codeSingle
Cut in current LST [A]5.6 A
DescriptionPL35F
Discharge connection angle [°]21 °
Discharge connection commentsAl-cap
Discharge connection diameter [mm]5 mm
Discharge connection height [mm]73 mm
Discharge connection materialCu-plated steel
EconomizerNo
FamilyPL
Free gas volume [cm3]830 cm³
Frequency [Hz]50
Height from baseplate [mm]127 mm
High value of nominal voltage at 50Hz [V]240 V
High value of voltage range at 50Hz [V]264 V
In scope of WEEE and contain batteriesNo
Length [mm]206 mm
Liquid injectionNo
Low value of nominal voltage at 50Hz [V]220 V
Low value of voltage range at 50Hz [V]198 V
LRA LST [A]1.7 A
Main winding resistance for single-phase compressors [Ohm]52
Model numberPL35F
Motor typeRSIR
No. of phases (compressor)1
No. of phases (fan)1
Oil quantity [cm3]150 cm³
Oil typePOE
Packing formatIndustrial pack
Phase1
Process connection angle [°]45 °
Process connection commentsAl-cap
Process connection diameter [mm]6.2 mm
Process connection height [mm]120 mm
Process connection materialCu-plated steel
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor PL
REACH Candidate List substancesNo
Refrigerant charge [kg] [Max]0.3 kg
RLA0.40 A
Rotational speed at 50Hz [rpm]2900 rpm
Suction connection angle [°]40 °
Suction connection diameter [mm]6.2 mm
Suction connection height [mm]120 mm
Suction connection materialCu-plated steel
Swept volume [cm3]2 cm³
TechnologyReciprocating
Total height [mm]129 mm
TypePL35
Voltage 50Hz [V]220 V
Voltage 50Hz [V] [Max]240 V
Width [mm]130 mm
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]125 °C
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]19
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]19
Brand techniqueReciprocating compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V]220-240/1/50
Configuration codeSingle
Cut in current LST [A]5.6 A
DescriptionPL35F
Discharge connection angle [°]21 °
Discharge connection commentsAl-cap
Discharge connection diameter [mm]5 mm
Discharge connection height [mm]73 mm
Discharge connection materialCu-plated steel
EconomizerNo
FamilyPL
Free gas volume [cm3]830 cm³
Frequency [Hz]50
Height from baseplate [mm]127 mm
High value of nominal voltage at 50Hz [V]240 V
High value of voltage range at 50Hz [V]264 V
In scope of WEEE and contain batteriesNo
Length [mm]206 mm
Liquid injectionNo
Low value of nominal voltage at 50Hz [V]220 V
Low value of voltage range at 50Hz [V]198 V
LRA LST [A]1.7 A
Main winding resistance for single-phase compressors [Ohm]52
Model numberPL35F
Motor typeRSIR
No. of phases (compressor)1
No. of phases (fan)1
Oil quantity [cm3]150 cm³
Oil typePOE
Packing formatIndustrial pack
Phase1
Process connection angle [°]45 °
Process connection commentsAl-cap
Process connection diameter [mm]6.2 mm
Process connection height [mm]120 mm
Process connection materialCu-plated steel
Product groupHermetic compressors
Product Name DescriptionReciprocating compressor PL
REACH Candidate List substancesNo
Refrigerant charge [kg] [Max]0.3 kg
RLA0.40 A
Rotational speed at 50Hz [rpm]2900 rpm
Suction connection angle [°]40 °
Suction connection diameter [mm]6.2 mm
Suction connection height [mm]120 mm
Suction connection materialCu-plated steel
Swept volume [cm3]2 cm³
TechnologyReciprocating
Total height [mm]129 mm
TypePL35
Voltage 50Hz [V]220 V
Voltage 50Hz [V] [Max]240 V
Width [mm]130 mm
Winding temperature short term [°C] [Max]135 °C
Winding temperature stat [°C] [Max]125 °C
