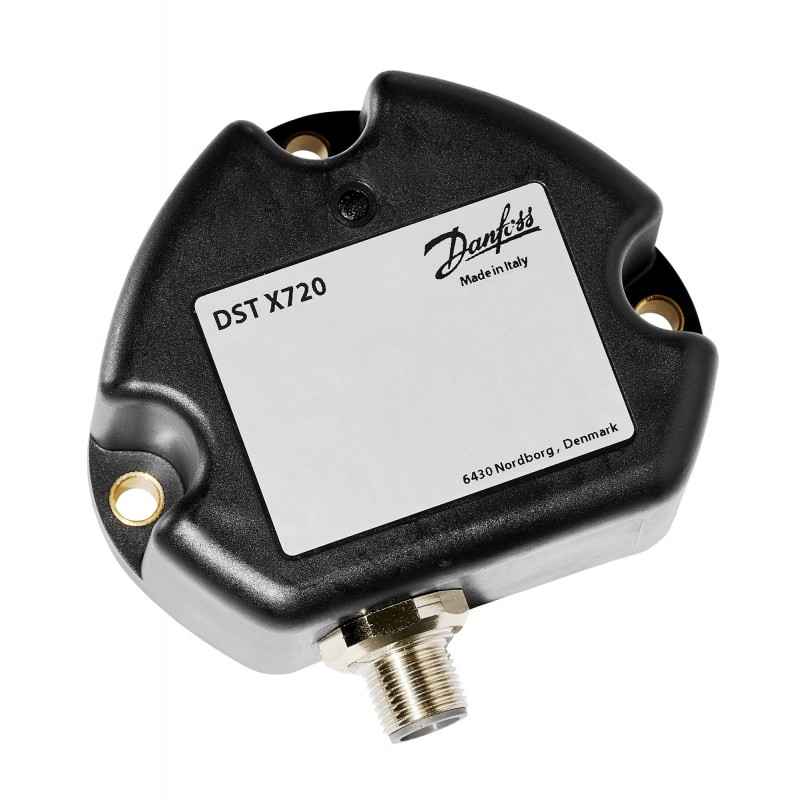

098G3002 DANFOSS REFRIGERATION Inclination position sensor, DST X720, 85 °, Single, CAN-open
Reference: 098G3002
Manufacturer: DANFOSS REFRIGERATION
Description:
Inclination position sensor, DST X720, 85 °, Single, CAN-open
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
LAST VIEWED
MORE INFO
Supply voltage [V] DC: 10 - 36, Electrical connection: M12 x 1, Axis type: Dual, Specification key: MOS085000HC10 0033X00
Product details
| Gross weight | 0.287 Kilogram |
| Net weight | 0.2 Kilogram |
| Volume | 0.945 Liter |
| EAN | 5702428647090 |
| Type | DST X720 |
| Product group | Sensors |
| Product Name Description | Inclination position sensor |
| Gross weight | 0.287 Kilogram |
| Net weight | 0.2 Kilogram |
| Volume | 0.945 Liter |
| EAN | 5702428647090 |
| Type | DST X720 |
| Product group | Sensors |
| Product Name Description | Inclination position sensor |
| Accessories | NO |
| Approval | CE |
| Axis type | Dual |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Circuit Type | Single |
| Contains batteries | No |
| Electrical connection | M12 x 1 |
| Electrical connection size | 5 pin |
| Electrical connection standard | IEC 61076-2-101 |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Measuring range 1 [°] | 85 ° |
| Output signal | CAN-open |
| Packing format | Multi pack |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 26cd0945-18dc-4106-9b67-baa796b3dc88 |
| SCIP dossier product name | GIG |
| Specification key | MOS085000HC10 0033X00 |
| Supply voltage [V] DC [max] | 36 V |
| Supply voltage [V] DC [min] | 10 V |
| UL mark | No |
| Accessories | NO |
| Approval | CE |
| Axis type | Dual |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Circuit Type | Single |
| Contains batteries | No |
| Electrical connection | M12 x 1 |
| Electrical connection size | 5 pin |
| Electrical connection standard | IEC 61076-2-101 |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Measuring range 1 [°] | 85 ° |
| Output signal | CAN-open |
| Packing format | Multi pack |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 26cd0945-18dc-4106-9b67-baa796b3dc88 |
| SCIP dossier product name | GIG |
| Specification key | MOS085000HC10 0033X00 |
| Supply voltage [V] DC [max] | 36 V |
| Supply voltage [V] DC [min] | 10 V |
| UL mark | No |
