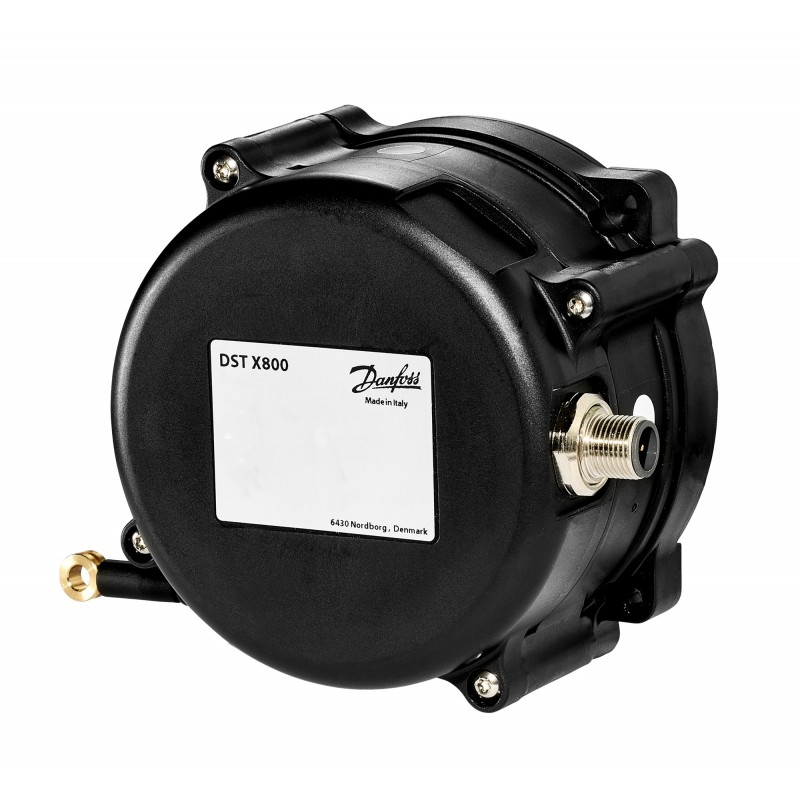

098G2000 DANFOSS REFRIGERATION Wire position sensor, DST X800, 1800 mm, Single, 0.5 4.5 V
098G2000
DANFOSS REFRIGERATION
Wire position sensor, DST X800, 1800 mm, Single, 0.5 - 4.5 V
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Supply voltage [V] DC: 10 - 36, Electrical connection: M12 x 1, Electrical connection size: 5 pin, Measuring range [mm]: 1800, Specification key: SN1S1800HA1 0033X00
Product details
| Gross weight | 0.724 Kilogram |
| Net weight | 0.53 Kilogram |
| Volume | 4.451 Liter |
| EAN | 5702428646932 |
| Type | DST X800 |
| Product group | Sensors |
| Product Name Description | Wire position sensor |
| Gross weight | 0.724 Kilogram |
| Net weight | 0.53 Kilogram |
| Volume | 4.451 Liter |
| EAN | 5702428646932 |
| Type | DST X800 |
| Product group | Sensors |
| Product Name Description | Wire position sensor |
| Accessories | NO |
| Approval | CE |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Circuit Type | Single |
| Contains batteries | No |
| Electrical connection | M12 x 1 |
| Electrical connection size | 5 pin |
| Electrical connection standard | IEC 61076-2-101 |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Measuring range [mm] | 1800 mm |
| Output signal | 0.5 - 4.5 V |
| Packing format | Multi pack |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | c6103306-3329-4eb8-b618-6b14a0afa053 |
| SCIP dossier product name | GSH |
| Specification key | SN1S1800HA1 0033X00 |
| Supply voltage [V] DC [max] | 36 V |
| Supply voltage [V] DC [min] | 10 V |
| UL mark | No |
| Accessories | NO |
| Approval | CE |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Circuit Type | Single |
| Contains batteries | No |
| Electrical connection | M12 x 1 |
| Electrical connection size | 5 pin |
| Electrical connection standard | IEC 61076-2-101 |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Measuring range [mm] | 1800 mm |
| Output signal | 0.5 - 4.5 V |
| Packing format | Multi pack |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | c6103306-3329-4eb8-b618-6b14a0afa053 |
| SCIP dossier product name | GSH |
| Specification key | SN1S1800HA1 0033X00 |
| Supply voltage [V] DC [max] | 36 V |
| Supply voltage [V] DC [min] | 10 V |
| UL mark | No |
