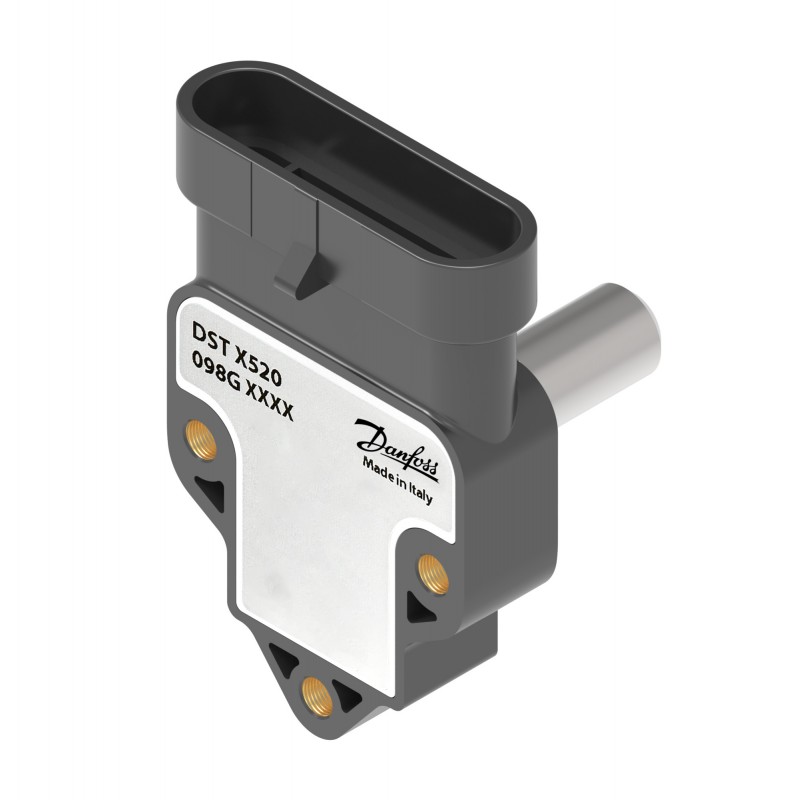

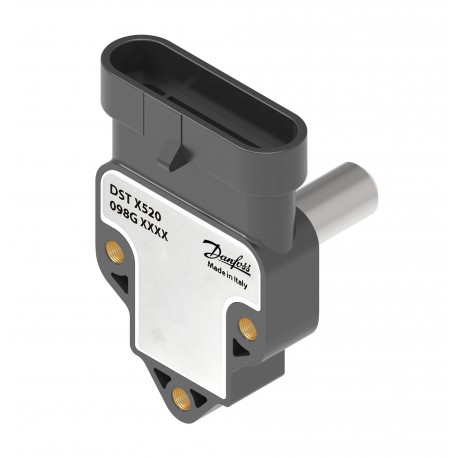

098G1502 DANFOSS REFRIGERATION Rotary position sensor, DST X520, 180 °, Single, 0.5 4.5 V
098G1502
DANFOSS REFRIGERATION
Rotary position sensor, DST X520, 180 °, Single, 0.5 - 4.5 V
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Supply voltage [V] DC: 9 - 36, Electrical connection: AMP SuperSeal, Electrical connection standard: 282108-1, Rotational direction: CW, Specification key: AS180000HC11000 0033A00
Product details
| Gross weight | 0.08 Kilogram |
| Net weight | 0.036 Kilogram |
| Volume | 0.253 Liter |
| EAN | 5702428646864 |
| Type | DST X520 |
| Product group | Sensors |
| Product Name Description | Rotary position sensor |
| Gross weight | 0.08 Kilogram |
| Net weight | 0.036 Kilogram |
| Volume | 0.253 Liter |
| EAN | 5702428646864 |
| Type | DST X520 |
| Product group | Sensors |
| Product Name Description | Rotary position sensor |
| Accessories | A |
| Angle/Channel 1 [°] | 180 ° |
| Approval | CE |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Circuit Type | Single |
| Contains batteries | No |
| Electrical connection | AMP SuperSeal |
| Electrical connection size | 6 pin |
| Electrical connection standard | 282108-1 |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Output signal | 0.5 - 4.5 V |
| Packing format | Multi pack |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Rotational direction | CW |
| SCIP dossier no. | 90c4872f-8992-4881-8081-9caca8bca57f |
| SCIP dossier product name | GRN |
| Specification key | AS180000HC11000 0033A00 |
| Supply voltage [V] DC [max] | 36 V |
| Supply voltage [V] DC [min] | 9 V |
| UL mark | No |
| Accessories | A |
| Angle/Channel 1 [°] | 180 ° |
| Approval | CE |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Circuit Type | Single |
| Contains batteries | No |
| Electrical connection | AMP SuperSeal |
| Electrical connection size | 6 pin |
| Electrical connection standard | 282108-1 |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Output signal | 0.5 - 4.5 V |
| Packing format | Multi pack |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Rotational direction | CW |
| SCIP dossier no. | 90c4872f-8992-4881-8081-9caca8bca57f |
| SCIP dossier product name | GRN |
| Specification key | AS180000HC11000 0033A00 |
| Supply voltage [V] DC [max] | 36 V |
| Supply voltage [V] DC [min] | 9 V |
| UL mark | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 098G1502 098G1502 ES_098G1502.pdf | 858 Kbytes |
|
