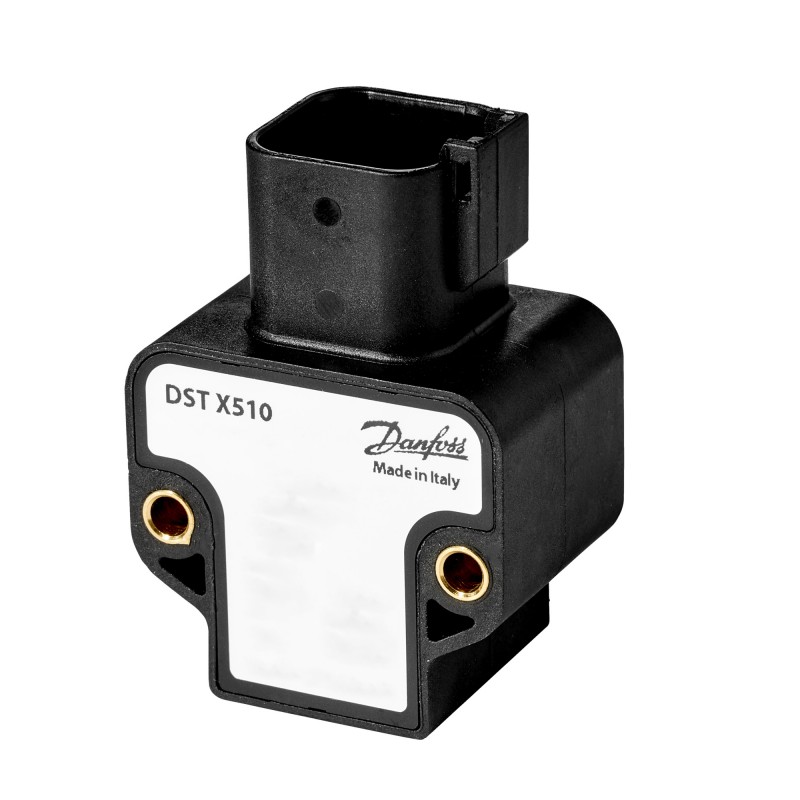

098G1009 DANFOSS REFRIGERATION Rotary position sensor, DST X510, 45 °, Redundant, Ratio metric
098G1009
DANFOSS REFRIGERATION
Rotary position sensor, DST X510, 45 °, Redundant, Ratio metric
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Supply voltage [V] DC: 5, Electrical connection: Deutsch, Electrical connection standard: DT04-6P, Rotational direction: CW, Specification key: DR045045LA11A00 0033X00
Product details
| Gross weight | 0.082 Kilogram |
| Net weight | 0.07 Kilogram |
| Volume | 0.253 Liter |
| EAN | 5714279903799 |
| Type | DST X510 |
| Product group | Sensors |
| Product Name Description | Rotary position sensor |
| Gross weight | 0.082 Kilogram |
| Net weight | 0.07 Kilogram |
| Volume | 0.253 Liter |
| EAN | 5714279903799 |
| Type | DST X510 |
| Product group | Sensors |
| Product Name Description | Rotary position sensor |
| Accessories | NO |
| Angle/Channel 1 [°] | 45 ° |
| Angle/Channel 2 [°] | 45 ° |
| Approval | CE |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Circuit Type | Redundant |
| Contains batteries | No |
| Electrical connection | Deutsch |
| Electrical connection size | 6 pin |
| Electrical connection standard | DT04-6P |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Output signal | Ratio metric |
| Packing format | Multi pack |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Rotational direction | CW |
| SCIP dossier no. | a707096f-52fa-4871-9e91-55f08f6518d1 |
| SCIP dossier product name | GRA |
| Specification key | DR045045LA11A00 0033X00 |
| Supply voltage [V] DC | 5 V |
| UL mark | No |
| Accessories | NO |
| Angle/Channel 1 [°] | 45 ° |
| Angle/Channel 2 [°] | 45 ° |
| Approval | CE |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Circuit Type | Redundant |
| Contains batteries | No |
| Electrical connection | Deutsch |
| Electrical connection size | 6 pin |
| Electrical connection standard | DT04-6P |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Output signal | Ratio metric |
| Packing format | Multi pack |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Rotational direction | CW |
| SCIP dossier no. | a707096f-52fa-4871-9e91-55f08f6518d1 |
| SCIP dossier product name | GRA |
| Specification key | DR045045LA11A00 0033X00 |
| Supply voltage [V] DC | 5 V |
| UL mark | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 098G1009 098G1009 ES_098G1009.pdf | 764 Kbytes |
|
