DANFOSS REFRIGERATION 097U0049 097U0049 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

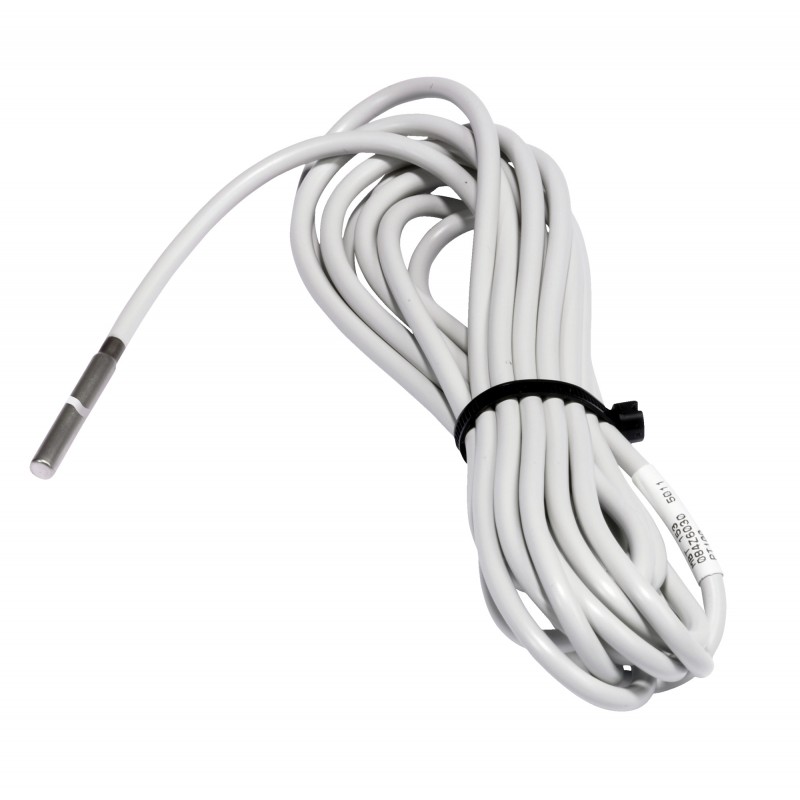

097U0049 DANFOSS REFRIGERATION Temperature sensor, MBT 153, 6 m, NTC, 10000 Ohm

Name: 097U0049 DANFOSS REFRIGERATION Temperature sensor, MBT 153, 6 m, NTC, 10000 Ohm
Brand: DANFOSS REFRIGERATION
SKU: DAO097U0049
Price: 44.20 USD
Availability: OutOfStock

Reference: 097U0049

Manufacturer: DANFOSS REFRIGERATION

Description:

Temperature sensor, MBT 153, 6 m, NTC, 10000 Ohm

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 37,76 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Measuring range [°C]: -40 - 100, Electrical connection: Cable with wire splices, Cable type: Thermoplastic rubber

Product details

Gross weight	0.203 Kilogram
Net weight	0.188 Kilogram
Volume	0.625 Liter
EAN	5702428539906

Type	MBT 153
Product group	Sensors
Product Name Description	Temperature sensor

Gross weight	0.203 Kilogram
Net weight	0.188 Kilogram
Volume	0.625 Liter
EAN	5702428539906
Type	MBT 153
Product group	Sensors
Product Name Description	Temperature sensor

Ambient temperature max. [°C]	100 °C
Ambient temperature max. [°F]	212 °F
Approval	CE
Cable length [in]	236.22 in
Cable length [m]	6 m
Cable tempr. range [°C] [max]	105 °C
Cable tempr. range [°C] [min]	-40 °C
Cable type	Thermoplastic rubber
CE mark	Yes
China RoHS compliance	Out of scope
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical connection	Cable with wire splices
Electrical connection size	2 wire
Enclosure rating IP	IP68
EU RoHS compliance	Yes
In scope of WEEE	Yes
Measuring range [°C] [max]	100 °C

Measuring range [°C] [min]	-40 °C
Measuring range [°F] [max]	212 °F
Measuring range [°F] [min]	-40 °F
NTC Element characteristic	10.000 Ohm/25°C
Packing format	Industrial pack
Protection tube diameter [in]	0.23 in
Protection tube diameter [mm]	5.8 mm
Protection tube length [in]	1.58 in
Protection tube length [mm]	40 mm
Protection tube material	STAINLEES STEEL
Quantity per packing format	10 pc
REACH Candidate List substances	No
Sensor elem. resistance [Ohm]	10000 Ohm
Sensor element [pc]	1 pc
Sensor element tolerance	± 0.15K at -3 - 3°C
Sensor element type	NTC
Sensor Insert	Fixed
Wires [pcs]	2 pc

Ambient temperature max. [°C]	100 °C
Ambient temperature max. [°F]	212 °F
Approval	CE
Cable length [in]	236.22 in
Cable length [m]	6 m
Cable tempr. range [°C] [max]	105 °C
Cable tempr. range [°C] [min]	-40 °C
Cable type	Thermoplastic rubber
CE mark	Yes
China RoHS compliance	Out of scope
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical connection	Cable with wire splices
Electrical connection size	2 wire
Enclosure rating IP	IP68
EU RoHS compliance	Yes
In scope of WEEE	Yes
Measuring range [°C] [max]	100 °C
Measuring range [°C] [min]	-40 °C
Measuring range [°F] [max]	212 °F
Measuring range [°F] [min]	-40 °F
NTC Element characteristic	10.000 Ohm/25°C
Packing format	Industrial pack
Protection tube diameter [in]	0.23 in
Protection tube diameter [mm]	5.8 mm
Protection tube length [in]	1.58 in
Protection tube length [mm]	40 mm
Protection tube material	STAINLEES STEEL
Quantity per packing format	10 pc
REACH Candidate List substances	No
Sensor elem. resistance [Ohm]	10000 Ohm
Sensor element [pc]	1 pc
Sensor element tolerance	± 0.15K at -3 - 3°C
Sensor element type	NTC
Sensor Insert	Fixed
Wires [pcs]	2 pc
