DANFOSS REFRIGERATION084Z2441 DANFOSS REFRIGERATION Sensor pocket, MBT 120
DANFOSS REFRIGERATION 084Z2441 084Z2441 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

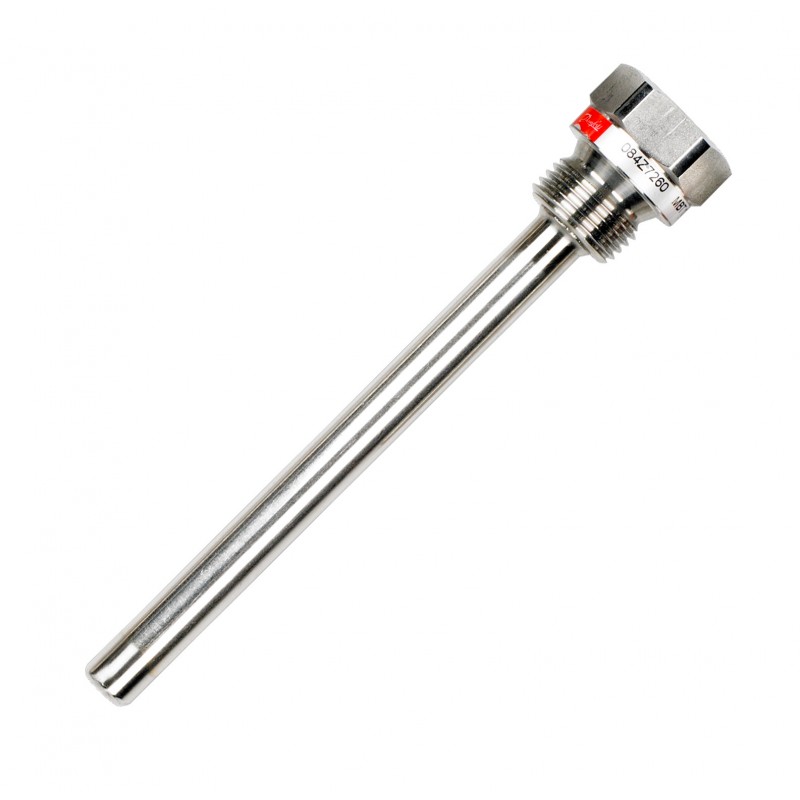

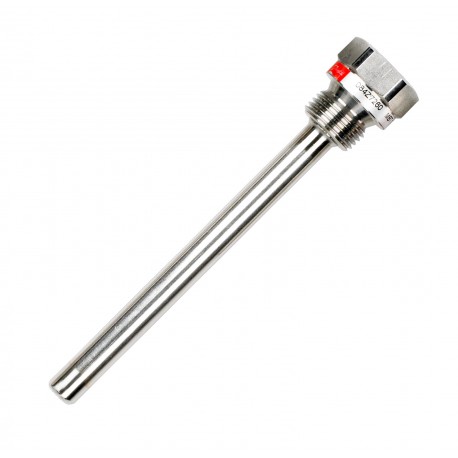

084Z2441 DANFOSS REFRIGERATION Sensor pocket, MBT 120

Reference: 084Z2441

Manufacturer: DANFOSS REFRIGERATION

Description:

Sensor pocket, MBT 120

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 107,03 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Protection tube diameter [mm]: 11, Insertion length [mm]: 150, Process connection type: G, 1/2, Temperature range [°C]: -50 - 200, Protection tube material: AISI 316 TI, Used for product: MBT 5250

Product details

Gross weight0.124 Kilogram
Net weight0.12 Kilogram
Volume0.153 Liter
EAN5702428973359
TypeMBT 120
Product groupAccessories, sensors
Product Name DescriptionSensor pocket
Gross weight0.124 Kilogram
Net weight0.12 Kilogram
Volume0.153 Liter
EAN5702428973359
TypeMBT 120
Product groupAccessories, sensors
Product Name DescriptionSensor pocket

ApprovalCE
CE markYes
China RoHS complianceOut of scope
Connection materialAISI 316 Ti
Connection standardISO 228
Connection typeG
Contains batteriesNo
EEE category5 small equipment (any external dimension < 50 cm)
EU RoHS complianceYes
EU RoHS exemption clauseNo
In scope of WEEEYes
Insertion length [in]5.9 in
Insertion length [mm]150 mm
Internal connection size1/2
Internal connection typeG
Packing formatMulti pack
Process connection Male/FemaleMale
Process connection materialAISI 316 Ti
Process connection size1/2
Process connection standardISO 228-1-A
Process connection typeG
Protection tube diameter [in]0.433 in
Protection tube diameter [mm]11 mm
Protection tube materialAISI 316 TI
Quantity per packing format20 pc
REACH Candidate List substancesNo
Temperature range [°C] [max]200 °C
Temperature range [°C] [min]-50 °C
Temperature range [°F] [max]392 °F
Temperature range [°F] [min]-58 °F
Type designationMBT 120-630-150-C
UL markNo
Used for productMBT 5250
ApprovalCE
CE markYes
China RoHS complianceOut of scope
Connection materialAISI 316 Ti
Connection standardISO 228
Connection typeG
Contains batteriesNo
EEE category5 small equipment (any external dimension < 50 cm)
EU RoHS complianceYes
EU RoHS exemption clauseNo
In scope of WEEEYes
Insertion length [in]5.9 in
Insertion length [mm]150 mm
Internal connection size1/2
Internal connection typeG
Packing formatMulti pack
Process connection Male/FemaleMale
Process connection materialAISI 316 Ti
Process connection size1/2
Process connection standardISO 228-1-A
Process connection typeG
Protection tube diameter [in]0.433 in
Protection tube diameter [mm]11 mm
Protection tube materialAISI 316 TI
Quantity per packing format20 pc
REACH Candidate List substancesNo
Temperature range [°C] [max]200 °C
Temperature range [°C] [min]-50 °C
Temperature range [°F] [max]392 °F
Temperature range [°F] [min]-58 °F
Type designationMBT 120-630-150-C
UL markNo
Used for productMBT 5250

DATASHEET - PDF

Title
Size
Type
084Z2441 084Z2441 EN_084Z6035.pdf
443 Kbytes
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN
11 Mbytes
