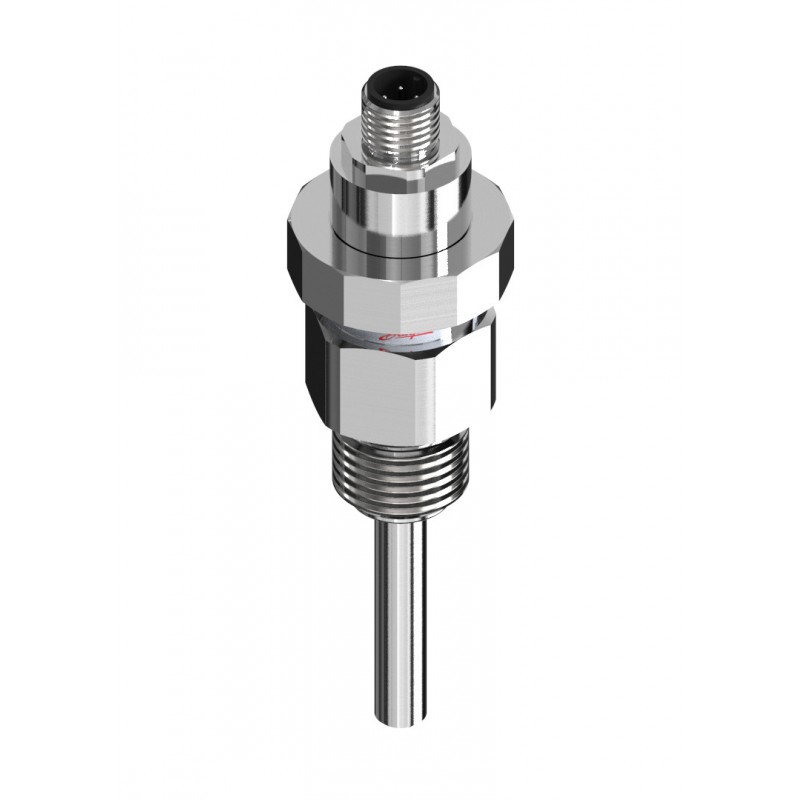

084Z2196 DANFOSS REFRIGERATION MBT 5310-00-260-B00 with M12, 4 Sensor
084Z2196
DANFOSS REFRIGERATION
MBT 5310-00-260-B00 with M12, 4 Sensor
Temperature sensor, MBT 5310, 248 mm - 260 mm, G,1/2
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Temperature range [°C]: -50 - 200, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316 Ti, Electrical connection: M12 x 1, Electrical connection size: 4 pin
Product details
| Gross weight | 0.249 Kilogram |
| Net weight | 0.239 Kilogram |
| Volume | 0.528 Liter |
| EAN | 5702428460415 |
| Gross weight | 0.249 Kilogram |
| Net weight | 0.239 Kilogram |
| Volume | 0.528 Liter |
| EAN | 5702428460415 |
| Ambient temperature max. [°C] | 125 °C |
| Ambient temperature max. [°F] | 257 °F |
| CE evaluated | Yes |
| China RoHS compliance | Yes exceed limitations |
| Connection material | Stainless steel |
| Connection standard | IEC 947-5-2 |
| Connection type | G |
| Contain batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. Male/Female | Male |
| Electrical connection | M12 x 1 |
| Electrical connection size | 4 pin |
| Electrical connection standard | IEC 61076-2-101 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(b) 6(c) 7(a) 7(c)-I |
| In scope of WEEE | Yes |
| Insertion length [in] [max] | 10.2 in |
| Insertion length [in] [min] | 9.8 in |
| Insertion length [mm] [max] | 260 mm |
| Insertion length [mm] [min] | 248 mm |
| Insertion type | Variable |
| Number of terminals [pcs] | 4 pc |
| Output signal | Ohm |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Stainless steel |
| Process connection size | 1/2 |
| Process connection standard | ISO 228-1-A |
| Process connection type | G |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Protection tube diameter [in] | 0.315 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube material | AISI 316 Ti |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 7e8c0ff3-1e7a-4680-b92c-bfbffbb08416 |
| Sensor elem. resistance [Ohm] | 100 |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | Fixed |
| Temperature range [°C] [max] | 200 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 392 °F |
| Temperature range [°F] [min] | -58 °F |
| Type | MBT 5310 |
| Type designation | MBT 5310-00-260-B00 |
| UK RoHS compliance | Yes with exemptions |
| Wires [pcs] | 4 pc |
| Ambient temperature max. [°C] | 125 °C |
| Ambient temperature max. [°F] | 257 °F |
| CE evaluated | Yes |
| China RoHS compliance | Yes exceed limitations |
| Connection material | Stainless steel |
| Connection standard | IEC 947-5-2 |
| Connection type | G |
| Contain batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. Male/Female | Male |
| Electrical connection | M12 x 1 |
| Electrical connection size | 4 pin |
| Electrical connection standard | IEC 61076-2-101 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(b) 6(c) 7(a) 7(c)-I |
| In scope of WEEE | Yes |
| Insertion length [in] [max] | 10.2 in |
| Insertion length [in] [min] | 9.8 in |
| Insertion length [mm] [max] | 260 mm |
| Insertion length [mm] [min] | 248 mm |
| Insertion type | Variable |
| Number of terminals [pcs] | 4 pc |
| Output signal | Ohm |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Stainless steel |
| Process connection size | 1/2 |
| Process connection standard | ISO 228-1-A |
| Process connection type | G |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Protection tube diameter [in] | 0.315 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube material | AISI 316 Ti |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 7e8c0ff3-1e7a-4680-b92c-bfbffbb08416 |
| Sensor elem. resistance [Ohm] | 100 |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | Fixed |
| Temperature range [°C] [max] | 200 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 392 °F |
| Temperature range [°F] [min] | -58 °F |
| Type | MBT 5310 |
| Type designation | MBT 5310-00-260-B00 |
| UK RoHS compliance | Yes with exemptions |
| Wires [pcs] | 4 pc |
