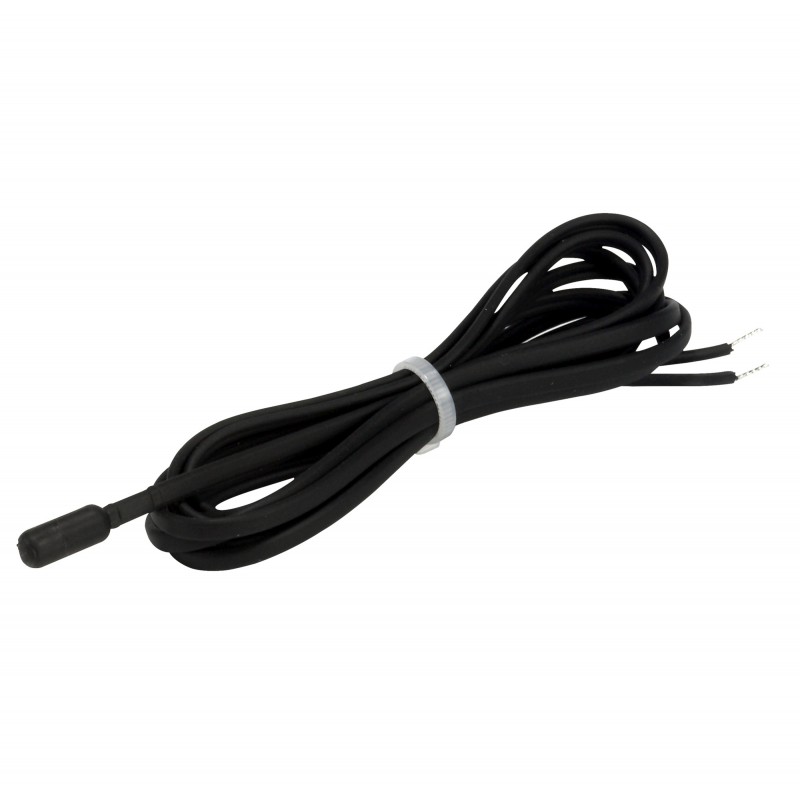

084N3210 DANFOSS REFRIGERATION Temperature sensor
084N3210
DANFOSS REFRIGERATION
Temperature sensor
Sensor EKS 221 NT 10K 3.5m cable
Temperature sensor, EKS 221, 3.5 m, NTC, 10000 Ohm
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Often bought together
▲Best sellers
▲More info
▲Measuring range [°C]: -50 - 120, Electrical connection: Cable, Cable type: Thermoplastic rubber
Product details
| Gross weight | 0.032 Kilogram |
| Net weight | 0.027 Kilogram |
| Volume | 0.225 Liter |
| EAN | 5702428171977 |
| Type | EKS 221 |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Gross weight | 0.032 Kilogram |
| Net weight | 0.027 Kilogram |
| Volume | 0.225 Liter |
| EAN | 5702428171977 |
| Type | EKS 221 |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Ambient temperature max. [°C] | 120 °C |
| Ambient temperature max. [°F] | 248 °F |
| Approval | CE |
| Cable length [in] | 88.9 in |
| Cable length [m] | 3.5 m |
| Cable tempr. range [°C] [max] | 120 °C |
| Cable tempr. range [°C] [min] | -50 °C |
| Cable type | Thermoplastic rubber |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Comments | CABLE SENSOR |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Cable |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Identical product | 084N3206 |
| In scope of WEEE | Yes |
| Label product | Yes |
| Measuring range [°C] [max] | 120 °C |
| Measuring range [°C] [min] | -50 °C |
| Measuring range [°F] [max] | 248 °F |
| Measuring range [°F] [min] | -58 °F |
| NTC Element characteristic | 10.000 Ohm/25°C |
| Packing format | Multi pack |
| Protection tube diameter [in] | 0.24 in |
| Protection tube diameter [mm] | 6 mm |
| Protection tube material | THERMOPLASTIC RUBBER |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | No |
| Sensor elem. resistance [Ohm] | 10000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element tolerance | ± 1% |
| Sensor element type | NTC |
| Wires [pcs] | 2 pc |
| Ambient temperature max. [°C] | 120 °C |
| Ambient temperature max. [°F] | 248 °F |
| Approval | CE |
| Cable length [in] | 88.9 in |
| Cable length [m] | 3.5 m |
| Cable tempr. range [°C] [max] | 120 °C |
| Cable tempr. range [°C] [min] | -50 °C |
| Cable type | Thermoplastic rubber |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Comments | CABLE SENSOR |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Cable |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Identical product | 084N3206 |
| In scope of WEEE | Yes |
| Label product | Yes |
| Measuring range [°C] [max] | 120 °C |
| Measuring range [°C] [min] | -50 °C |
| Measuring range [°F] [max] | 248 °F |
| Measuring range [°F] [min] | -58 °F |
| NTC Element characteristic | 10.000 Ohm/25°C |
| Packing format | Multi pack |
| Protection tube diameter [in] | 0.24 in |
| Protection tube diameter [mm] | 6 mm |
| Protection tube material | THERMOPLASTIC RUBBER |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | No |
| Sensor elem. resistance [Ohm] | 10000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element tolerance | ± 1% |
| Sensor element type | NTC |
| Wires [pcs] | 2 pc |
