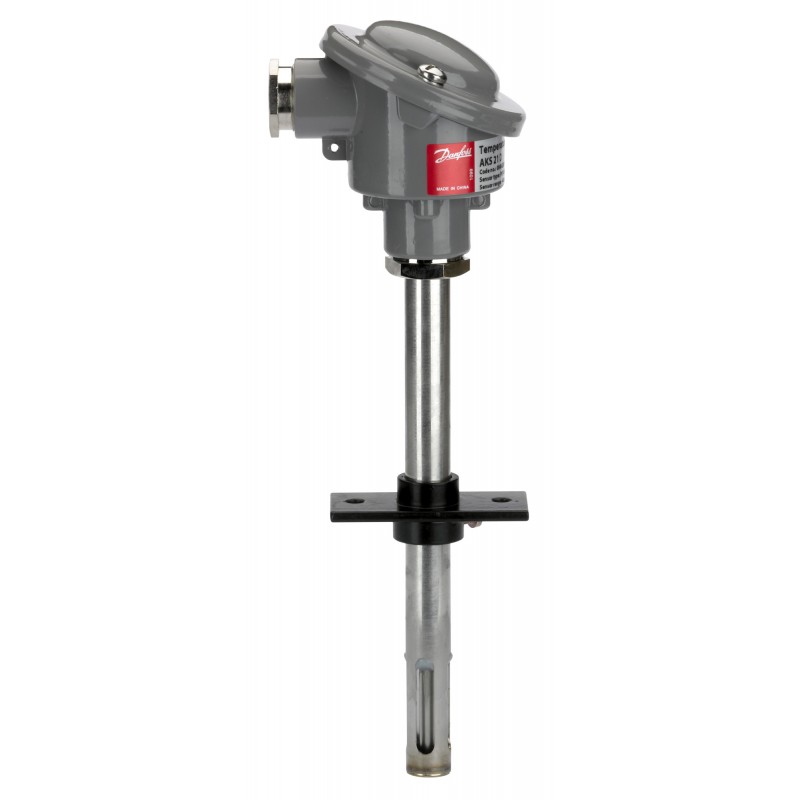

084N2037 DANFOSS REFRIGERATION Temperature sensor
084N2037
DANFOSS REFRIGERATION
Temperature sensor
Sensor AKS 21 D 0.3m
Temperature sensor, AKS 21 D, Flange
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Measuring range [°C]: -40 - 80, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 1000, Protection tube material: STAINLEES STEEL, Electrical connection: Type B, Electrical connection size: Pg 16
Product details
| Gross weight | 0.418 Kilogram |
| Net weight | 0.408 Kilogram |
| Volume | 0.241 Liter |
| EAN | 5702422006312 |
| Type | AKS 21 D |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Gross weight | 0.418 Kilogram |
| Net weight | 0.408 Kilogram |
| Volume | 0.241 Liter |
| EAN | 5702422006312 |
| Type | AKS 21 D |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Approval | CE |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Connection type | Flange |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Type B |
| Electrical connection size | Pg 16 |
| Enclosure rating IP | IP56 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| In scope of WEEE | Yes |
| Measuring range [°C] [max] | 80 °C |
| Measuring range [°C] [min] | -40 °C |
| Measuring range [°F] [max] | 176 °F |
| Measuring range [°F] [min] | -40 °F |
| Number of terminals [pcs] | 3 pc |
| Packing format | Multi pack |
| Process connection notes | Flange |
| Protection tube diameter [in] | 0.59 in |
| Protection tube diameter [mm] | 15 mm |
| Protection tube length [in] | 9.84 in |
| Protection tube length [mm] | 250 mm |
| Protection tube material | STAINLEES STEEL |
| Quantity per packing format | 9 pc |
| REACH Candidate List substances | No |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | Exchangeable |
| Wires [pcs] | 2 pc |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Approval | CE |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Connection type | Flange |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Type B |
| Electrical connection size | Pg 16 |
| Enclosure rating IP | IP56 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| In scope of WEEE | Yes |
| Measuring range [°C] [max] | 80 °C |
| Measuring range [°C] [min] | -40 °C |
| Measuring range [°F] [max] | 176 °F |
| Measuring range [°F] [min] | -40 °F |
| Number of terminals [pcs] | 3 pc |
| Packing format | Multi pack |
| Process connection notes | Flange |
| Protection tube diameter [in] | 0.59 in |
| Protection tube diameter [mm] | 15 mm |
| Protection tube length [in] | 9.84 in |
| Protection tube length [mm] | 250 mm |
| Protection tube material | STAINLEES STEEL |
| Quantity per packing format | 9 pc |
| REACH Candidate List substances | No |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | Exchangeable |
| Wires [pcs] | 2 pc |
