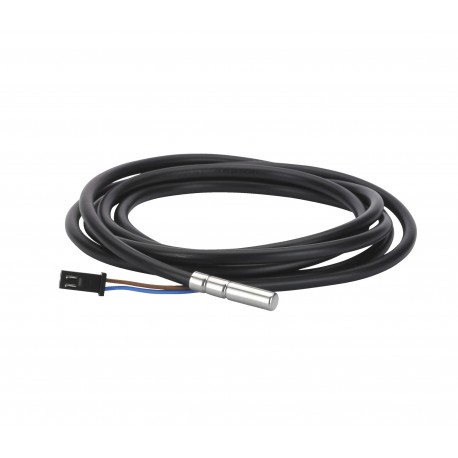

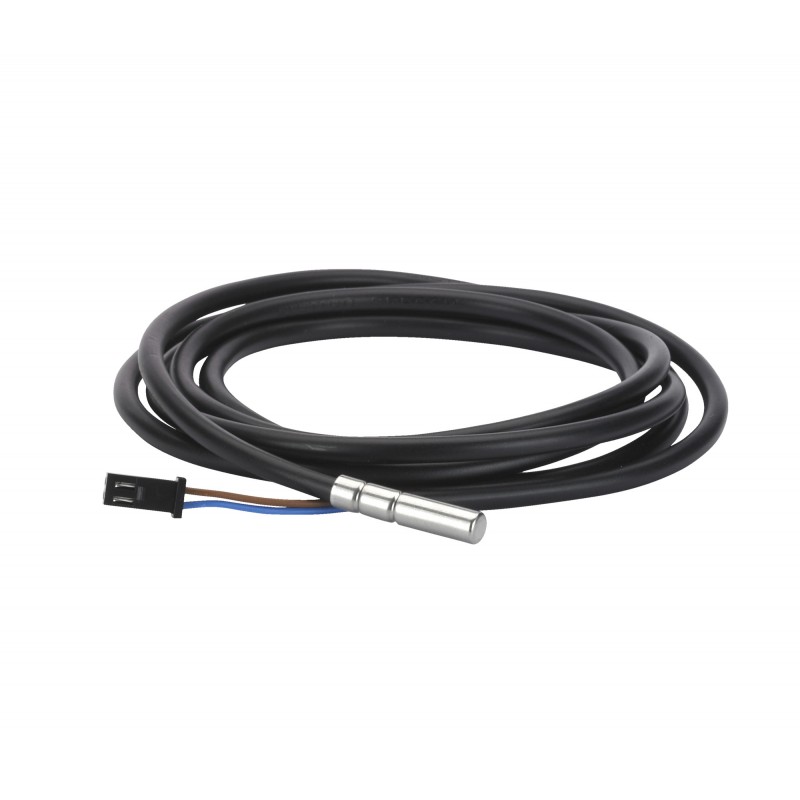

084N1174 DANFOSS REFRIGERATION Temperature sensor
Reference: 084N1174
Manufacturer: DANFOSS REFRIGERATION
Description:
Temperature sensor
Sensor EKS 111 1.5m AMP Plug I/150
Temperature sensor, EKS 111, 1.5 m, PTC, 1000 Ohm
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
- These delivery times are an estimate any may vary when the item order has been processed.
MORE INFO
Measuring range [°C]: -55 - 150, Electrical connection: AMP, Cable type: PVC
Product details
| Gross weight | 0.047 Kilogram |
| Net weight | 0.046 Kilogram |
| Volume | 0.05 Liter |
| EAN | 5702428033305 |
| Type | EKS 111 |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Gross weight | 0.047 Kilogram |
| Net weight | 0.046 Kilogram |
| Volume | 0.05 Liter |
| EAN | 5702428033305 |
| Type | EKS 111 |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Approval | CE |
| Cable length [in] | 59.06 in |
| Cable length [m] | 1.5 m |
| Cable tempr. range [°C] [max] | 80 °C |
| Cable tempr. range [°C] [min] | -30 °C |
| Cable type | PVC |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. comments | Cable |
| Electrical connection | AMP |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| In scope of WEEE | Yes |
| Label product | Yes |
| Measuring range [°C] [max] | 150 °C |
| Measuring range [°C] [min] | -55 °C |
| Measuring range [°F] [max] | 302 °F |
| Measuring range [°F] [min] | -67 °F |
| Packing format | Industrial pack |
| Protection tube diameter [in] | 0.24 in |
| Protection tube diameter [mm] | 6 mm |
| Protection tube length [in] | 1.18 in |
| Protection tube length [mm] | 30 mm |
| Protection tube material | STAINLEES STEEL |
| PTC Element characteristic | 990 Ohm/25°C |
| Quantity per packing format | 150 pc |
| REACH Candidate List substances | No |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element tolerance | ± 1% |
| Sensor element type | PTC |
| Sensor Insert | Fixed |
| Wires [pcs] | 2 pc |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Approval | CE |
| Cable length [in] | 59.06 in |
| Cable length [m] | 1.5 m |
| Cable tempr. range [°C] [max] | 80 °C |
| Cable tempr. range [°C] [min] | -30 °C |
| Cable type | PVC |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. comments | Cable |
| Electrical connection | AMP |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| In scope of WEEE | Yes |
| Label product | Yes |
| Measuring range [°C] [max] | 150 °C |
| Measuring range [°C] [min] | -55 °C |
| Measuring range [°F] [max] | 302 °F |
| Measuring range [°F] [min] | -67 °F |
| Packing format | Industrial pack |
| Protection tube diameter [in] | 0.24 in |
| Protection tube diameter [mm] | 6 mm |
| Protection tube length [in] | 1.18 in |
| Protection tube length [mm] | 30 mm |
| Protection tube material | STAINLEES STEEL |
| PTC Element characteristic | 990 Ohm/25°C |
| Quantity per packing format | 150 pc |
| REACH Candidate List substances | No |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element tolerance | ± 1% |
| Sensor element type | PTC |
| Sensor Insert | Fixed |
| Wires [pcs] | 2 pc |
