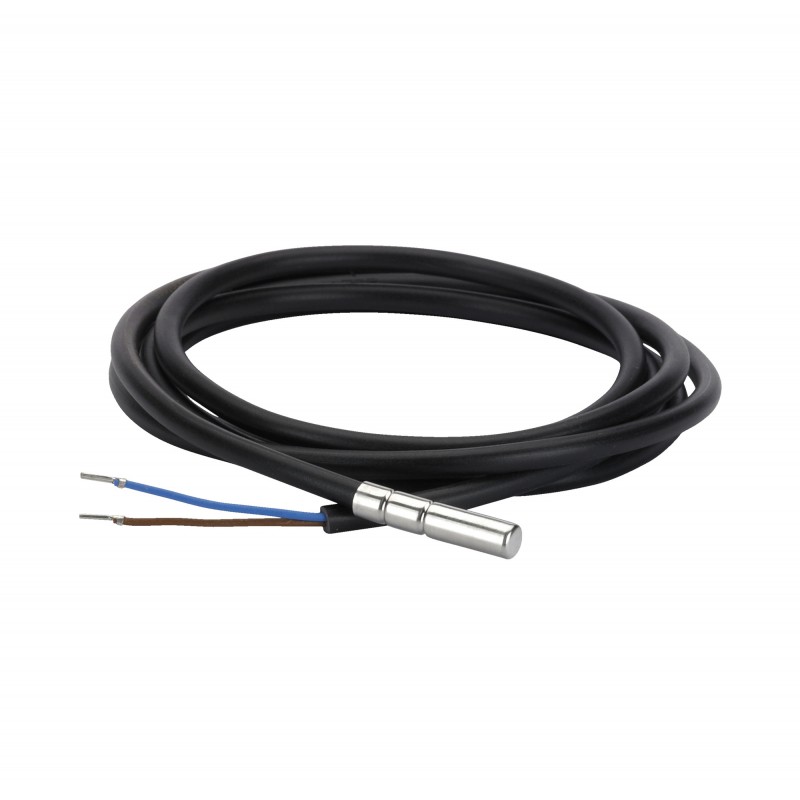

084N1173 DANFOSS REFRIGERATION Temperature sensor
084N1173
DANFOSS REFRIGERATION
80
Temperature sensor
Sensor EKS 111 6m I/80
Temperature sensor, EKS 111, 6.00 m, PTC, 1000 Ohm
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Measuring range [°C]: -55 - 150, Electrical connection: Cable with pins, Cable type: PVC
Product details
| Gross weight | 0.164 Kg |
| Net weight | 0.164 Kg |
| Volume | 0.32 Liter |
| EAN | 5702428062381 |
| Gross weight | 0.164 Kg |
| Net weight | 0.164 Kg |
| Volume | 0.32 Liter |
| EAN | 5702428062381 |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Cable length [in] | 236.22 in |
| Cable length [m] | 6 m |
| Cable tempr. range [°C] [max] | 80 °C |
| Cable tempr. range [°C] [min] | -30 °C |
| Cable type | PVC |
| Electrical connection | Cable with pins |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| In scope of WEEE and contain batteries | No |
| Measuring range [°C] [max] | 150 °C |
| Measuring range [°C] [min] | -55 °C |
| Measuring range [°F] [max] | 302 °F |
| Measuring range [°F] [min] | -67 °F |
| Packing format | Industrial pack |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Protection tube diameter [in] | 0.24 in |
| Protection tube diameter [mm] | 6 mm |
| Protection tube length [in] | 1.18 in |
| Protection tube length [mm] | 30 mm |
| Protection tube material | Stainless steel |
| PTC Element characteristic | 990 Ohm/25°C |
| Quantity per packing format | 80 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Sensor elem. resistance [Ohm] | 1000 |
| Sensor element [pc] | 1 pc |
| Sensor element tolerance | ± 1% |
| Sensor element type | PTC |
| Sensor Insert | Fixed |
| Type | EKS 111 |
| Wires [pcs] | 2 pc |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Cable length [in] | 236.22 in |
| Cable length [m] | 6 m |
| Cable tempr. range [°C] [max] | 80 °C |
| Cable tempr. range [°C] [min] | -30 °C |
| Cable type | PVC |
| Electrical connection | Cable with pins |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| In scope of WEEE and contain batteries | No |
| Measuring range [°C] [max] | 150 °C |
| Measuring range [°C] [min] | -55 °C |
| Measuring range [°F] [max] | 302 °F |
| Measuring range [°F] [min] | -67 °F |
| Packing format | Industrial pack |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Protection tube diameter [in] | 0.24 in |
| Protection tube diameter [mm] | 6 mm |
| Protection tube length [in] | 1.18 in |
| Protection tube length [mm] | 30 mm |
| Protection tube material | Stainless steel |
| PTC Element characteristic | 990 Ohm/25°C |
| Quantity per packing format | 80 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Sensor elem. resistance [Ohm] | 1000 |
| Sensor element [pc] | 1 pc |
| Sensor element tolerance | ± 1% |
| Sensor element type | PTC |
| Sensor Insert | Fixed |
| Type | EKS 111 |
| Wires [pcs] | 2 pc |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 084N1173 084N1173 IT_084N1181.pdf | 282 Kbytes |
|
