DANFOSS REFRIGERATION084N1163 DANFOSS REFRIGERATION Temperature sensor
DANFOSS REFRIGERATION 084N1163 084N1163 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

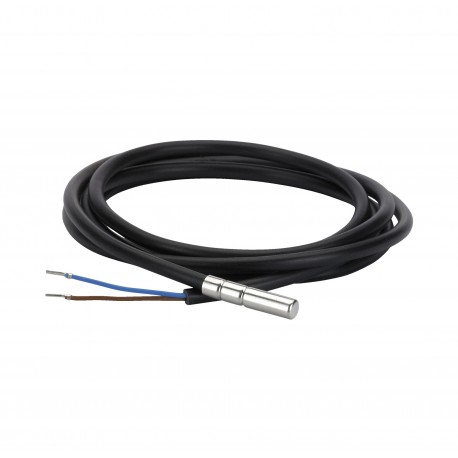

084N1163 DANFOSS REFRIGERATION Temperature sensor

Reference: 084N1163

Manufacturer: DANFOSS REFRIGERATION

Description:

Temperature sensor
Sensor EKS 111 3.5m cable w pins I/150
Temperature sensor, EKS 111, 3.50 m, PTC, 1000 Ohm

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 2.252,11 €

Unit Price: 15,0141 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Measuring range [°C]: -55 - 150, Electrical connection: Cable with pins, Cable type: PVC

Product details

Gross weight0.099 Kg
Net weight0.098 Kg
Volume0.171 Liter
EAN5702428062343
Gross weight0.099 Kg
Net weight0.098 Kg
Volume0.171 Liter
EAN5702428062343

Ambient temperature max. [°C]80 °C
Ambient temperature max. [°F]176 °F
Cable length [in]137.8 in
Cable length [m]3.5 m
Cable tempr. range [°C] [max]80 °C
Cable tempr. range [°C] [min]-30 °C
Cable typePVC
Electrical connectionCable with pins
Electrical connection size2 wire
Enclosure rating IPIP67
EU RoHS complianceYes with exemptions
In scope of WEEE and contain batteriesNo
Measuring range [°C] [max]150 °C
Measuring range [°C] [min]-55 °C
Measuring range [°F] [max]302 °F
Measuring range [°F] [min]-67 °F
Packing formatIndustrial pack
Product groupSensors
Product Name DescriptionTemperature sensor
Protection tube diameter [in]0.24 in
Protection tube diameter [mm]6 mm
Protection tube length [in]1.18 in
Protection tube length [mm]30 mm
Protection tube materialStainless steel
PTC Element characteristic990 Ohm/25°C
Quantity per packing format150 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Sensor elem. resistance [Ohm]1000
Sensor element [pc]1 pc
Sensor element tolerance± 1%
Sensor element typePTC
Sensor InsertFixed
TypeEKS 111
Wires [pcs]2 pc
Ambient temperature max. [°C]80 °C
Ambient temperature max. [°F]176 °F
Cable length [in]137.8 in
Cable length [m]3.5 m
Cable tempr. range [°C] [max]80 °C
Cable tempr. range [°C] [min]-30 °C
Cable typePVC
Electrical connectionCable with pins
Electrical connection size2 wire
Enclosure rating IPIP67
EU RoHS complianceYes with exemptions
In scope of WEEE and contain batteriesNo
Measuring range [°C] [max]150 °C
Measuring range [°C] [min]-55 °C
Measuring range [°F] [max]302 °F
Measuring range [°F] [min]-67 °F
Packing formatIndustrial pack
Product groupSensors
Product Name DescriptionTemperature sensor
Protection tube diameter [in]0.24 in
Protection tube diameter [mm]6 mm
Protection tube length [in]1.18 in
Protection tube length [mm]30 mm
Protection tube materialStainless steel
PTC Element characteristic990 Ohm/25°C
Quantity per packing format150 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Sensor elem. resistance [Ohm]1000
Sensor element [pc]1 pc
Sensor element tolerance± 1%
Sensor element typePTC
Sensor InsertFixed
TypeEKS 111
Wires [pcs]2 pc
