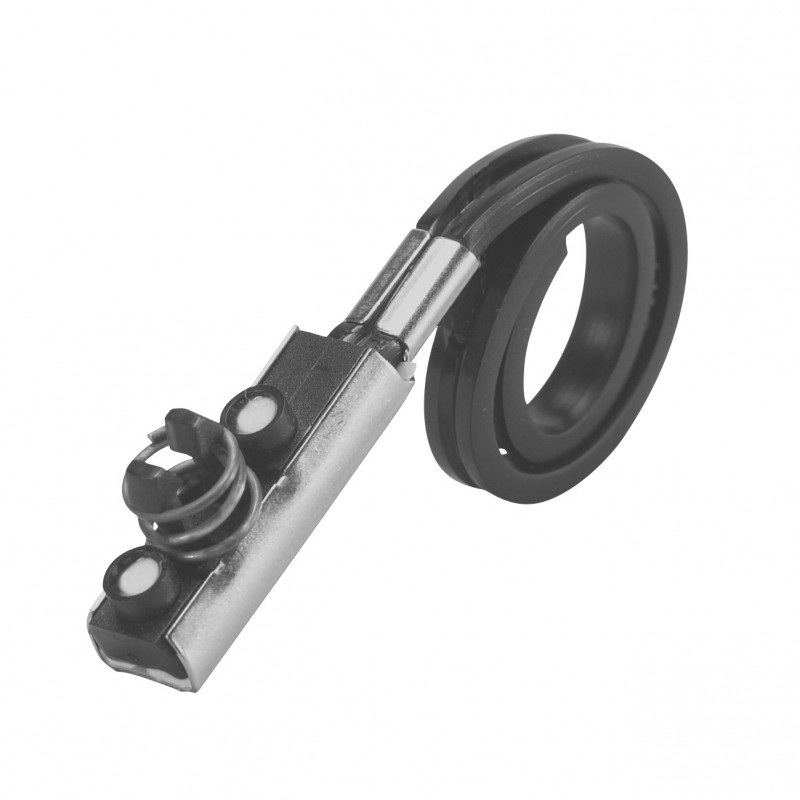

084N0026 DANFOSS REFRIGERATION Temperature sensor
084N0026
DANFOSS REFRIGERATION
150
Temperature sensor
Temperature sensor, AKS 11, 1.5 m, Pt, 1000 Ohm
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Measuring range [°C]: -40 - 100, Electrical connection: Cable, Cable type: PVC
Product details
| Gross weight | 0.036 Kilogram |
| Net weight | 0.033 Kilogram |
| Volume | 0.13 Liter |
| EAN | 5702428062312 |
| Type | AKS 11 |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Gross weight | 0.036 Kilogram |
| Net weight | 0.033 Kilogram |
| Volume | 0.13 Liter |
| EAN | 5702428062312 |
| Type | AKS 11 |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Ambient temperature max. [°C] | 100 °C |
| Ambient temperature max. [°F] | 212 °F |
| Approval | CE |
| Cable length [in] | 59.06 in |
| Cable length [m] | 1.5 m |
| Cable tempr. range [°C] [max] | 100 °C |
| Cable tempr. range [°C] [min] | -40 °C |
| Cable type | PVC |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Cable |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| In scope of WEEE | Yes |
| Measuring range [°C] [max] | 100 °C |
| Measuring range [°C] [min] | -40 °C |
| Measuring range [°F] [max] | 212 °F |
| Measuring range [°F] [min] | -40 °F |
| Packing format | Industrial pack |
| Quantity per packing format | 150 pc |
| REACH Candidate List substances | No |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Wires [pcs] | 2 pc |
| Ambient temperature max. [°C] | 100 °C |
| Ambient temperature max. [°F] | 212 °F |
| Approval | CE |
| Cable length [in] | 59.06 in |
| Cable length [m] | 1.5 m |
| Cable tempr. range [°C] [max] | 100 °C |
| Cable tempr. range [°C] [min] | -40 °C |
| Cable type | PVC |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Cable |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| In scope of WEEE | Yes |
| Measuring range [°C] [max] | 100 °C |
| Measuring range [°C] [min] | -40 °C |
| Measuring range [°F] [max] | 212 °F |
| Measuring range [°F] [min] | -40 °F |
| Packing format | Industrial pack |
| Quantity per packing format | 150 pc |
| REACH Candidate List substances | No |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Wires [pcs] | 2 pc |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 084N0026 084N0026 EN_084N0051.pdf | 204 Kbytes |
|
