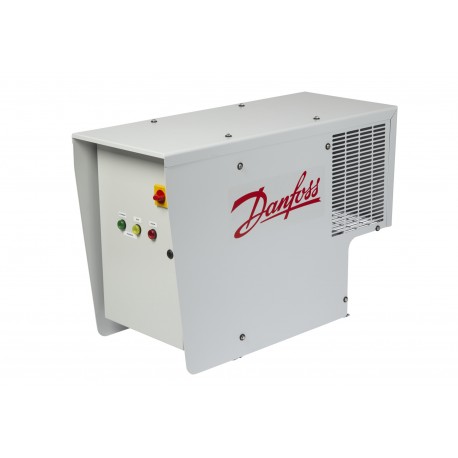

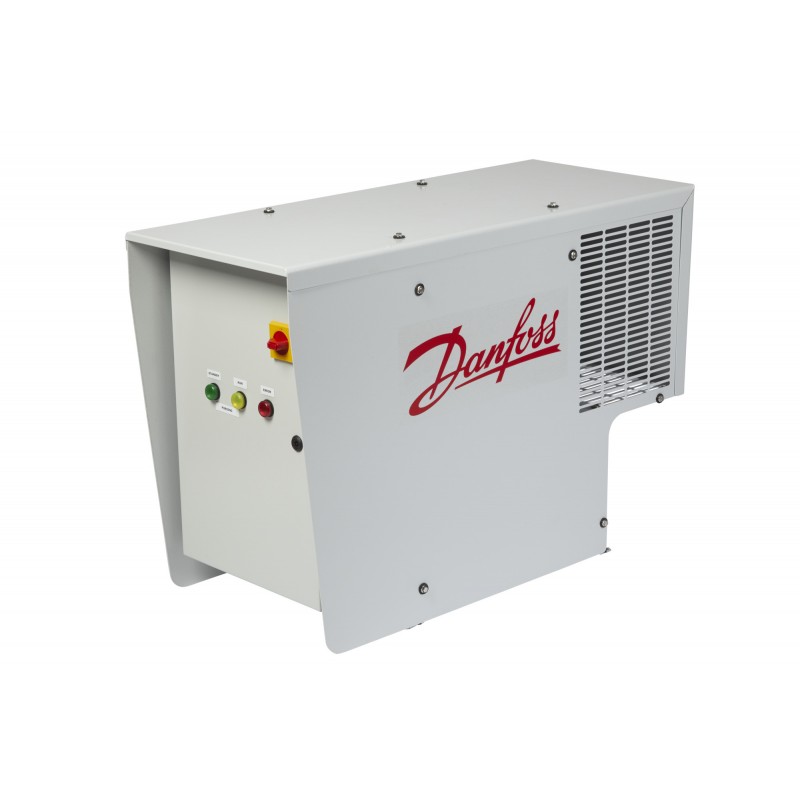

084H5002 DANFOSS REFRIGERATION IPS8 Int.purging system LAM S-P
084H5002
DANFOSS REFRIGERATION
IPS8 Int.purging system LAM S-P
Intelligent purging system, IPS 8
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Air purgers, Parts included: Bolts for flange; Welding flange; Gasket; Screws for top cover, Refrigerants: R717
Product details
| Gross weight | 114 Kilogram |
| Net weight | 100 Kilogram |
| Volume | 691.2 Liter |
| EAN | 5714279888126 |
| Type | IPS 8 |
| Product group | Air purgers |
| Product Name Description | Intelligent purging system |
| Gross weight | 114 Kilogram |
| Net weight | 100 Kilogram |
| Volume | 691.2 Liter |
| EAN | 5714279888126 |
| Type | IPS 8 |
| Product group | Air purgers |
| Product Name Description | Intelligent purging system |
| Ambient temperature range [°C] [max] | 43 °C |
| Ambient temperature range [°C] [min] | -10 °C |
| Approval | CE |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Connection size [in] | 1 1/4 in |
| Connection size [mm] | 32 mm |
| Connection standard | FLANGE, DIN-EN OR ANSI |
| Connection type | Butt weld |
| Contains batteries | No |
| Enclosure rating IP | IP55 |
| EU RoHS compliance | Out of scope |
| Frequency [Hz] | 60 Hz |
| Max. purger electr conn points | 8 |
| Max. Working Pressure [bar] | 40 bar |
| Packing format | Single pack |
| Parts included | Bolts for flange Gasket Screws for top cover Welding flange |
| Product accessories | Air purger accessories |
| Product Language | English |
| Product version | 01 |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Cobalt dichloride (CAS no. 7646-79-9) Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6) Lead (CAS no. 7439-92-1) |
| Refrigerants | R717 |
| SCIP dossier no. | 199fbd16-89a6-4156-ad8a-6f23feecd0c7 |
| SCIP dossier product name | IPS8 CE-LAM |
| Serviceable | Air purger spare parts |
| Software version | 4.13 |
| Supply voltage [V] AC | 230 V |
| Ambient temperature range [°C] [max] | 43 °C |
| Ambient temperature range [°C] [min] | -10 °C |
| Approval | CE |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Connection size [in] | 1 1/4 in |
| Connection size [mm] | 32 mm |
| Connection standard | FLANGE, DIN-EN OR ANSI |
| Connection type | Butt weld |
| Contains batteries | No |
| Enclosure rating IP | IP55 |
| EU RoHS compliance | Out of scope |
| Frequency [Hz] | 60 Hz |
| Max. purger electr conn points | 8 |
| Max. Working Pressure [bar] | 40 bar |
| Packing format | Single pack |
| Parts included | Bolts for flange Gasket Screws for top cover Welding flange |
| Product accessories | Air purger accessories |
| Product Language | English |
| Product version | 01 |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Cobalt dichloride (CAS no. 7646-79-9) Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6) Lead (CAS no. 7439-92-1) |
| Refrigerants | R717 |
| SCIP dossier no. | 199fbd16-89a6-4156-ad8a-6f23feecd0c7 |
| SCIP dossier product name | IPS8 CE-LAM |
| Serviceable | Air purger spare parts |
| Software version | 4.13 |
| Supply voltage [V] AC | 230 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
