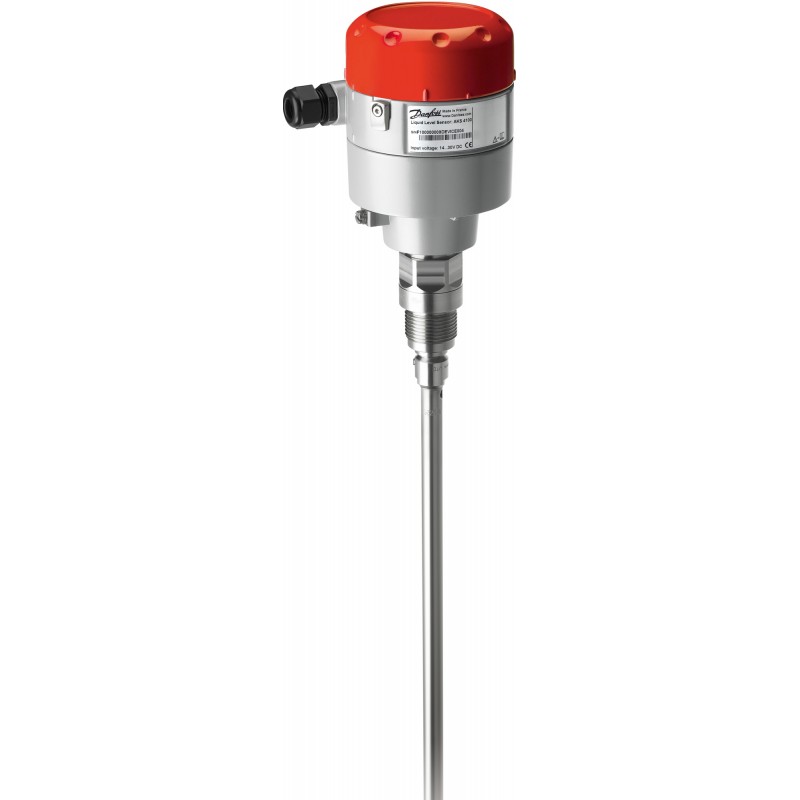

084H4525 DANFOSS REFRIGERATION Liquid level sensor, AKS 4100 U, Coaxial version

Name: 084H4525 DANFOSS REFRIGERATION Liquid level sensor, AKS 4100 U, Coaxial version
Brand: DANFOSS REFRIGERATION
SKU: DAO084H4525
Price: 5331.22 USD
Availability: OutOfStock

Reference: 084H4525

Manufacturer: DANFOSS REFRIGERATION

Description:

Liquid level sensor, AKS 4100 U, Coaxial version

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
Reviews

Guarantee, repair and return.

Unit Price: 4.762,48 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Design: Coaxial version, Parts included: HMI not included, Connection size [in]: 3/4, Connection type: NPT, Insertion length [mm]: 762, Supply voltage [V] DC: 14 - 30

Product details

Gross weight	6.908 Kilogram
Net weight	4 Kilogram
Volume	66.768 Liter
EAN	5702428415040

Type	AKS 4100 U
Product group	Sensors
Product Name Description	Liquid level sensor

Gross weight	6.908 Kilogram
Net weight	4 Kilogram
Volume	66.768 Liter
EAN	5702428415040
Type	AKS 4100 U
Product group	Sensors
Product Name Description	Liquid level sensor

Ambient temperature range [°C] [max]	80 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	176 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	CE LLC CDC TYSK
CE mark	Yes
China RoHS compliance	Yes with exemptions
China RoHS exemption clause	7.1 7.2
Connection size [in]	3/4
Connection type	NPT
Contains batteries	No
Design	Coaxial version
Enclosure rating IP	IP67
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(b)
Insertion length [in]	30 in
Insertion length [mm]	762 mm
Load resistance max. [Ohm]	500 Ohm
Max. Working Pressure [bar]	100 bar
Max. Working Pressure [psig]	1450 psig

Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Packing format	Single pack
Parts included	HMI not included
Power consumption [W]	0.7 W
Product accessories	Liq. level switch accessories
Product description	Liquid Level Sensor
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Diboron trioxide (B2O3, CAS no. 1303-86-2) Lead titanium zirconium oxide (CAS no. 12626-81-2)
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A
SCIP dossier no.	c3da0d4e-d473-4a23-8cd7-b50446d6c214
SCIP dossier product name	AKS 4000
Serviceable	Liq. level switch spare parts
Supply voltage [V] DC [max]	30 V
Supply voltage [V] DC [min]	14 V
Temperature range [°C] [max]	100 °C
Temperature range [°C] [min]	-60 °C
Temperature range [°F] [max]	212 °F
Temperature range [°F] [min]	-76 °F

Ambient temperature range [°C] [max]	80 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	176 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	CE LLC CDC TYSK
CE mark	Yes
China RoHS compliance	Yes with exemptions
China RoHS exemption clause	7.1 7.2
Connection size [in]	3/4
Connection type	NPT
Contains batteries	No
Design	Coaxial version
Enclosure rating IP	IP67
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(b)
Insertion length [in]	30 in
Insertion length [mm]	762 mm
Load resistance max. [Ohm]	500 Ohm
Max. Working Pressure [bar]	100 bar
Max. Working Pressure [psig]	1450 psig
Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Packing format	Single pack
Parts included	HMI not included
Power consumption [W]	0.7 W
Product accessories	Liq. level switch accessories
Product description	Liquid Level Sensor
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Diboron trioxide (B2O3, CAS no. 1303-86-2) Lead titanium zirconium oxide (CAS no. 12626-81-2)
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A
SCIP dossier no.	c3da0d4e-d473-4a23-8cd7-b50446d6c214
SCIP dossier product name	AKS 4000
Serviceable	Liq. level switch spare parts
Supply voltage [V] DC [max]	30 V
Supply voltage [V] DC [min]	14 V
Temperature range [°C] [max]	100 °C
Temperature range [°C] [min]	-60 °C
Temperature range [°F] [max]	212 °F
Temperature range [°F] [min]	-76 °F
